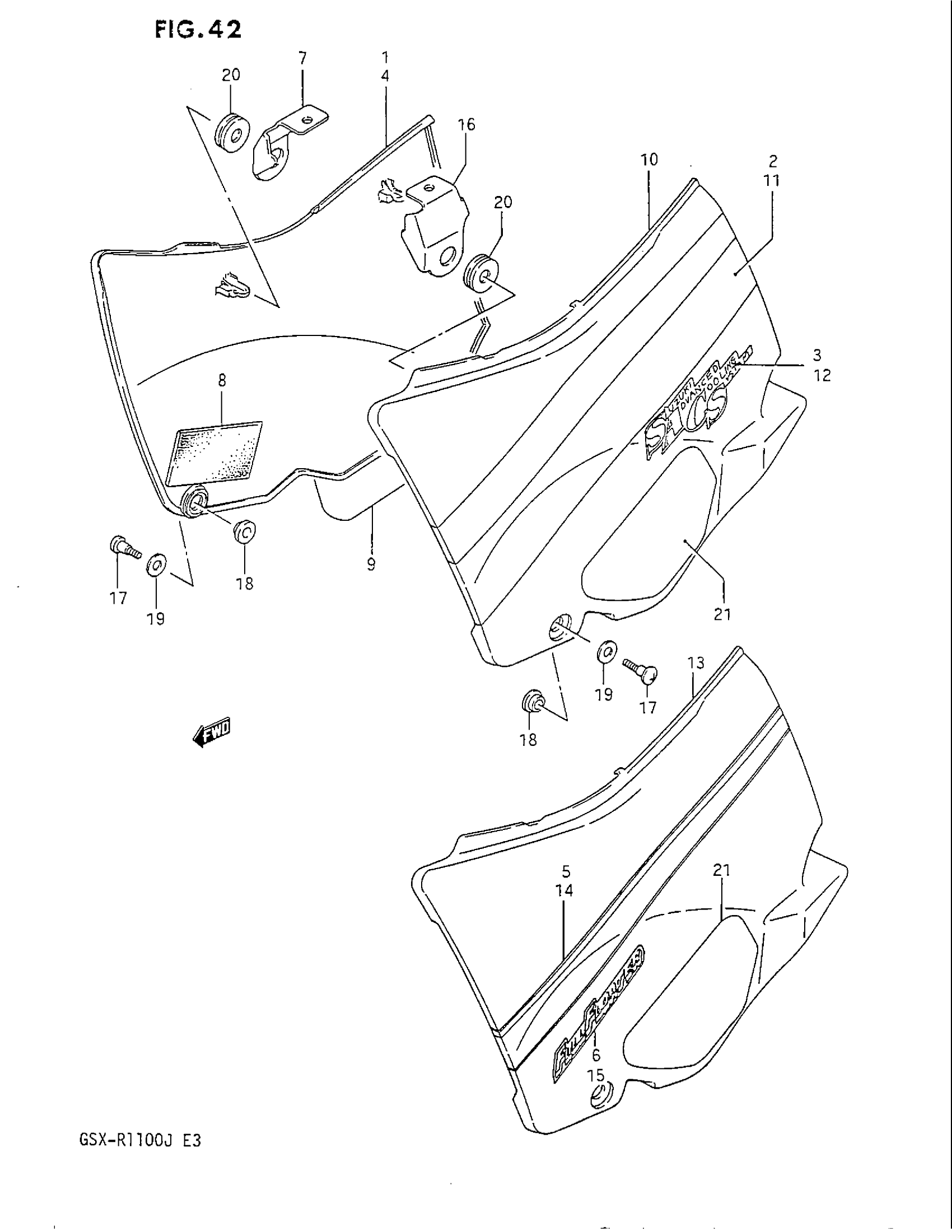

Suzuki GSX-R1100 (1988) FRAME COVER (MODEL G/H) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE/BLUE) | MODEL G

47110-06B00-8JV

Unavailable

1

COVER, FRAME RH (RED/BLUE) | MODEL G; Includes Item(s) 2 - 3

47110-06B00-8JW

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL G FOR 8JV

68130-06B00-8KA

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL G FOR 8JW

68130-06B00-8KB

Unavailable

3

EMBLEM | MODEL G

68131-27A00-7VR

Unavailable

4

COVER, FRAME RH (BLACK/RED) | MODEL H

47110-06B10-9HD

Unavailable

4

COVER, FRAME RH (BLUE/WHITE) | MODEL H; Includes Item(s) 5 - 6

47110-06B10-9HJ

Unavailable

5

TAPE SET, FRAME COVER RH | MODEL H FOR 9HD

68130-27A30-9HU

Unavailable

5

TAPE SET, FRAME COVER RH | MODEL H FOR 9HJ

68130-27A30-9HT

Unavailable

6

EMBLEM, FULL FLOATER | MODEL H FOR 9HD

68235-40A10-60K

Unavailable

6

EMBLEM, FULL FLOATER | MODEL H FOR 9HJ

68235-40A10-95K

Unavailable

7

HOLDER, FRAME COVER RH | MODEL G This part replaces 47141-06B00.

47141-06B01

Unavailable

7

HOLDER, FRAME COVER RH | MODEL H

47141-06B01

Unavailable

8

RUBBER

47161-27A00

Unavailable

9

PROTECTOR, LH This part replaces 47261-06B00.

47261-27A00

Unavailable

10

COVER, FRAME LH (WHITE/BLUE) | MODEL G

47210-06B00-8JV

Unavailable

10

COVER, FRAME LH (RED/BLUE) | MODEL G; Includes Item(s) 11 - 12

47210-06B00-8JW

Unavailable

11

TAPE SET, FRAME COVER LH | MODEL G FOR 8JV

68140-06B00-8KA

Unavailable

11

TAPE SET, FRAME COVER LH | MODEL G FOR 8JW

68140-06B00-8KB

Unavailable

12

EMBLEM | MODEL G

68131-27A00-7VR

Unavailable

13

COVER, FRAME LH (BLACK/RED) | MODEL H

47210-06B10-9HD

Unavailable

13

COVER, FRAME LH (BLUE/WHITE) | MODEL H; Includes Item(s) 14 - 15

47210-06B10-9HJ

Unavailable

14

TAPE SET, FRAME COVER LH | MODEL H FOR 9HD

68140-27A30-9HU

Unavailable

14

TAPE SET, FRAME COVER LH | MODEL H FOR 9HJ

68140-27A30-9HT

Unavailable

15

EMBLEM, FULL FLOATER | MODEL H FOR 9HD

68235-40A10-60K

Unavailable

15

EMBLEM, FULL FLOATER | MODEL H FOR 9HJ

68235-40A10-95K

Unavailable

16

HOLDER, FRAME COVER LH | MODEL G This part replaces 47171-06B00.

47171-06B01

Unavailable

16

HOLDER, FRAME COVER LH | MODEL H

47171-06B01

Unavailable

17

SCREW

09139-06044

$4.60

18

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

19

CUSHION

09320-08043

Unavailable

20

CUSHION

09320-08018

$3.04

21

PROTECTOR, LH

47261-27A00

Unavailable
