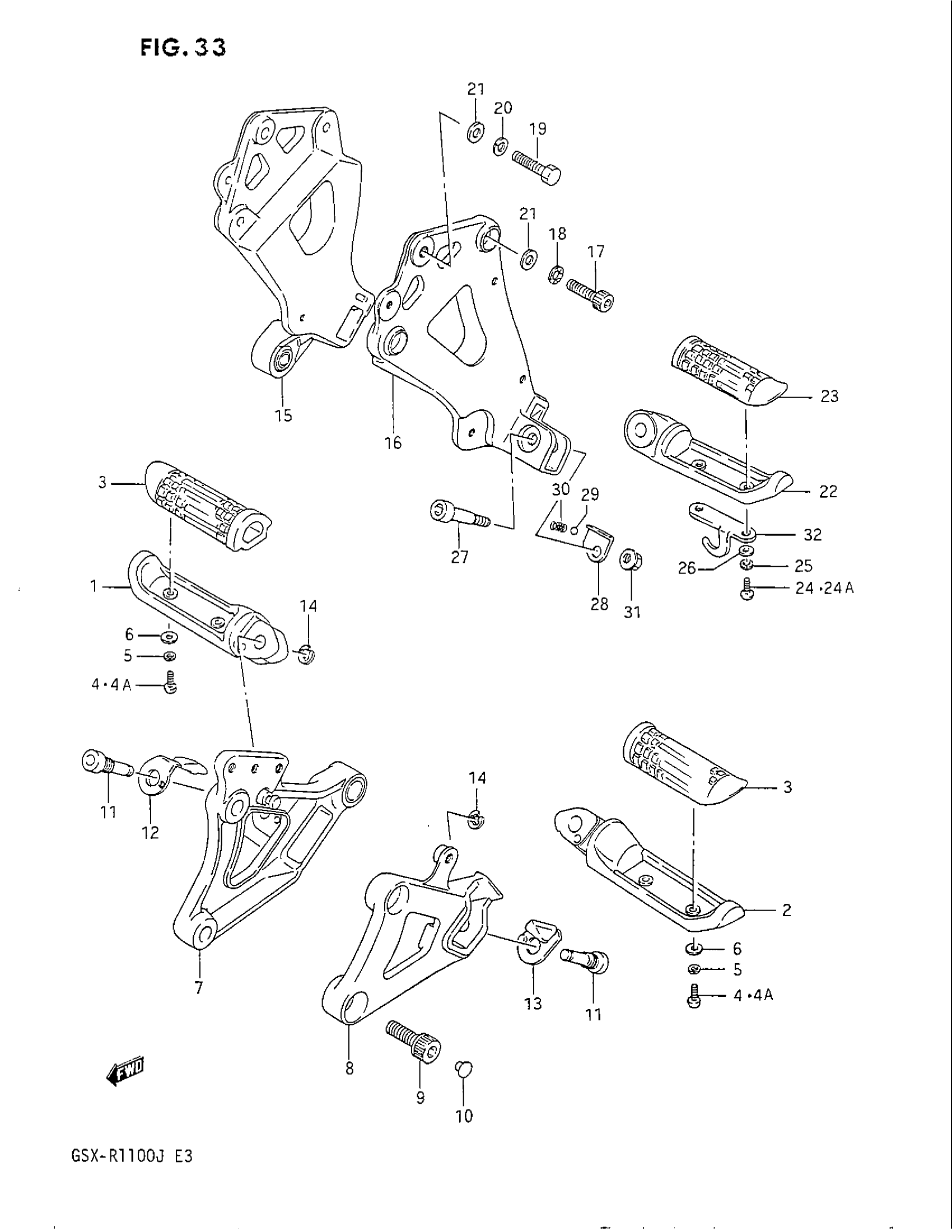

Suzuki GSX-R1100 (1988) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH

43501-06B00

Unavailable

2

FOOTREST ASSY, FRONT LH

43502-06B00

Unavailable

3

RUBBER, FRONT FOOTREST

43550-06B00

Unavailable

4

SCREW This part replaces 02112-05208.

02112-05207

$1.97

4A

SCREW This part replaces 02112-05168.

02112-05167

$1.97

5

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

6

WASHER This part replaces 08322-21057.

08322-01057

$2.13

7

BRACKET, FOOTREST RH

43510-27A00

Unavailable

8

BRACKET, FOOTREST LH

43522-27A00

Unavailable

9

BOLT This part replaces 07110-10258.

07130-10257

$4.60

10

CAP

43575-34500

$1.72

11

BOLT, FRONT FOOTREST

43529-27A00

Unavailable

12

CUSHION, FRONT FOOTREST RH

43580-06B00

Unavailable

13

CUSHION, FRONT FOOTREST LH

43590-06B00

$11.25

14

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

15

BRACKET, FOOTREST RH | MODEL G This part replaces 43810-27A00.

43810-27A01

Unavailable

15

BRACKET, FOOTREST RH | MODEL H/J

43810-27A01

Unavailable

16

BRACKET, FOOTREST LH | MODEL G This part replaces 43821-27A00.

43821-27A01

Unavailable

16

BRACKET, FOOTREST LH | MODEL H/J

43821-27A01

Unavailable

17

BOLT This part replaces 07110-06257.

07130-06257

$3.16

18

WASHER This part replaces 09164-06009.

09164-06013

Unavailable

19

BOLT, REAR This part replaces 01107-06307.

01500-06307

$2.48

20

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

21

WASHER This part replaces 08322-21067.

08322-01067

$2.13

22

FOOTREST ASSY, PILLION RH

43601-06B00

Unavailable

22

FOOTREST ASSY, PILLION LH

43602-06B00

Unavailable

23

RUBBER, PILLION FOOTREST

43610-06B00

Unavailable

24

SCREW

09125-05066

$1.65

24A

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

25

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

26

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

27

BOLT

43642-04A00

Unavailable

28

PLATE,SPRING ST This part replaces 43635-04A00.

43635-04A0V

Unavailable

28

PLATE, SPRING STOP LH

43735-04A00

Unavailable

29

BALL This part replaces 06112-07004.

06111-07004

$1.49

30

SPRING

09440-05003

$1.49

31

NUT This part replaces 08319-31065.

08319-3106A

$2.03

32

HOOK This part replaces 43619-06B00.

43619-27A00

Unavailable

32

HOOK This part replaces 43629-06B00.

43619-27A00

Unavailable
