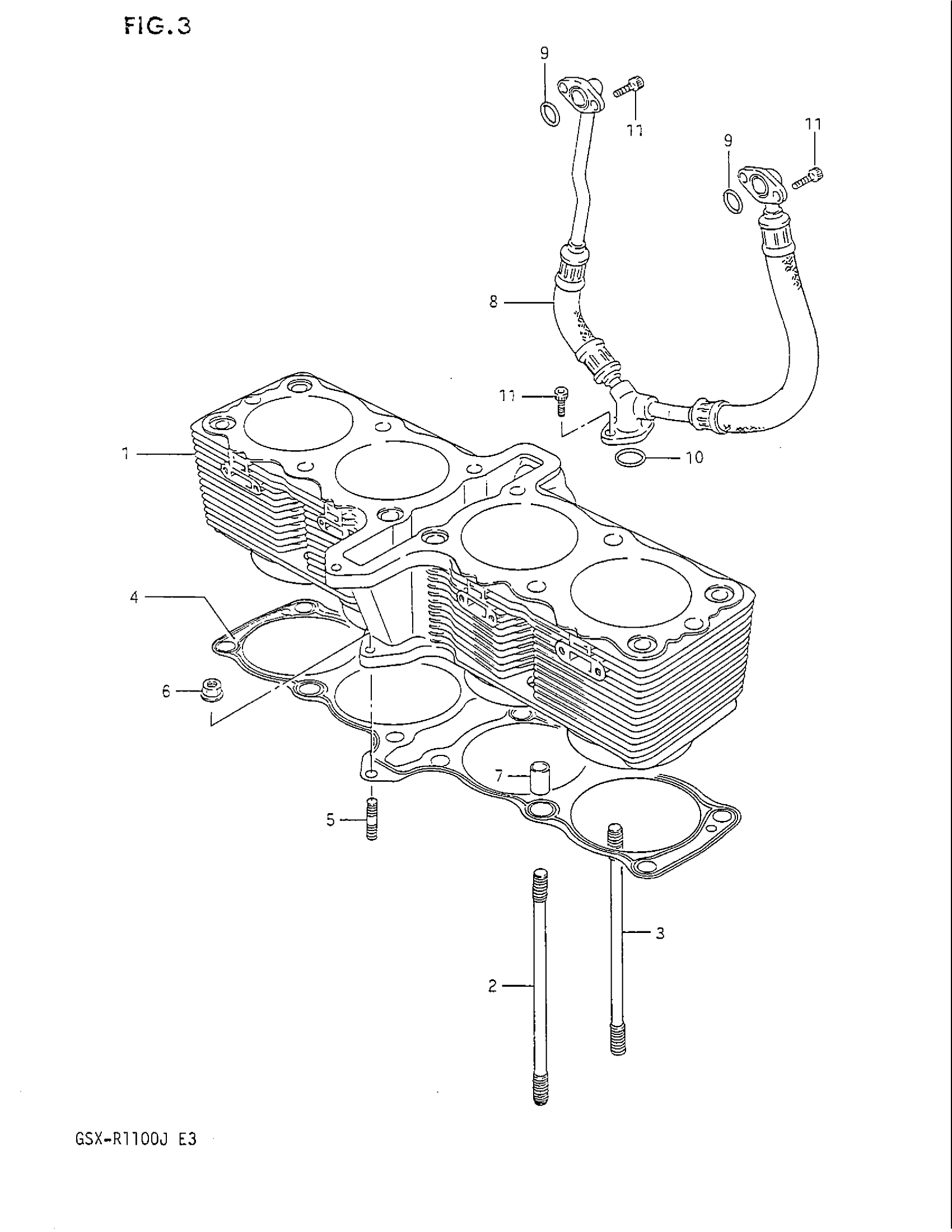

Suzuki GSX-R1100 (1988) CYLINDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | OTHER THAN CALIFORNIA This part replaces 11210-06B01.

11210-06B04

Unavailable

1

(CA) CYLINDER | CALIFORNIA ONLY

11210-06B11

Unavailable

2

STUD BOLT (10X164) This part replaces 09108-10081.

09108-10145

$13.28

3

STUD BOLT (10X157) This part replaces 09108-10080.

09108-10099

$15.90

4

GASKET, CYLINDER This part replaces 11241-27A02.

11241-27A04

$17.36

5

STUD BOLT This part replaces 01421-06205.

01421-0620A

$1.91

6

NUT This part replaces 08316-16064.

08316-1006B

$2.50

7

PIN This part replaces 09206-13006.

09206-13017

$7.61

8

HOSE, OIL HEAD COOLER | MODEL G

11328-06B00

Unavailable

8

HOSE, OIL HEAD COOLER | MODEL H/J This part replaces 11328-48B00.

11328-48B04

$307.15

9

O RING

09280-14011

$4.77

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

11

BOLT This part replaces 07110-06165.

07130-0616B

$2.39
