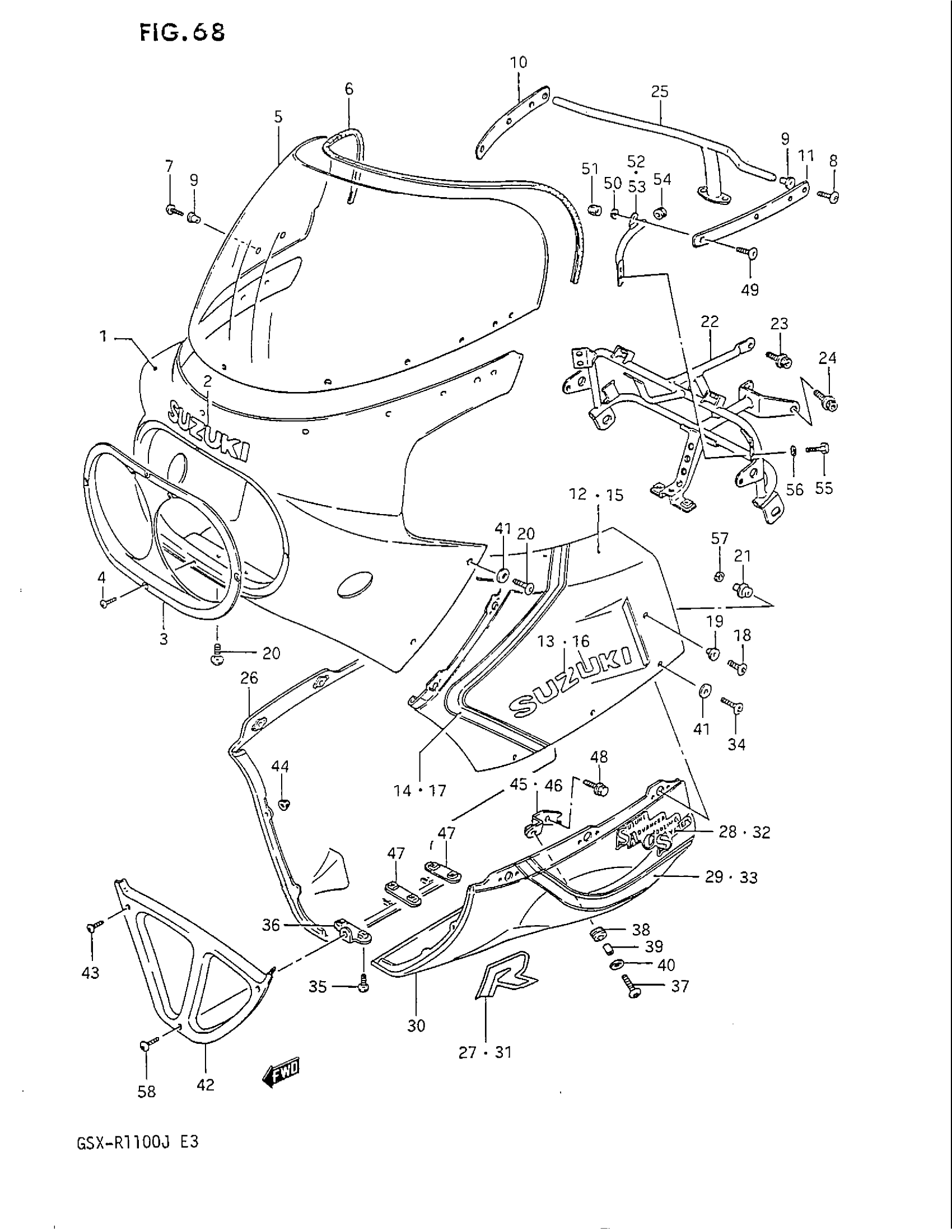

Suzuki GSX-R1100 (1988) COWLING (MODEL H) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 94400-06B20-9HJ.

94400-06X00-9HJ

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 94400-06B20-9HD.

94400-06X00-9HD

Unavailable

2

EMBLEM | FOR 9HJ This part replaces 68271-04A00-064.

68271-04A10-22R

Unavailable

2

EMBLEM | FOR 9HD This part replaces 68271-04A00-742.

68271-04A10-742

Unavailable

3

COVER, FRONT (BLACK) | FOR 9HJ This part replaces 94435-27A00-34R.

94435-27A00-291

Unavailable

3

COVER, FRONT (BLACK) | FOR 9HD This part replaces 94435-27A00-13Z.

94435-27A00-291

Unavailable

4

SCREW (4x12) This part replaces 03541-04125.

03541-0412A

$1.49

5

WINDOW, COWLING This part replaces 94611-06B01.

94611-27A01

Unavailable

6

MOLDING This part replaces 94631-27A00.

94631-49300

$18.86

7

SCREW (5X14)

09139-05025

$2.05

8

SCREW, REAR (5X18)

09139-05032

$1.89

9

NUT This part replaces 94619-27A00.

09159-05048

$7.22

10

PLATE, MIRROR RH

94529-27A00

Unavailable

11

PLATE, MIRROR LH

94539-27A00

Unavailable

12

NO DESCRIPTION AVAILABLE | FOR 9HJ This part replaces 94430-06B30-9HJ.

94430-06B20-9HJ

Unavailable

12

NO DESCRIPTION AVAILABLE | FOR 9HD; Includes Item(s) 13 - 14 This part replaces 94430-06B30-9HD.

94430-06B20-9HD

Unavailable

13

EMBLEM

68111-43400-064

Unavailable

14

TAPE SET, RH | FOR 9HJ

68680-27A50-9HT

Unavailable

14

TAPE SET, RH | FOR 9HD

68680-27A50-9HU

Unavailable

15

NO DESCRIPTION AVAILABLE | FOR 9HJ This part replaces 94440-06B30-9HJ.

94440-06B20-9HJ

Unavailable

15

NO DESCRIPTION AVAILABLE | FOR 9HD; Includes Item(s) 16 - 17 This part replaces 94440-06B30-9HD.

94440-06B20-9HD

Unavailable

16

EMBLEM

68111-43400-064

Unavailable

17

TAPE SET, LH | FOR 9HJ

68690-27A50-9HT

Unavailable

17

TAPE SET, LH | FOR 9HD

68690-27A50-9HU

Unavailable

18

SCREW, REAR (6X12)

09139-06027

$2.16

19

WASHER

09169-06033

$1.50

20

SCREW (6X16)

09139-06030

$3.70

21

CUSHION

94570-04A00

$21.91

22

BRACE, FRONT

94510-06B00

Unavailable

23

BOLT This part replaces 07120-08205.

07120-0820A

$3.14

24

BOLT This part replaces 07120-08165.

07120-0816A

$3.05

25

BRACE, REAR

94530-06B00

Unavailable

26

NO DESCRIPTION AVAILABLE | FOR 9HJ This part replaces 94470-06B10-9HJ.

94470-06B10-13L

Unavailable

26

COVER, LOWER RH (BLACK/RED) | FOR 9HD; Includes Item(s) 27 - 29

94470-06B10-9HD

Unavailable

27

EMBLEM | FOR 9HJ

68261-27A00-8KE

Unavailable

27

EMBLEM | FOR 9HD

68261-27A00-7JS

Unavailable

28

EMBLEM | FOR 9HJ This part replaces 68131-27A00-9HT.

68131-27A00-7VR

Unavailable

28

EMBLEM | FOR 9HD

68131-27A00-9EW

Unavailable

29

TAPE SET, LOWER | FOR 9HJ

68680-27A60-9HT

Unavailable

29

TAPE SET, LOWER | FOR 9HD

68680-27A60-9HU

Unavailable

30

NO DESCRIPTION AVAILABLE | FOR 9HJ This part replaces 94480-06B30-9HJ.

94480-06B30-13L

Unavailable

30

COVER, LOWER LH (BLACK/RED) | FOR 9HD; Includes Item(s) 31 - 33

94480-06B30-9HD

Unavailable

31

EMBLEM | FOR 9HJ

68261-27A00-8KE

Unavailable

31

EMBLEM | FOR 9HD

68261-27A00-7JS

Unavailable

32

EMBLEM | FOR 9HJ This part replaces 68131-27A00-9HT.

68131-27A00-7VR

Unavailable

32

EMBLEM | FOR 9HD

68131-27A00-9EW

Unavailable

33

TAPE SET, LOWER | FOR 9HJ

68690-27A60-9HT

Unavailable

33

TAPE SET, LOWER | FOR 9HD

68690-27A60-9HU

Unavailable

34

SCREW, UPPER (6X16)

09139-06030

$3.70

35

SCREW, RH & LH (6X16)

09139-06039

$2.19

36

BRACE, LOWER

94490-06B00

Unavailable

37

SCREW (6X20)

09139-06028

$3.70

38

CUSHION

09320-09016

$1.97

39

SPACER This part replaces 09180-06152.

09180-06262

$2.55

40

WASHER (6.5X18X1)

09160-06056

$1.72

41

WASHER This part replaces 09161-07005.

09161-07006

$2.15

42

NO DESCRIPTION AVAILABLE | FOR 9HJ This part replaces 94475-06B01-22R.

94475-06B01-13L

Unavailable

42

NO DESCRIPTION AVAILABLE | FOR 9HD This part replaces 94475-06B01-22P.

94475-06B01-13L

Unavailable

43

SCREW (5X14)

09139-05025

$2.05

44

NUT This part replaces 08316-26055.

08316-2005A

$2.19

45

BRACE, LOWER RH

94580-06B00

Unavailable

46

BRACE, LOWER LH

94590-06B00

Unavailable

47

BRACE, LOWER REAR

94493-06B00

Unavailable

48

BOLT This part replaces 01517-06128.

01550-06127

$2.30

49

SCREW (6X16)

09139-06030

$3.70

50

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

51

NUT This part replaces 08313-11065.

08313-1006A

$1.84

52

BRACE, MIRROR RH

94550-06B00

Unavailable

53

BRACE, MIRROR LH

94560-06B00

Unavailable

54

PLUG(OD:12) This part replaces 09250-08008.

09250-08021

$2.58

55

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

56

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

57

LOCK WASHER This part replaces 08321-31064.

08321-0106A

$1.84

58

SCREW (6X16)

09139-06030

$3.70
