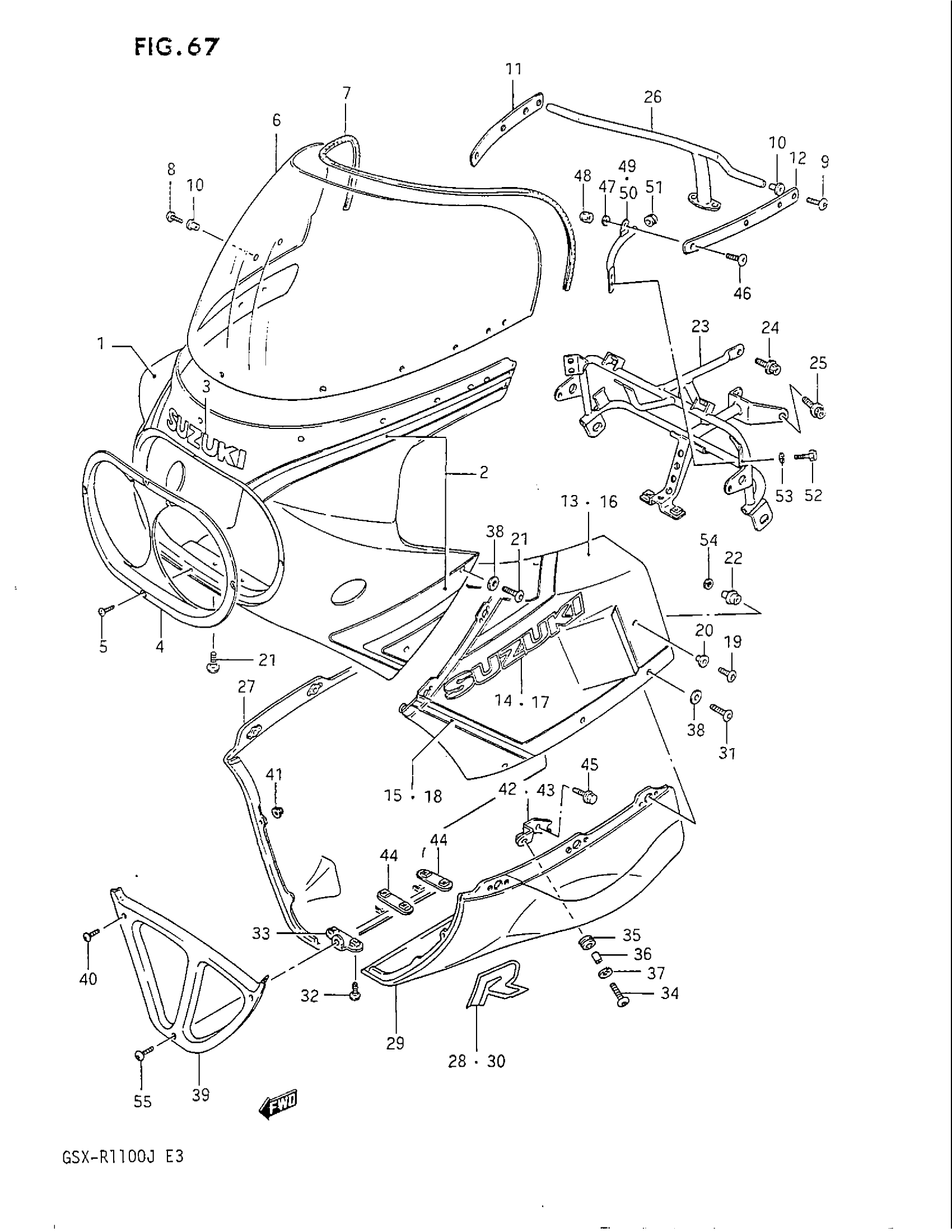

Suzuki GSX-R1100 (1988) COWLING (MODEL G) Diagram

BODY ASSY, COWLING

94400-06810-8JV

Unavailable

BODY ASSY, COWLING | Includes Item(s) 2 - 3

94400-06820-8JW

Unavailable

TAPE SET | FOR 8JV

68190-06B01-8KA

Unavailable

TAPE SET | FOR 8JW

68190-06B01-8KB

Unavailable

EMBLEM | FOR 8JV This part replaces 68271-04A00-07G.

68271-04A10-07G

Unavailable

EMBLEM | FOR 8JW This part replaces 68271-04A00-742.

68271-04A10-742

Unavailable

COVER, FRONT (BLACK)

94435-27A00-291

Unavailable

SCREW (4x12) This part replaces 03541-04125.

03541-0412A

$1.49

WINDOW, COWLING This part replaces 94611-06B01.

94611-27A01

Unavailable

MOLDING This part replaces 94631-27A00.

94631-49300

$18.86

SCREW (5X14)

09139-05025

$2.05

SCREW, REAR (5X18)

09139-05032

$1.89

NUT This part replaces 94619-27A00.

09159-05048

$7.22

PLATE, MIRROR RH

94529-27A00

Unavailable

PLATE, MIRROR LH

94539-27A00

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 94430-06B10-8JV.

94430-06B00-8JW

Unavailable

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 15 This part replaces 94430-06B10-8JW.

94430-06B00-8JW

Unavailable

EMBLEM | FOR 8JV

68111-31310-8KD

Unavailable

EMBLEM | FOR 8JW

68111-31310-65G

Unavailable

TAPE SET, RH | FOR 8JV

68680-06B01-8KA

Unavailable

TAPE SET, RH | FOR 8JW

68680-06B01-8KB

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 94440-06B10-8JV.

94440-06B00-8JV

Unavailable

NO DESCRIPTION AVAILABLE | Includes Item(s) 17 - 18 This part replaces 94440-06B10-8JW.

94440-06B00-8JW

Unavailable

EMBLEM | FOR 8JV

68111-31310-8KD

Unavailable

EMBLEM | FOR 8JW

68111-31310-65G

Unavailable

TAPE SET, LH | FOR 8JV

68690-06B01-8KA

Unavailable

TAPE SET, LH | FOR 8JW

68690-06B01-8KB

Unavailable

SCREW, REAR (6X12)

09139-06027

$2.16

WASHER

09169-06033

$1.50

SCREW (6X16)

09139-06030

$3.70

CUSHION

94570-04A00

$21.91

BRACE, FRONT

94510-06B00

Unavailable

BOLT This part replaces 07120-08205.

07120-0820A

$3.14

BOLT This part replaces 07120-08165.

07120-0816A

$3.05

BRACE, REAR

94530-06B00

Unavailable

COVER, LOWER RH | FOR 8JV

94470-06B01-8KK

Unavailable

COVER, LOWER RH | FOR 8JW; Includes Item(s) 28 - 28

94470-06B01-8KL

Unavailable

EMBLEM | FOR 8KK

68261-27A00-8KE

Unavailable

EMBLEM | FOR 8KL This part replaces 68261-27A00-8KC.

68261-27A00-60D

Unavailable

COVER, LOWER LH | FOR 8JV

94480-06B10-8KK

Unavailable

COVER, LOWER LH | FOR 8JW; Includes Item(s) 30 - 30

94480-06B10-8KL

Unavailable

EMBLEM | FOR 8KK This part replaces 68261-27A10-8KE.

68261-27A00-8KE

Unavailable

EMBLEM | FOR 8KL This part replaces 68261-27A10-8KC.

68261-27A00-60D

Unavailable

SCREW, UPPER (6X16)

09139-06030

$3.70

SCREW, RH & LH (6X16)

09139-06039

$2.19

BRACE, LOWER

94490-06B00

Unavailable

SCREW (6X20)

09139-06028

$3.70

CUSHION

09320-09016

$1.97

SPACER This part replaces 09180-06152.

09180-06262

$2.55

WASHER (6.5X18X1)

09160-06056

$1.72

WASHER

09160-06094

$1.49

NO DESCRIPTION AVAILABLE This part replaces 94475-06B01-23Z.

94475-06B01-13L

Unavailable

SCREW (5X14)

09139-05025

$2.05

NUT This part replaces 08316-26055.

08316-2005A

$2.19

BRACE, LOWER RH

94580-06B00

Unavailable

BRACE, LOWER LH

94590-06B00

Unavailable

BRACE, LOWER REAR

94493-06B00

Unavailable

BOLT This part replaces 01517-06128.

01550-06127

$2.30

SCREW (6X16)

09139-06030

$3.70

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

NUT This part replaces 08313-11065.

08313-1006A

$1.84

BRACE, MIRROR RH

94550-06B00

Unavailable

BRACE, MIRROR LH

94560-06B00

Unavailable

PLUG(OD:12) This part replaces 09250-08008.

09250-08021

$2.58

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

LOCK WASHER This part replaces 08321-31064.

08321-0106A

$1.84

SCREW (6X16)

09139-06030

$3.70
