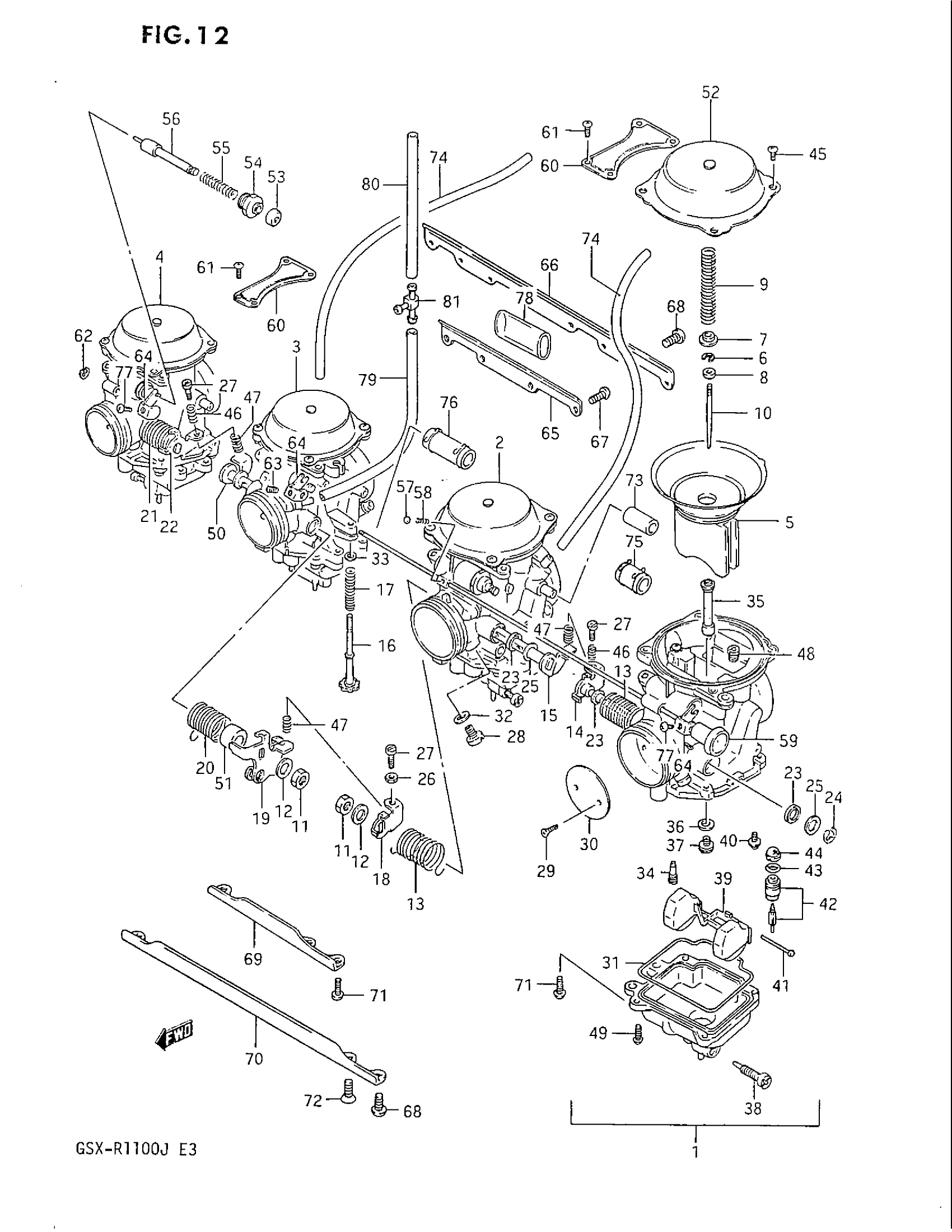

Suzuki GSX-R1100 (1988) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | MODEL G/HOTHER THAN CALIFORNIA This part replaces 13201-06B10.

13201-06B70

Unavailable

1

CARBURETOR ASSY, LH | MODEL JOTHER THAN CALIFORNIA

13201-06B70

Unavailable

1

(CA) CARBURETOR ASSY, LH | MODEL G/H CALIFORNIA ONLY

13201-06B20

Unavailable

1

(CA) CARBURETOR ASSY, LH | MODEL J CALIFORNIA ONLY

13201-06B50

Unavailable

2

CARBURETOR ASSY, ML | MODEL G/HOTHER THAN CALIFORNIA This part replaces 13202-06B10.

13202-06B70

Unavailable

2

CARBURETOR ASSY, ML | MODEL JOTHER THAN CALIFORNIA

13202-06B70

Unavailable

2

(CA) CARBURETOR ASSY, ML | MODEL G/H CALIFORNIA ONLY This part replaces 13202-06B20.

13202-06B50

Unavailable

2

(CA) CARBURETOR ASSY, ML | MODEL J CALIFORNIA ONLY

13202-06B50

Unavailable

3

CARBURETOR ASSY, MR | MODEL G/HOTHER THAN CALIFORNIA This part replaces 13203-06B10.

13203-06B70

Unavailable

3

CARBURETOR ASSY, MR | MODEL JOTHER THAN CALIFORNIA

13203-06B70

Unavailable

3

(CA) CARBURETOR ASSY, MR | MODEL G/H CALIFORNIA ONLY This part replaces 13203-06B20.

13203-06B50

Unavailable

3

(CA) CARBURETOR ASSY, MR | MODEL J CALIFORNIA ONLY

13203-06B50

Unavailable

4

CARBURETOR ASSY, RH | MODEL G/HOTHER THAN CALIFORNIA This part replaces 13204-06B10.

13204-06B70

Unavailable

4

CARBURETOR ASSY, RH | MODEL JOTHER THAN CALIFORNIA

13204-06B70

Unavailable

4

(CA) CARBURETOR ASSY, RH | MODEL G/H CALIFORNIA ONLY

13204-06B20

Unavailable

4

(CA) CARBURETOR ASSY, RH | MODEL J CALIFORNIA ONLY; Includes Item(s) 5 - 56

13204-06B50

Unavailable

5

DIAPHRAGM ASSY This part replaces 13500-06B00.

13500-06B01

Unavailable

6

CLIP, NEEDLE This part replaces 13415-47070.

13394-10010

$5.45

7

RING

13382-42A00

$4.48

8

RING

13387-47010

$7.22

9

SPRING

13417-42A00

$6.79

10

NEEDLE, JET (5D29-1)

13383-06B10

Unavailable

11

NUT | ML,MR

08310-21086

Unavailable

12

WASHER | ML,MR

13606-47070

Unavailable

13

SPRING | LH,ML

13573-28A10

Unavailable

14

SHAFT ASSY | LH

13550-28A30

Unavailable

15

SHAFT ASSY | ML

13550-28A00

Unavailable

16

ADJUSTER | MR

13567-28A10

Unavailable

17

SPRING | MR

13271-28A10

Unavailable

18

LEVER | ML

13553-28A00

Unavailable

19

LEVER | MR

13555-28A00

Unavailable

20

SPRING | MR

13573-28A00

Unavailable

21

SPRING | RH

13573-28A20

Unavailable

22

SHAFT ASSY | RH

13550-28A20

Unavailable

23

SEAL This part replaces 13651-51010.

13651-51011

$2.20

24

E RING | LH,RH

13617-44080

$2.90

25

WASHER

13557-47070

$3.59

26

NUT | ML

13582-95216

Unavailable

27

SCREW | LH,ML,RH

13267-52012

Unavailable

28

SCREW | OTHER THAN CALIFORNIA

13605-73000

$11.95

29

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

30

VALVE, THROTTLE (125)

13551-06B10

Unavailable

31

O RING

13251-42A00

$9.03

32

WASHER | OTHER THAN CALIFORNIA

13249-78100

$2.92

33

WASHER | MR

13432-47090

$2.28

34

JET, PILOT (32.5)

09492-32006

$11.32

35

JET, NEEDLE (P-2)

09494-00535

Unavailable

36

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

37

JET, MAIN (130)

09491-26011

$11.38

38

SCREW, DRAIN

13247-28A00

$7.32

39

FLOAT

13250-28A00

$30.87

40

SCREW

13602-43410

$2.92

41

PIN

13254-92311

$2.07

42

VALVE ASSY, NEEDLE

13370-44500

$50.98

43

O RING This part replaces 66263-99050.

13374-35C00

$5.99

44

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

45

SCREW | MODEL G/H LH/MR:2,ML/RH:3MODEL J This part replaces 02112-04085.

02112-0408A

$1.49

46

SPRING | LH,RH

13271-28A00

Unavailable

47

SPRING | LH,ML,RH This part replaces 13268-96110.

13268-96111

$4.35

48

JET, PILOT AIR (135)

09493-27001

$16.87

48

(CA) JET, PILOR AIR (115) | MODEL J CALIFORNIA ONLY

09493-23001

Unavailable

49

SCREW This part replaces 13602-27A10.

02112-04127

$2.23

50

SHAFT ASSY | MR

13550-28A10

Unavailable

51

RING | MR

13574-28A00

$4.13

52

COVER ASSY This part replaces 13502-28A00.

13502-09F00

Unavailable

53

.CAP, STARTER VALVE

13682-31210

$4.37

54

.HOLDER, GUIDE

13418-44080

$10.00

55

SPRING

13417-43010

$4.34

56

PLUNGER ASSY

13411-05320

$26.80

57

BALL

13596-93010

$4.43

58

SPRING This part replaces 13434-06B00.

13434-43010

$6.47

59

SHAFT ASSY, STARTER

13410-28A00

Unavailable

60

PLATE | MODEL G/H

13628-28A00

Unavailable

61

SCREW | MODEL G/H This part replaces 02112-04085.

02112-0408A

$1.49

62

E RING | MODEL G/H This part replaces 13298-49000.

13415-38300

$2.08

63

SCREW This part replaces 13605-49330.

13605-47070

Unavailable

64

LEVER This part replaces 13422-28A00.

13422-48B10

Unavailable

65

PLATE | MODEL G/H

13628-28A10

Unavailable

66

PLATE | MODEL J

13628-19C10

Unavailable

67

SCREW | MODEL G/H This part replaces 02112-05128.

02112-05127

$1.97

68

SCREW | MODEL J This part replaces 02112-05128.

02112-05127

$1.97

69

PLATE | MODEL G/H

13628-28A20

Unavailable

70

PLATE | MODEL J

13628-19C00

Unavailable

71

SCREW | MODEL G/H This part replaces 02112-05168.

02112-05167

$1.97

72

SCREW | MODEL J This part replaces 02122-05148.

09126-05005

Unavailable

73

HOSE(6.5X11.5X6 | L:400->18 This part replaces 13683-49160.

09355-65001-600

$12.00

74

HOSE,5X10X600 | ML:425->400MR:425 This part replaces 13684-28A00.

44421-13ER0

$10.06

74

(CA) HOSE | MODEL J CALIFORNIA ONLY

13680-06B50

Unavailable

75

HOSE ASSY This part replaces 13680-27A00.

13218-03D01

Unavailable

76

HOSE ASSY This part replaces 13680-28A00.

13680-28A01

Unavailable

77

SCREW This part replaces 13605-34390.

13605-09300

Unavailable

78

HOSE This part replaces 13684-28A10.

13684-43440

Unavailable

79

HOSE | MODEL J CALIFORNIA ONLY This part replaces 13683-06A20.

09352-50901-600

$8.06

80

HOSE | MODEL J CALIFORNIA ONLY This part replaces 13683-06A20.

09352-50901-600

$8.06

81

.NIPPLE | MODEL J CALIFORNIA ONLY

13685-48B00

$12.15
