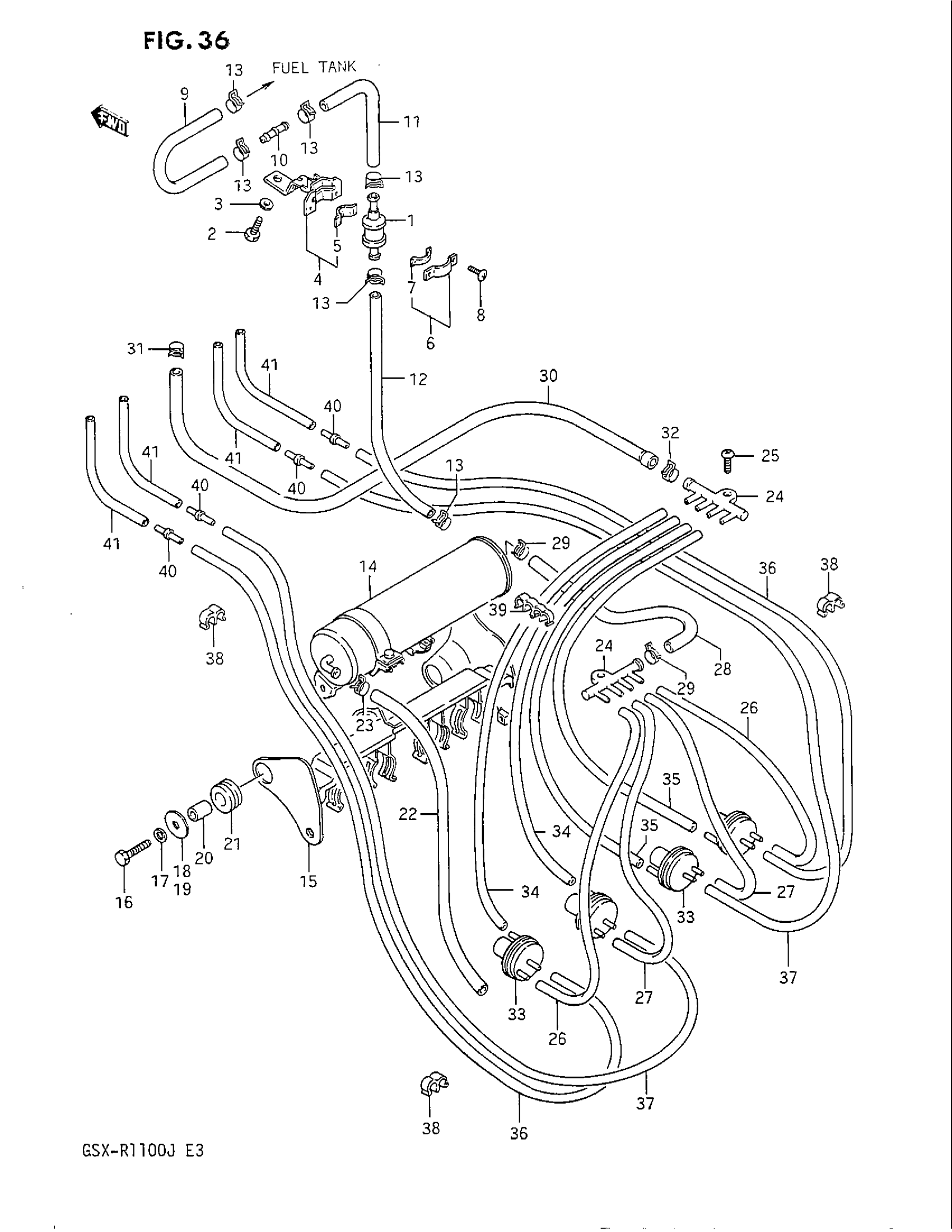

Suzuki GSX-R1100 (1988) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

2

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

3

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

4

PLATE, BREATHER VALVE NO.1 | Includes Item(s) 5

44890-06B00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 7

44892-24A00

$4.52

7

CUSHION (10X30X2)

44894-24A00

$1.72

8

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

9

HOSE, TANK JOINT PIPE

09343-05371

Unavailable

10

PIPE, HOSE JOINT

09364-06005

$5.72

11

HOSE, NO.1 This part replaces 09343-05405.

09343-05403

Unavailable

12

HOSE, BREATHER VALVE/CANISTER | MODEL G

09343-05399

Unavailable

12

HOSE, CANISTER & CARB | MODEL H This part replaces 09343-05328.

09355-54115-00B

Unavailable

12

HOSE, CANISTER & CARB | MODEL J This part replaces 09358-54116-25A.

09355-54115-00B

Unavailable

13

CLIP This part replaces 09401-11410.

09401-11413

$2.26

14

CANISTER ASSY

17210-28A00

Unavailable

15

BRACKET, CANISTER

44880-06B00

Unavailable

16

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

17

LOCK WASHER This part replaces 08321-31064.

08321-0106A

$1.84

18

WASHER (6.5X24X1.2) This part replaces 09160-06076.

09160-06114

$2.03

19

WASHER This part replaces 09160-06063.

09160-06054

$1.62

20

SPACER

09180-06120

$2.32

21

CUSHION This part replaces 09320-11012.

09320-11008

$2.60

22

HOSE, CANISTER DRAIN

09354-70133-185

Unavailable

23

CLIP This part replaces 09401-12406.

09401-11415

$2.23

24

SEPARATOR VALVE

09367-04006

Unavailable

25

.SCREW This part replaces 02112-05166.

02112-0516A

$1.49

26

HOSE, RH (L:470) This part replaces 44411-28A00.

44415-28A00

Unavailable

27

HOSE, RH (L:470) This part replaces 44416-28A00.

44415-28A00

Unavailable

28

HOSE, CANISTER/SEPARATOR JOIN | MODEL G

09343-07193

Unavailable

28

HOSE,6.5X11.5X6 | MODEL H This part replaces 09343-07161.

44421-12FR0

$12.33

28

HOSE,6.5X11.5X6 | MODEL J This part replaces 09354-70123-170.

44421-12FR0

$12.33

29

CLIP This part replaces 09401-12406.

09401-11415

$2.23

30

HOSE, CANISTER & PURGE | L:270->200 This part replaces 09359-54111-270.

09359-54111-600

$25.80

31

CLIP This part replaces 09401-11410.

09401-11413

$2.26

32

CLIP This part replaces 09401-12406.

09401-11415

$2.23

33

VALVE, VACUUM CONTROL

44250-28A00

Unavailable

34

HOSE, RH (L:470) This part replaces 44419-06B00.

44415-28A00

Unavailable

35

HOSE, RH (L:470) This part replaces 44418-06B00.

44415-28A00

Unavailable

36

HOSE, RH (L:470) This part replaces 44417-06B00.

44415-28A00

Unavailable

37

HOSE, RH (L:470) This part replaces 44412-28A00.

44415-28A00

Unavailable

38

CLAMP

09408-00033

$2.83

39

CLAMP

09408-00035

Unavailable

40

PIPE, 2 WAY This part replaces 45424-24A00.

09367-04008

Unavailable

41

HOSE, CARBURETOR PURGE

09343-03079

Unavailable
