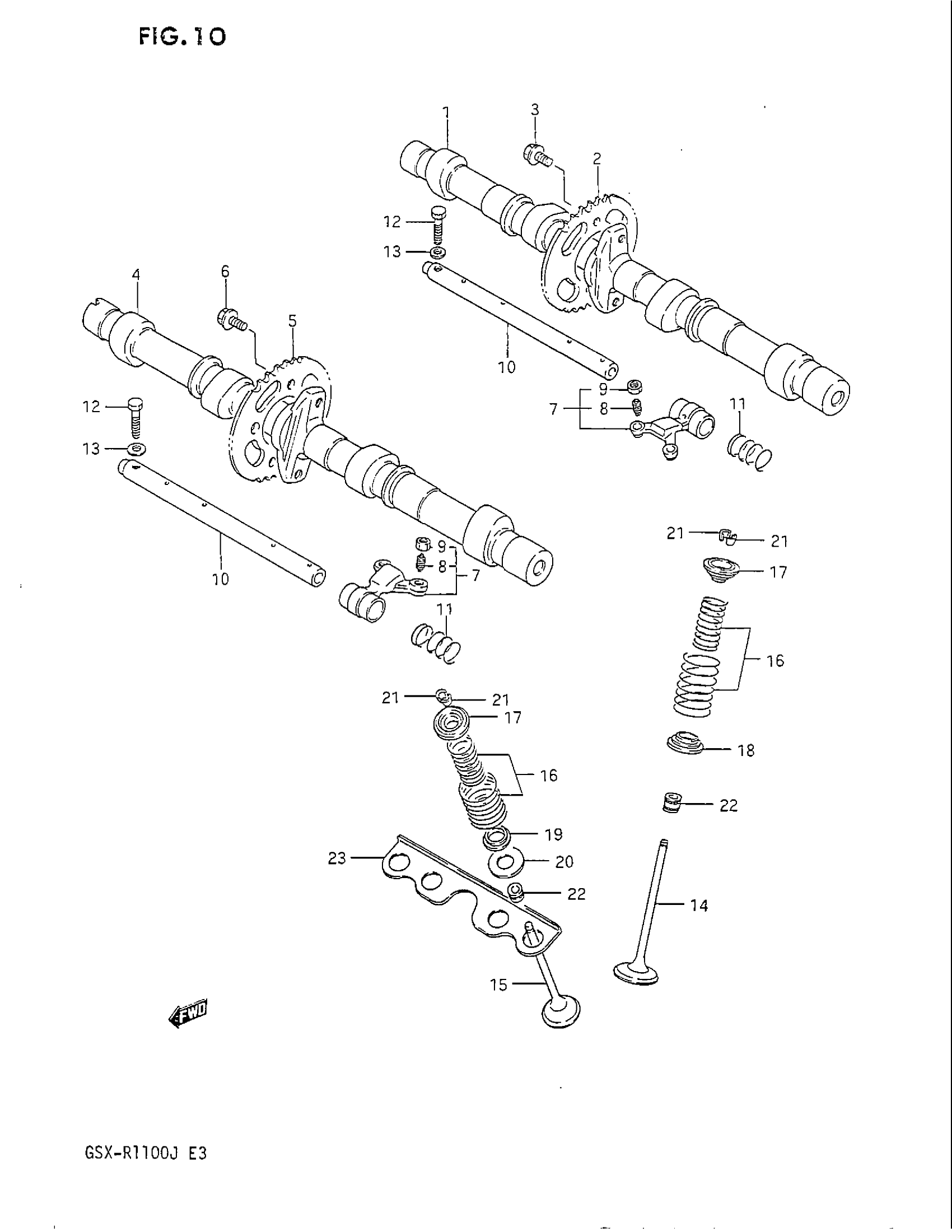

Suzuki GSX-R1100 (1988) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE This part replaces 12711-06B02.

12711-06B90

Unavailable

2

SPROCKET, CAM SHAFT

12741-06B00

Unavailable

3

BOLT

09103-07001

$2.43

4

CAM SHAFT, EXHAUST This part replaces 12721-06B02.

12721-06B90

Unavailable

5

SPROCKET, CAM SHAFT

12741-06B00

Unavailable

6

BOLT

09103-07001

$2.43

7

ARM, VALVE ROCKER | Includes Item(s) 8 - 9 This part replaces 12840-27A00.

12840-27A01

$76.68

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

10

SHAFT, VALVE ROCKER ARM

12861-27A00

Unavailable

11

SPRING

09440-13014

$2.45

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

13

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

14

VALVE, INTAKE

12911-06B02

$47.72

15

VALVE, EXHAUST

12912-06B00

$77.00

16

SPRING SET, VALVE

12920-06B00

$13.81

17

RETAINER, SPRING

12931-27A01

$8.42

18

SEAT,VALVE SPRING This part replaces 12933-27A00.

12933-81400

$5.17

19

SEAT, SPRING EXHAUST This part replaces 12934-27A00.

12934-27A01

$5.36

20

SEAT, EXHAUST OUTER

12935-27A00

$3.25

21

COTTER, VALVE

12932-27A00

$2.26

22

OIL SEAL

09289-05011

$6.32

23

PLATE This part replaces 11137-27A00.

11137-27A02

Unavailable
