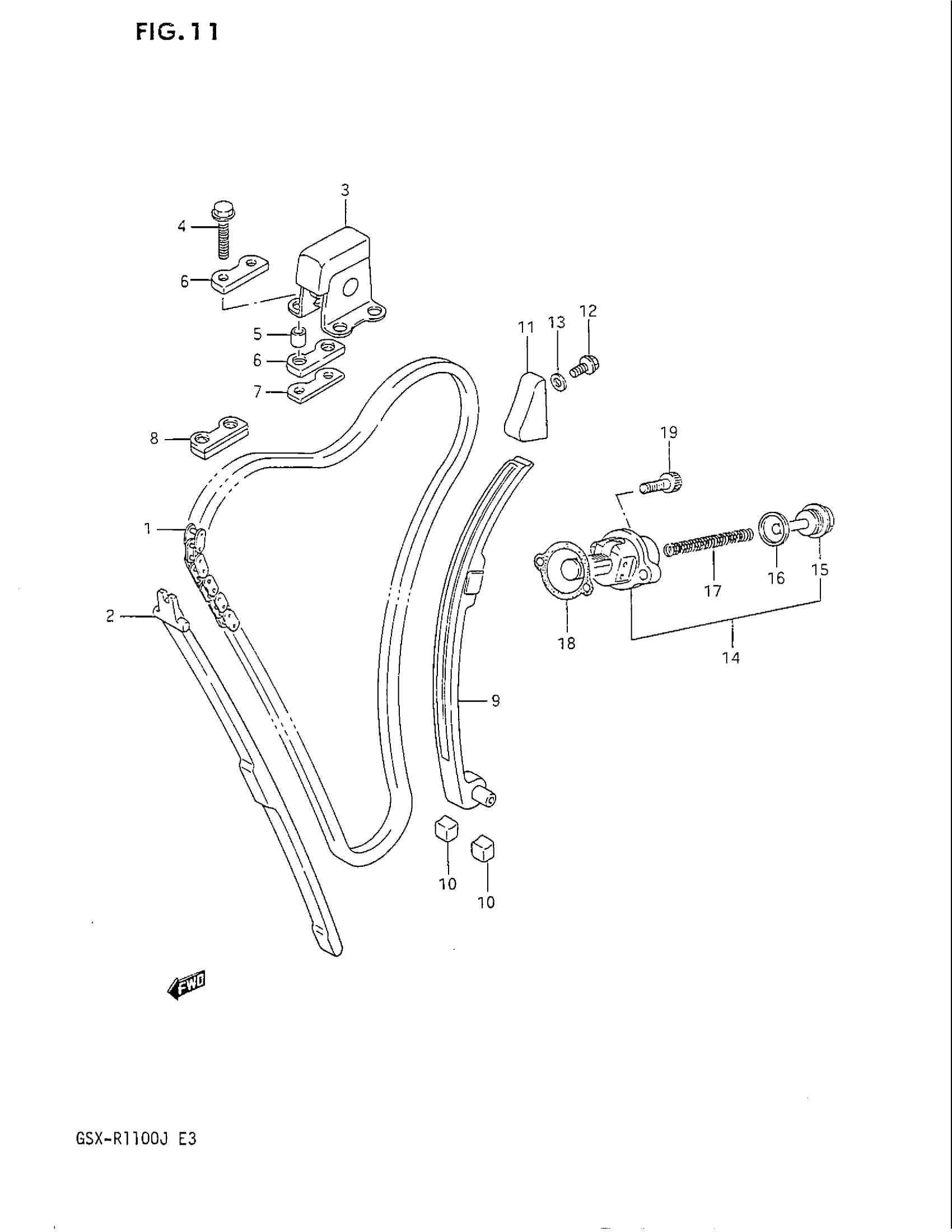

Suzuki GSX-R1100 (1988) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT This part replaces 12760-06B00.

12760-40C01

$142.74

2

GUIDE, CAM CHAIN NO.1

12771-06B01

Unavailable

3

IDLER, CAM CHAIN This part replaces 12780-06B00.

12780-06B01

Unavailable

4

BOLT This part replaces 01517-06307.

01550-06307

$2.69

5

SPACER This part replaces 09180-06167.

09180-06286

$2.50

6

CUSHION (T:5.2) | ~E.NO.108794E.NO.108795~ This part replaces 12788-27A00.

12788-48B01

Unavailable

7

PLATE, IDLER | ~E.NO.108794

12789-06B00

Unavailable

8

CUSHION (T:8.6) | E.NO.108795~ This part replaces 12788-06B10.

12788-48B11

Unavailable

9

TENSIONER, CAM CHAIN

12810-06B02

Unavailable

10

CUSHION

12814-34200

$5.58

11

GUIDE, CAM CHAIN NO.2

12791-06B01

Unavailable

12

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

13

GASKET

09168-06023

$2.35

14

NO DESCRIPTION AVAILABLE | Includes Item(s) 15 - 17 This part replaces 12830-06B00.

12830-48B03

Unavailable

15

PLUG

12834-27A00

Unavailable

16

GASKET

12832-27A00

$6.91

17

SPRING

12833-06B00

Unavailable

18

GASKET This part replaces 12837-27A00.

12837-27A10

$3.85

19

BOLT This part replaces 07110-06255.

07130-0625B

$3.04
