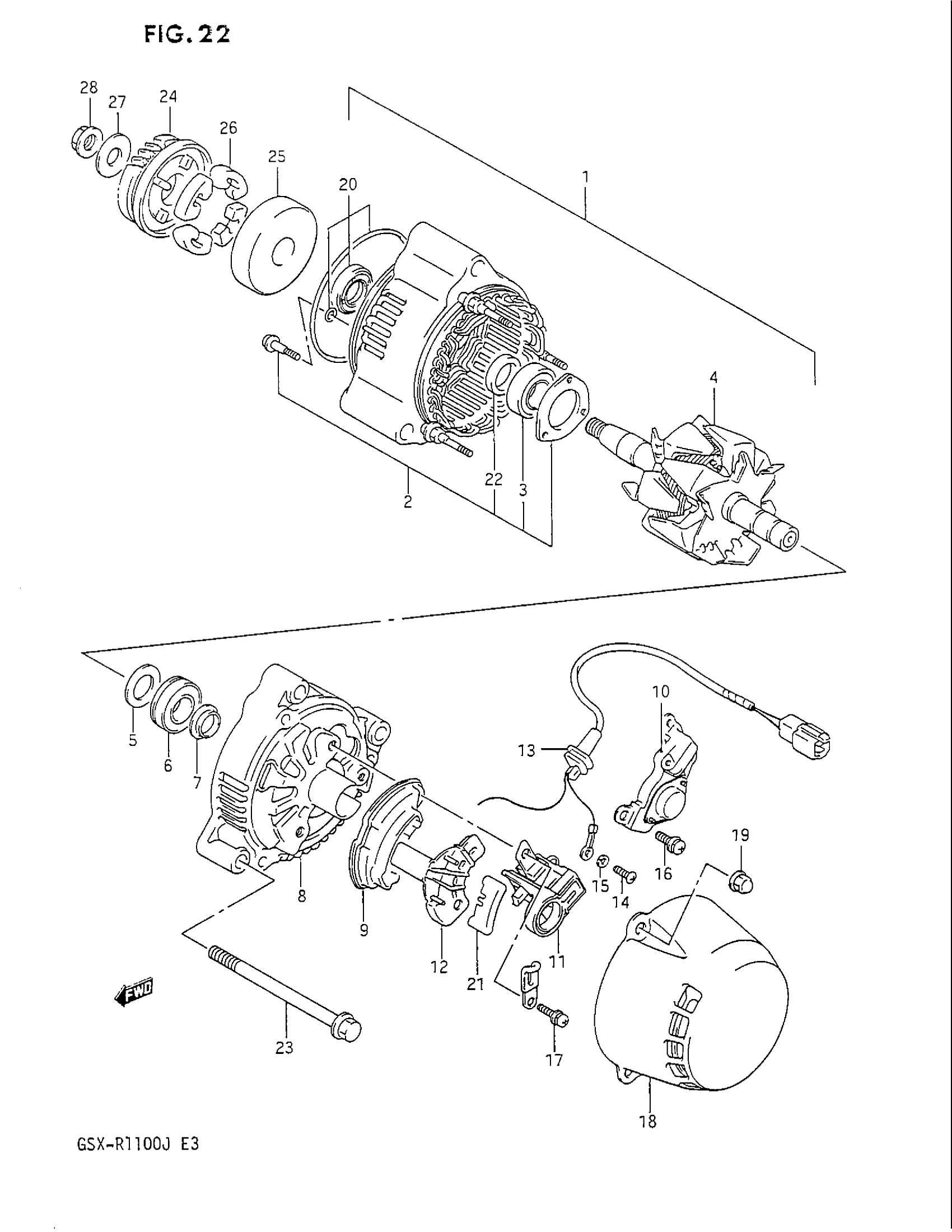

Suzuki GSX-R1100 (1988) ALTERNATOR (MODEL J) Diagram

#

Description
Price

1

ALTERNATOR ASSY | Includes Item(s) 2 - 22 This part replaces 31400-48B00.

31400-17C04

Unavailable

2

FRAME, DRIVE END

31580-48B00

Unavailable

3

BEARING

31612-06B00

Unavailable

4

ROTOR ASSY This part replaces 31710-48B00.

31710-48B04

Unavailable

5

COVER (1) This part replaces 31613-27A00.

31613-82610

Unavailable

6

BEARING

31612-48B00

$47.07

7

COVER (2)

31613-27A10

Unavailable

8

FRAME, END

31611-48B00

Unavailable

9

HOLDER, RECTIFIER

31621-27A00

Unavailable

10

REGULATOR

32500-27A00

Unavailable

11

HOLDER, BRUSH

31656-48B00

Unavailable

12

COVER, RECTIFIER This part replaces 31687-27A00.

31687-17E00

$6.88

13

LEAD WIRE

31480-48B00

Unavailable

14

SCREW This part replaces 02112-04086.

02112-0408A

$1.49

15

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

16

SCREW (5X17)

31688-27A00

Unavailable

17

SCREW (5X17) This part replaces 31688-06B00.

31688-27A00

Unavailable

18

COVER

31614-48B00

Unavailable

19

NUT This part replaces 31692-48B00.

08313-2005A

$2.42

20

OIL SEAL SET This part replaces 31780-48B00.

31780-27X50

$53.82

21

COVER, RECTIFIER This part replaces 31514-27A00.

31687-17E00

$6.88

22

SPACER

31776-06B00

Unavailable

23

BOLT This part replaces 01517-08905.

01550-0890B

$5.37

24

NO DESCRIPTION AVAILABLE This part replaces 22730-06B02.

22730-06B04

Unavailable

25

HOUSING DAMPER This part replaces 22733-27A03.

22733-27A05

Unavailable

26

DAMPER

21231-06B00

$4.64

27

WASHER

08211-10283

$3.78

28

NUT This part replaces 08316-26106.

08316-2010B

$3.43
