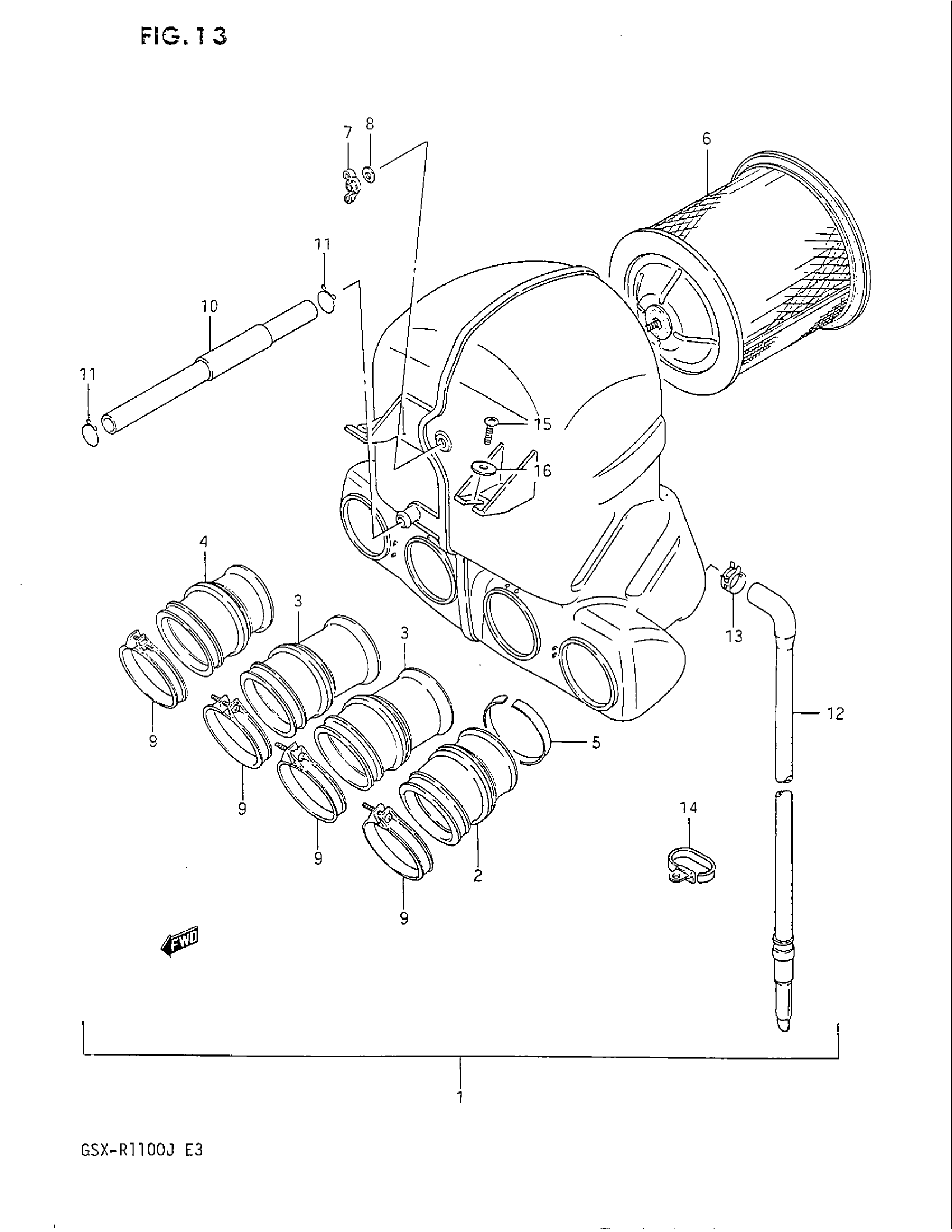

Suzuki GSX-R1100 (1988) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 13

13700-06B00

Unavailable

2

TUBE,OUTLET,L This part replaces 13881-06B00.

13881-06B01

$17.00

3

TUBE, OUTLET ML, MR

13882-06B00

Unavailable

4

TUBE, OUTLET RH

13883-06B00

Unavailable

5

RING, OUTLET

13885-45450

Unavailable

6

FILTER

13780-06B00

$64.09

7

NUT This part replaces 08317-12058.

08317-1205A

$2.53

8

WASHER This part replaces 08322-11058.

08322-01057

$2.13

9

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

10

TUBE, BREATHER

13850-06B00

Unavailable

11

CLIP

09401-14301

$2.35

12

TUBE,DRAIN This part replaces 13870-21447.

13870-21459

$23.68

13

CLAMP This part replaces 13825-43400.

09401-13417

$2.26

14

CLAMP, DRAIN TUBE

13879-27A01

Unavailable

15

SCREW This part replaces 02112-06208.

02112-06207

$1.78

16

WASHER This part replaces 09160-06007.

09160-06084

$1.78
