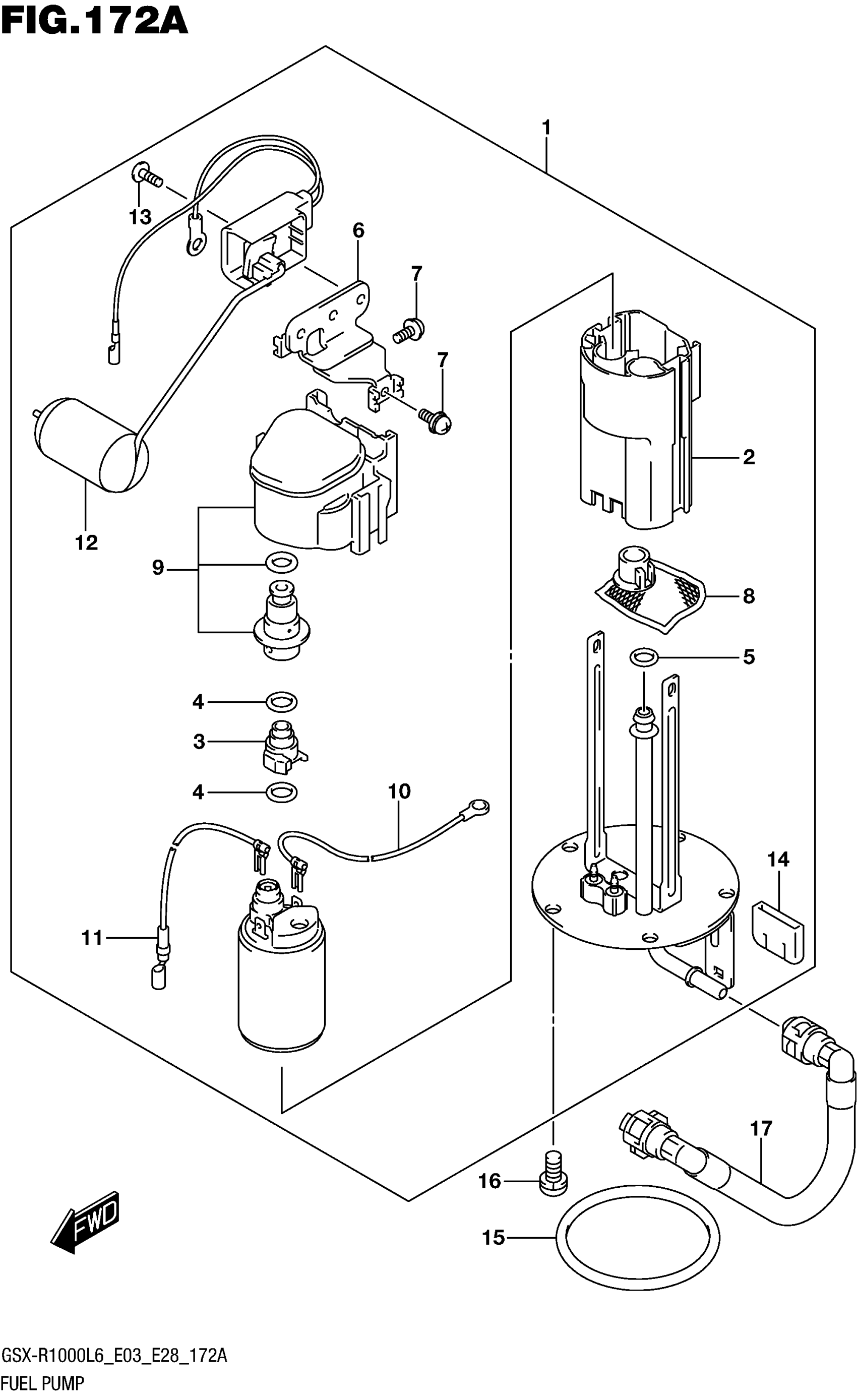

Suzuki GSX-R1000L6 (2016) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL

15100-47H20

$822.38

2

.CUP

15111-27G00

$47.88

3

.JOINT

15112-05H00

$31.73

4

.O RING

15113-05H00

$19.66

5

.O RING

15113-35F00

$8.52

6

.BRACKET, FUEL GAUGE

15181-47H00

Unavailable

7

.SCREW

15116-10F00

$6.30

8

.STRAINER,FUEL PUMP

15420-31J00

$46.87

9

.REGULATOR, FUEL

15610-14J00

$166.17

10

.WIRE, EARTH

15114-14J00

Unavailable

11

.WIRE,LEAD

15115-08J00

Unavailable

12

.GAUGE ASSY, FUEL LEVEL

34810-47H01

$255.22

13

.SCREW

15116-44H00

Unavailable

14

.CAP, STAY

15583-18H00

Unavailable

15

O-RING

15201-35F00

$26.41

16

BOLT

07120-0612A

$2.57

17

HOSE, FUEL

15810-47H20

$82.47
