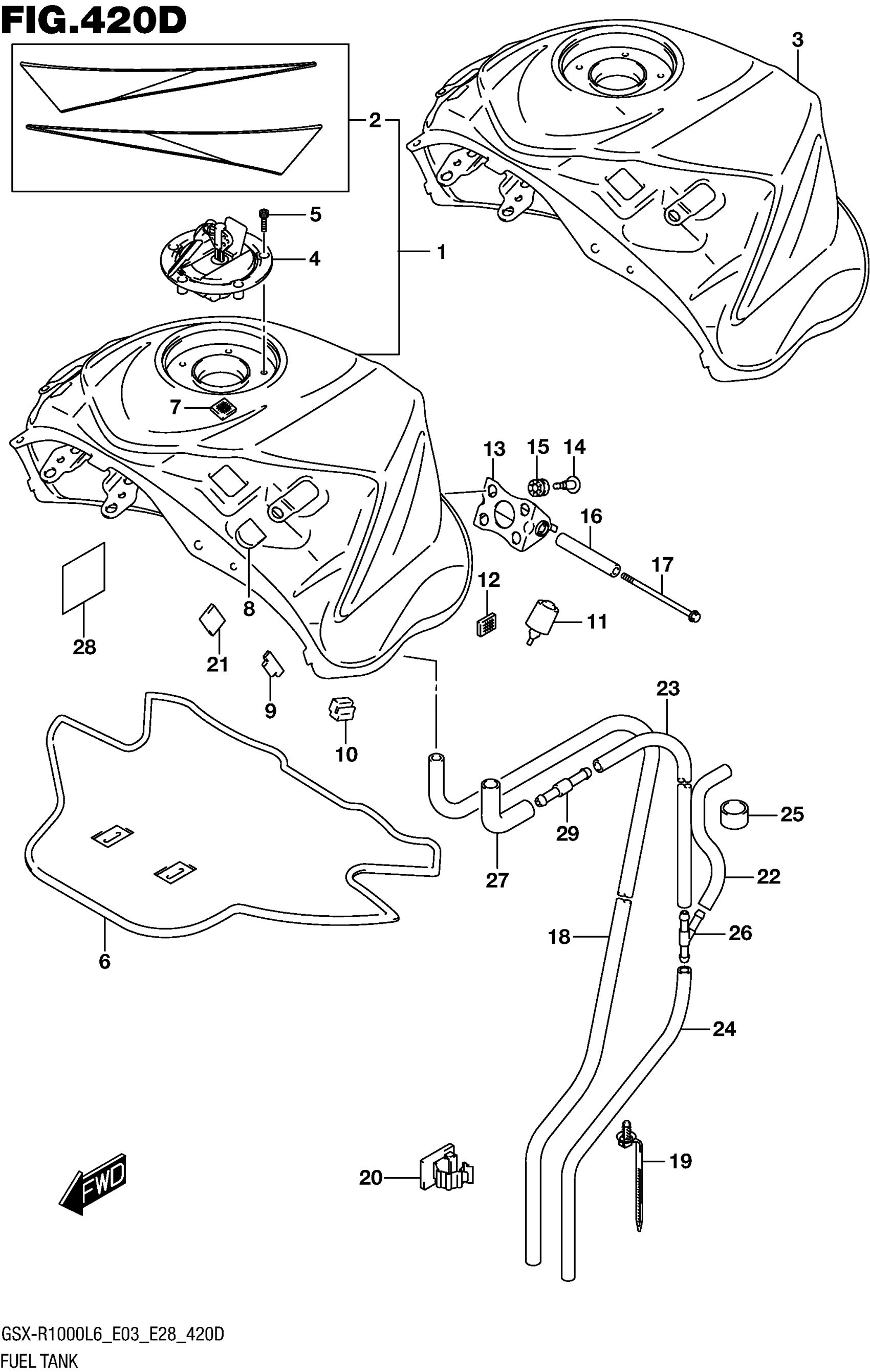

Suzuki GSX-R1000L6 (2016) FUEL TANK (GSX-R1000AL6 E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | FOR YSF

44100-47H30-YSF

$1,376.73

2

.TAPE SET, FUEL TANK | FOR YSF

68110-47H10-A3F

$76.23

3-1

TANK ASSY, FUEL (BLUE) | FOR AJP

44100-47H01-YKY

$1,191.70

3-2

TANK ASSY, FUEL (RED) | FOR JSP

44100-47H01-YVZ

$1,376.73

4

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$112.54

5

BOLT (5X20)

09106-05017

$2.80

6

SHIELD, FUEL TANK HEAT

44191-47H00

Unavailable

7

FASTENER, COVER FRONT

44572-44G00

$9.75

8

CUSHION

09329-18001

$1.97

9

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.71

10

CUSHION, FUEL TANK SIDE

44541-41G00

$5.71

11

CUSHION,FUEL TANK RR

44542-41G00

$7.36

12

FASTENER, COVER SIDE

44572-13G00

$10.59

13

BRACKET,FUEL TANK

44530-41G01

$45.77

14

SCREW (6X22)

09139-06191

$3.79

15

CUSHION

09320-08071

$3.16

16

SPACER, JOINT

44561-18G00

$16.22

17

BOLT (6X110)

09106-06119

$5.36

18

HOSE, DRAIN

44423-47H00

Unavailable

19

CLAMP (L:154)

09407-17403

$4.79

20

CLAMP

09403-14311

$5.05

21

CUSHION

61544-94500

$1.22

22

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$15.48

23

HOSE, FUEL TANK BRTHR NO.1

44424-47H00

Unavailable

24

HOSE,FUEL TANK This part replaces 44424-47H10.

44424-47H11

$9.38

25

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

26

3 WAY

09367-06007

$3.29

27

JOINT, FUEL HOSE

44451-47H00

$11.37

28

PROTECTOR, FUEL TANK

44283-40H00

Unavailable

29

JOINT

09367-06009

Unavailable

30

COLOR :

SPECIAL NOTE

Unavailable

30

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

30

:

SPECIAL NOTE

Unavailable

30

JSP=YVB(BLACK),YVZ(RED)

SPECIAL NOTE

Unavailable
