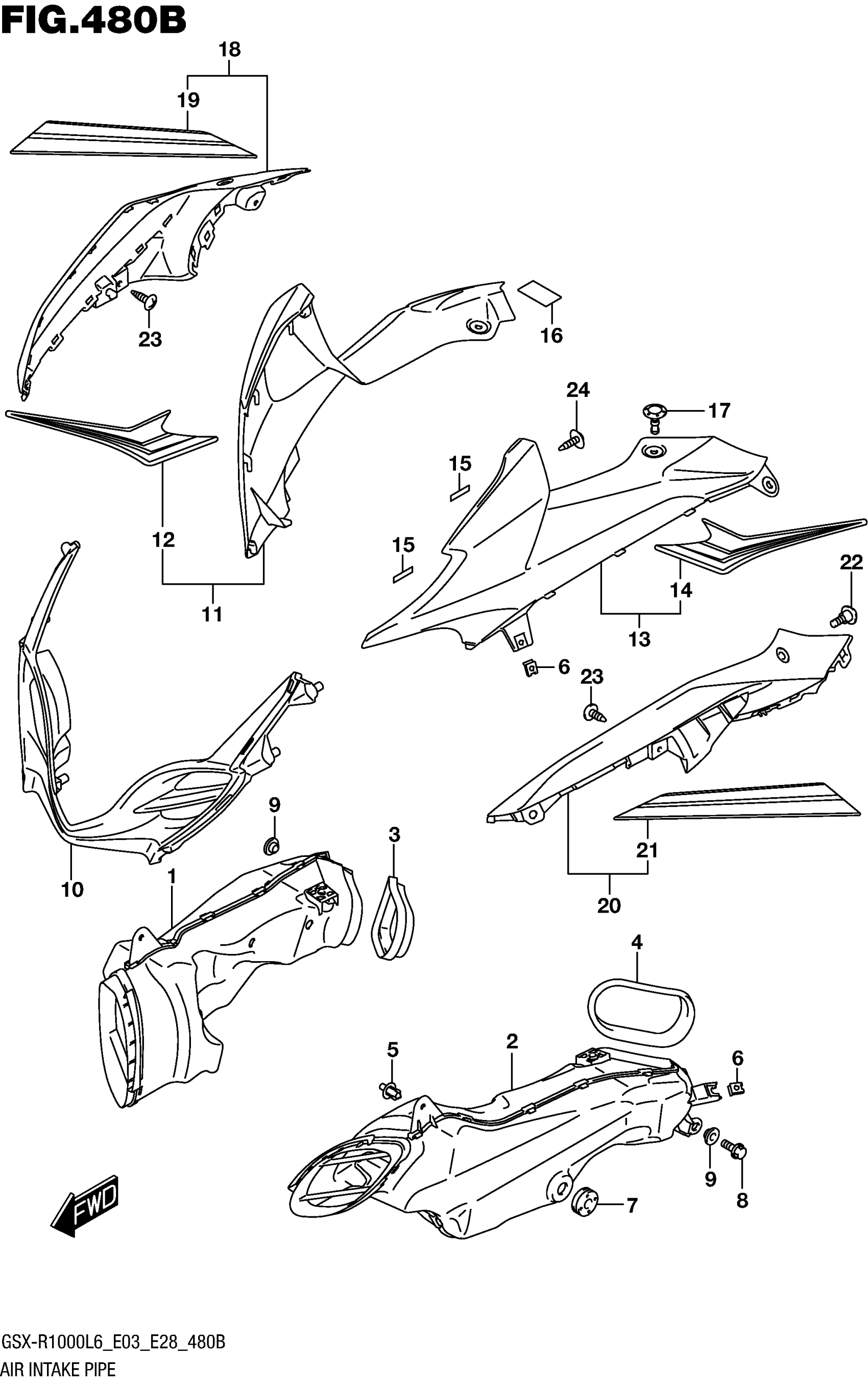

Suzuki GSX-R1000L6 (2016) AIR INTAKE PIPE (AJP,JSP) Diagram

#

Description
Price

1

PIPE, AIR INTAKE RH

94420-47H00

$137.98

2

PIPE, AIR INTAKE LH

94430-47H00

$140.58

3

MOLDING, RH

94423-47H00

$20.13

4

MOLDING, LH

94433-47H00

$19.78

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

NUT

09148-05052

$3.13

7

CUSHION

09320-08028

$2.82

8

BOLT

01550-0616A

$2.01

9

WASHER

09169-06082

$4.70

10

COVER, INTAKE FRONT (BLACK)

94671-47H10-YKV

$252.48

11-1

COVER, INTAKE RH (BLUE) | FOR AJP

94670-47H10-YKY

$207.17

11-2

COVER, INTAKE RH (RED) | FOR JSP

94670-47H10-YVZ

$205.17

12-1

.TAPE, INTAKE COVER RH | FOR YKY

68275-47H20-BAG

Unavailable

12-2

.TAPE, INTAKE COVER RH | FOR YVZ

68275-47H20-BAF

$23.10

13-1

COVER, INTAKE LH (BLUE) | FOR AJP

94680-47H10-YKY

$207.17

13-2

COVER, INTAKE LH (RED) | FOR JSP

94680-47H10-YVZ

$205.17

14-1

.TAPE, INTAKE COVER LH | FOR YKY

68276-47H20-BAG

$23.10

14-2

.TAPE, INTAKE COVER LH | FOR YVZ

68276-47H20-BAF

Unavailable

15

TAPE

94443-06G00

$3.11

16

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$2.91

17

CLIP

94479-35F00

$5.38

18-1

COWL, SIDE UPPER RH (WHITE) | FOR AJP

94450-47H00-YWW

$134.37

18-2

COWL, SIDE UPPER RH (BLACK) | FOR JSP

94450-47H00-YVB

Unavailable

19-1

.TAPE, SIDE COWLING UPPER RH | FOR YWW

68685-47H60-BAH

$25.10

19-2

.TAPE, SIDE COWLING UPPER RH | FOR YVB

68685-47H60-A2Z

Unavailable

20-1

COWL, SIDE UPPER LH (WHITE) | FOR AJP

94460-47H00-YWW

$134.37

20-2

COWL, SIDE UPPER LH (BLACK) | FOR JSP

94460-47H00-YVB

$134.37

21-1

.TAPE, SIDE COWLING UPPER LH | FOR YWW

68695-47H60-BAH

$25.10

21-2

.TAPE, SIDE COWLING UPPER LH | FOR YVB

68695-47H60-A2Z

Unavailable

22

SCREW (5X16)

09139-05077

$3.06

23

SCREW

03541-0516A

$1.41

24

SCREW (5X12)

09132-05050

$1.89

25

COLOR :

SPECIAL NOTE

Unavailable

25

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

25

:

SPECIAL NOTE

Unavailable

25

JSP=YVB(BLACK),YVZ(RED)

SPECIAL NOTE

Unavailable
