2015 Suzuki GSX-R1000L5 Stand Diagram

← All diagrams

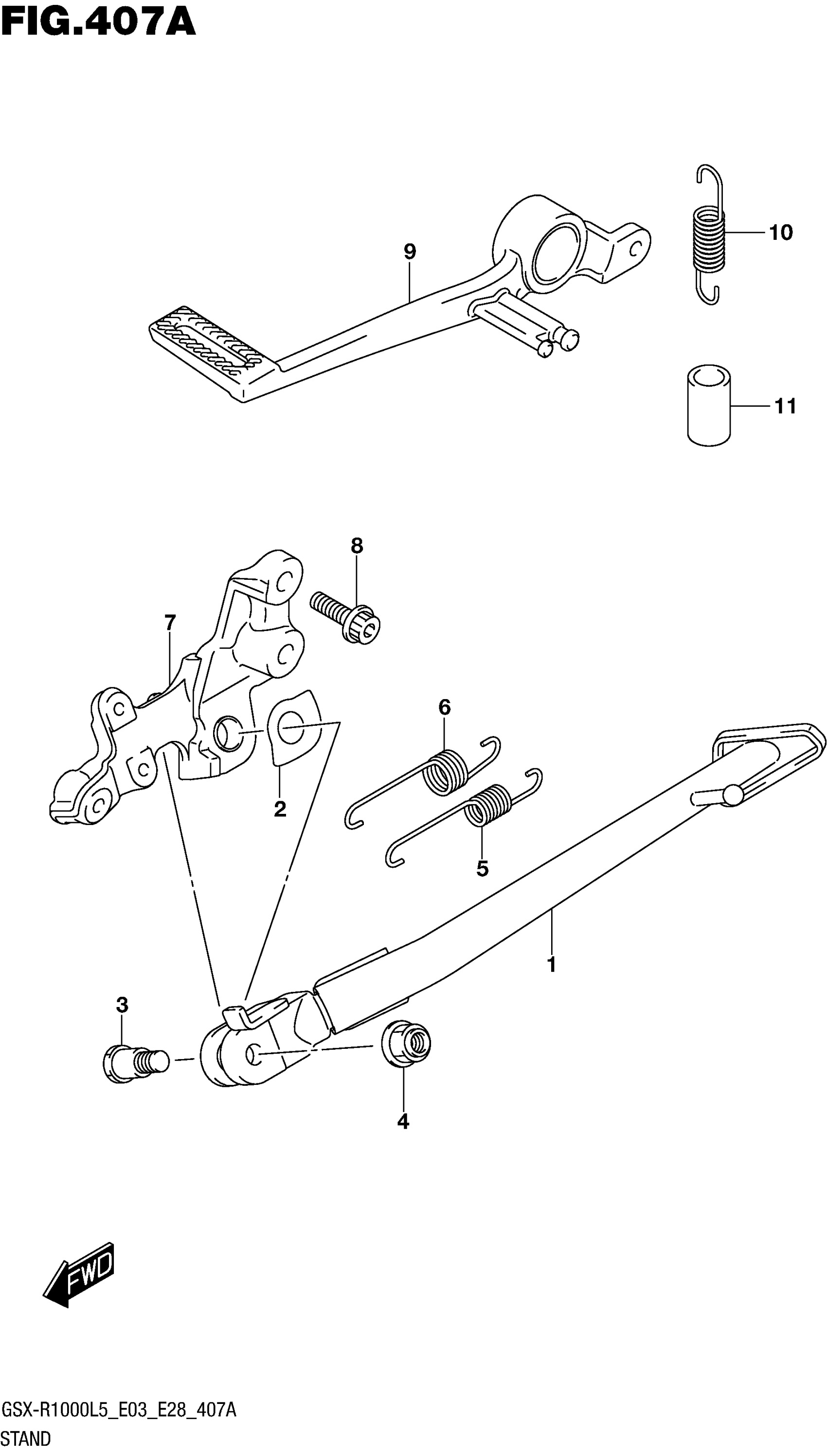

Find the part on the Stand diagram for your 2015 Suzuki GSX-R1000L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki GSX-R1000L5 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-47H10

1
Out of stock

2

WASHER

42335-47H00

2
Out of stock

3

BOLT

42411-47H00

1
Out of stock

4

NUT

09159-10103

1
Out of stock

5

SPRING | NO.1

09443-14070

1
Out of stock

6

SPRING | NO.2

09443-19016

1
Out of stock

7

BRACKET, PROP STAND

42330-47H11

1
Out of stock

8

BOLT (10X28)

09106-10064

2
Out of stock

9

PEDAL,BRAKE

43110-47H10

1
Out of stock

10

SPRING

09443-11033

1
Out of stock

11

HOSE | L:600->22 This part replaces 09352-11153-600.

09352-11154-600

1
Out of stock
