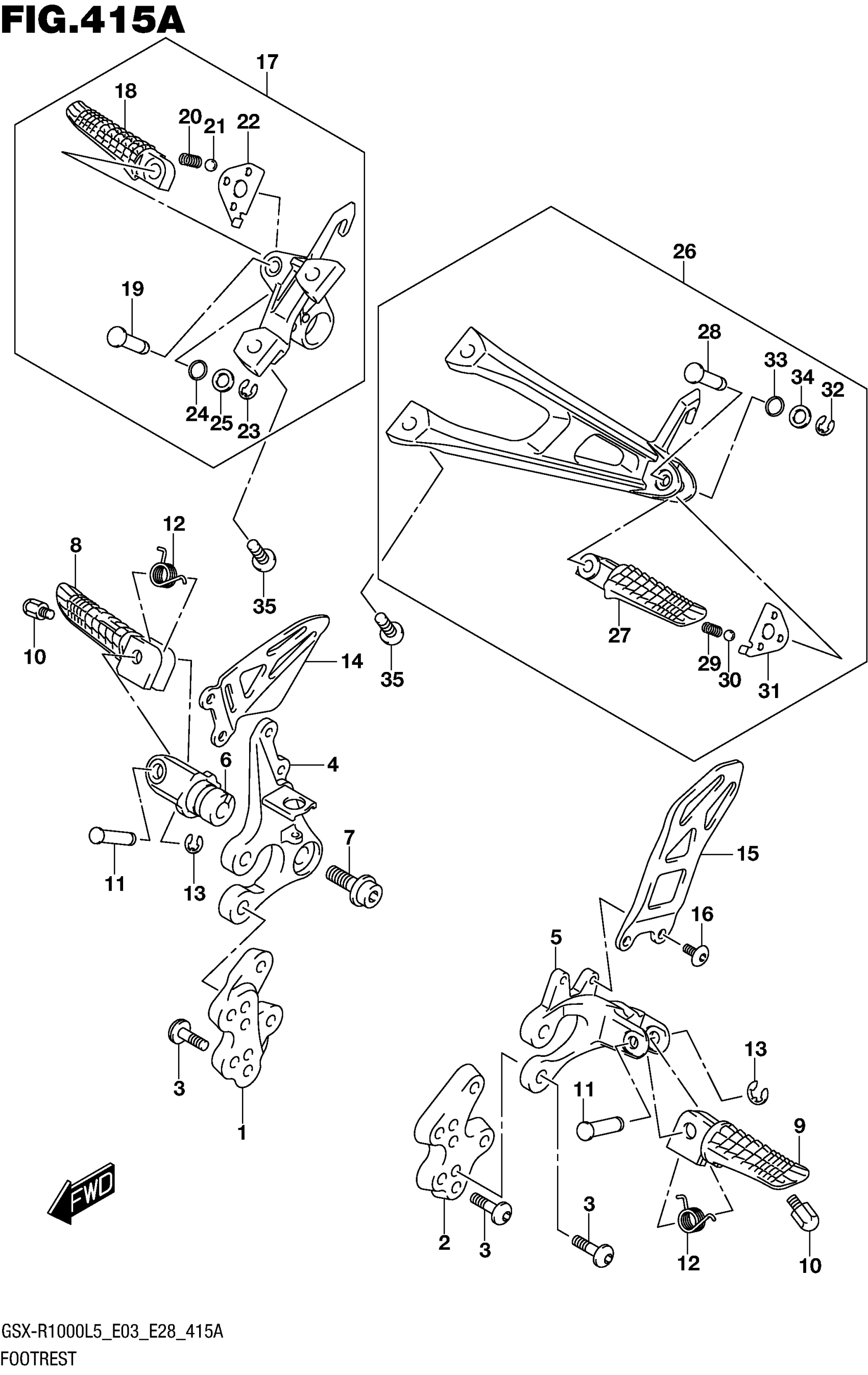

Suzuki GSX-R1000L5 (2015) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT NO.1 RH

43541-47H10

$90.70

2

BRACKET, FRONT NO.1 LH

43551-47H10

$91.13

3

BOLT (8X23)

09106-08186

$3.08

4

BRACKET, FRONT NO.2 RH

43511-47H10

$142.92

5

BRACKET,FR FOOTREST NO.2,L

43521-47H20

$79.98

6

HOLDER,FOOTREST

43531-41G20

$100.83

7

BOLT (10X28)

09106-10064

$4.42

8

BAR,FRONT FOOTREST,R

43516-37H10

$30.90

9

BAR,FRONT FOOTREST,L

43526-37H10

$47.67

10

BOLT,BANK SENSOR

43576-48B40

$10.39

11

PIN

09208-08018

$2.77

12

SPRING, FRONT FOOTREST

43581-47H00

$3.05

13

E RING

08332-1106A

$1.43

14

GUARD,FR FOOTREST,R

43571-47H30

$87.78

15

GUARD,FR FOOTREST,L

43576-47H40

$91.73

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.65

17

FOOTREST ASSY,P This part replaces 43600-47H20.

43600-47H40

$237.05

18

BAR,PILLION FOOTREST,R This part replaces 43611-37H10.

43611-37H30

$57.52

19

PIN

09208-08014

$1.41

20

SPRING

09440-05005

$1.45

21

BALL

06111-07004

$1.22

22

.PLATE,PILLION FOOTREST,R

43816-47H00

Unavailable

23

E RING

08332-1106A

$1.43

24

O RING

18592-68K00

$5.43

25

WASHER

14289-37H00

$5.92

26

FOOTREST ASSY,P This part replaces 43700-47H20.

43700-47H40

$248.92

27

BAR,PILLION FOOTREST,L This part replaces 43621-37H10.

43621-37H30

$62.92

28

PIN

09208-08014

$1.41

29

SPRING

09440-05005

$1.45

30

BALL

06111-07004

$1.22

31

.PLATE,PILLION FOOTREST,L

43826-47H00

$8.21

32

E RING

08332-1106A

$1.43

33

O RING (D:2.4,ID:6.9)

18592-68K00

$5.43

34

WASHER

14289-37H00

$5.92

35

BOLT (8X23)

09106-08186

$3.08
