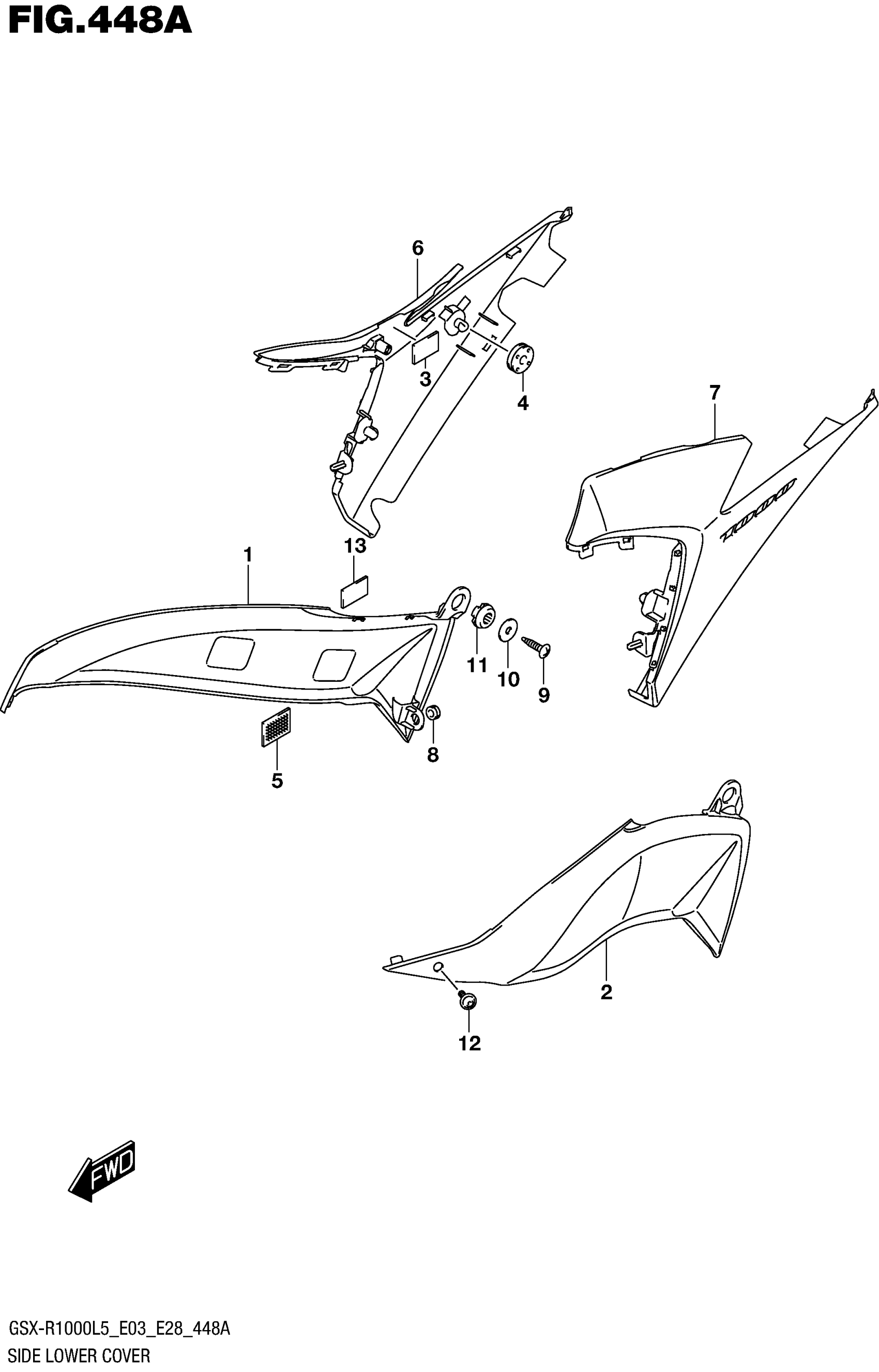

Suzuki GSX-R1000L5 (2015) SIDE LOWER COVER Diagram

#

Description
Price

1

COVER, SIDE FRONT RH

47411-47H10

$50.45

2

COVER, SIDE FRONT LH

47511-47H10

$48.82

3

CUSHION

44556-33H00

$7.01

4

CUSHION

09320-08028

$2.80

5

FASTENER

44572-13G00

$10.13

6

COVER, SIDE REAR RH

47421-47HA0

$39.40

7

COVER, SIDE REAR LH

47521-47H00

$43.95

8

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

9

SCREW

03541-0516A

$1.37

10

WASHER (5.5X20X1.2)

09160-05501

$1.86

11

CUSHION

09320-09010

$2.80

12

SCREW (5X13)

09139-05064

$2.56

13

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.80
