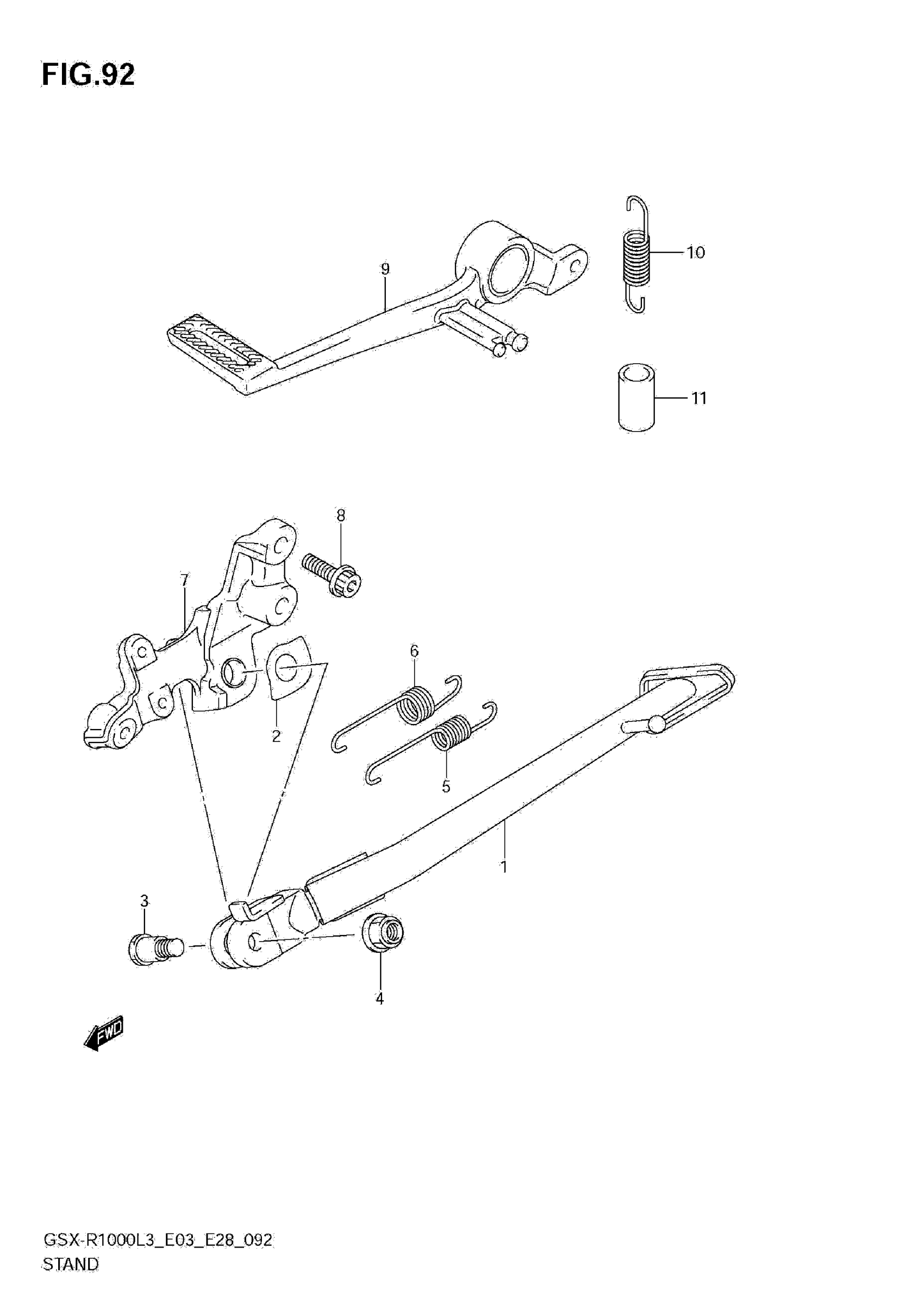

Suzuki GSX-R1000L3 (2013) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-47H10

$272.30

2

WASHER

42335-47H00

$7.48

3

BOLT

42411-47H00

$15.70

4

NUT

09159-10103

$2.88

5

SPRING | NO.1

09443-14070

$5.11

6

SPRING | NO.2

09443-19016

$5.47

7

BRACKET, PROP STAND

42330-47H11

$241.40

8

BOLT (10X28)

09106-10064

$4.55

9

PEDAL, BRAKE

43110-47H00

$129.26

10

SPRING

09443-11033

$4.19

11

HOSE | L:600->22 This part replaces 09352-11153-600.

09352-11154-600

$12.12
