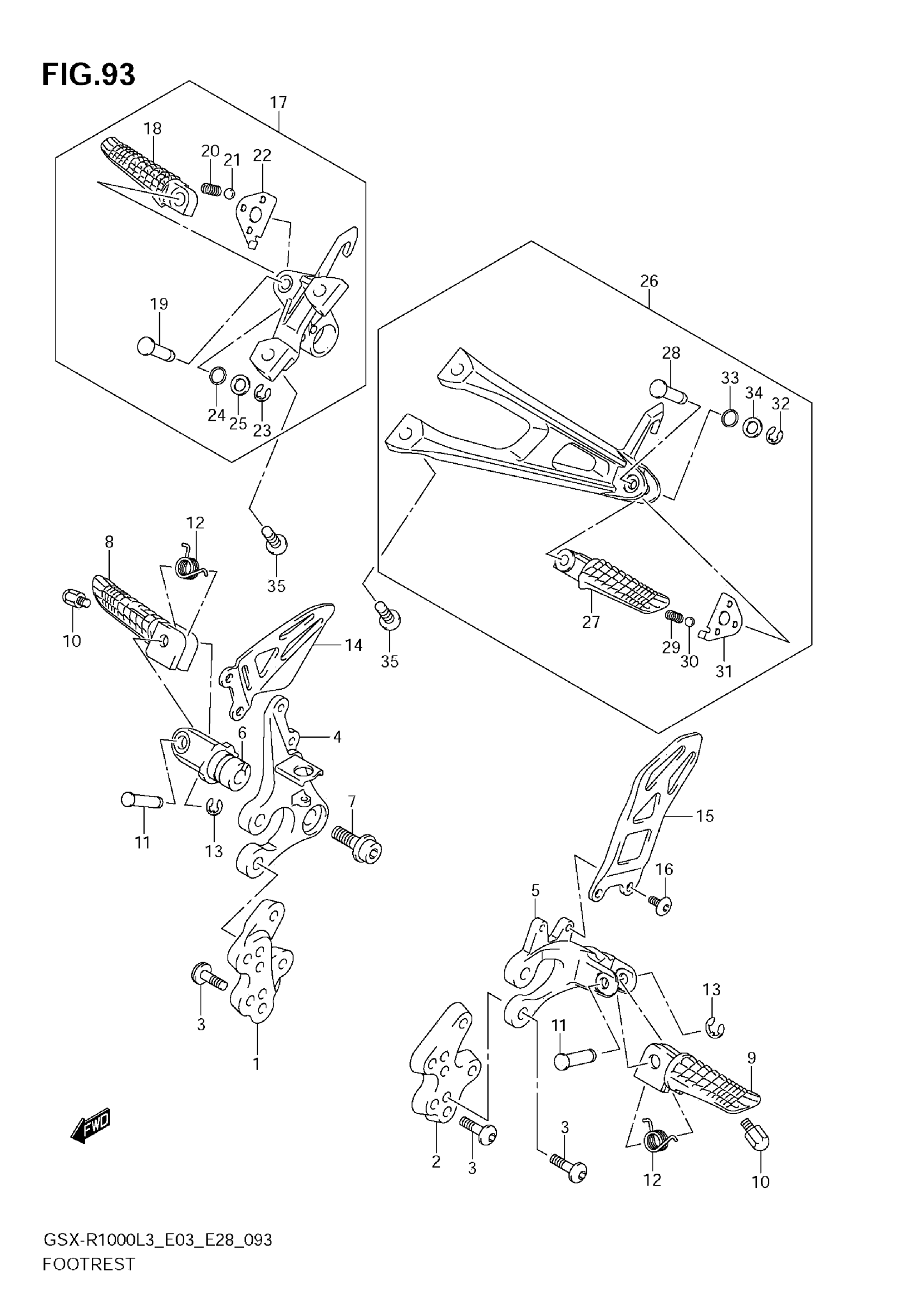

Suzuki GSX-R1000L3 (2013) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT NO.1 RH

43541-47H00

$74.95

2

BRACKET, FRONT NO.1 LH

43551-47H00

$72.20

3

BOLT (8X23)

09106-08186

$3.08

4

BRACKET, FRONT NO.2 RH

43511-47H00

$159.87

5

BRACKET, FRONT NO.2 LH

43521-47H10

$153.22

6

HOLDER, FOOTREST

43531-41G10

$111.40

7

BOLT (10X28)

09106-10064

$4.42

8

BAR, FOOTREST RH

43516-37H00

$54.45

9

BAR, FOOTREST LH

43526-37H00

$37.35

10

BOLT, BANK SENSOR

43576-48B02

$6.85

11

PIN

09208-08018

$2.77

12

SPRING

09448-14037

$2.90

13

E RING

08332-1106A

$1.43

14

GUARD, FOOTREST RH

43571-47H00

$90.33

15

GUARD, FOOTREST LH

43576-47H10

$88.67

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.65

17

FOOTREST ASSY,P This part replaces 43600-47H10.

43600-47H30

$249.22

18

BAR,PILLION FOOTREST,R This part replaces 43611-37H00.

43611-37H20

$50.40

19

PIN

09208-08014

$1.41

20

SPRING

09440-05005

$1.45

21

BALL

06111-07004

$1.22

22

.PLATE,PILLION FOOTREST,R

43816-47H00

Unavailable

23

E RING

08332-1106A

$1.43

24

O RING

18592-68K00

$5.43

25

WASHER

14289-37H00

$5.92

26

FOOTREST ASSY,P This part replaces 43700-47H10.

43700-47H30

$261.68

27

BAR,PILLION FOOTREST,L This part replaces 43621-37H00.

43621-37H20

$48.75

28

PIN

09208-08014

$1.41

29

SPRING

09440-05005

$1.45

30

BALL

06111-07004

$1.22

31

.PLATE,PILLION FOOTREST,L

43826-47H00

$8.21

32

E RING

08332-1106A

$1.43

33

O RING (D:2.4,ID:6.9)

18592-68K00

$5.43

34

WASHER

14289-37H00

$5.92

35

BOLT (8X23)

09106-08186

$3.08
