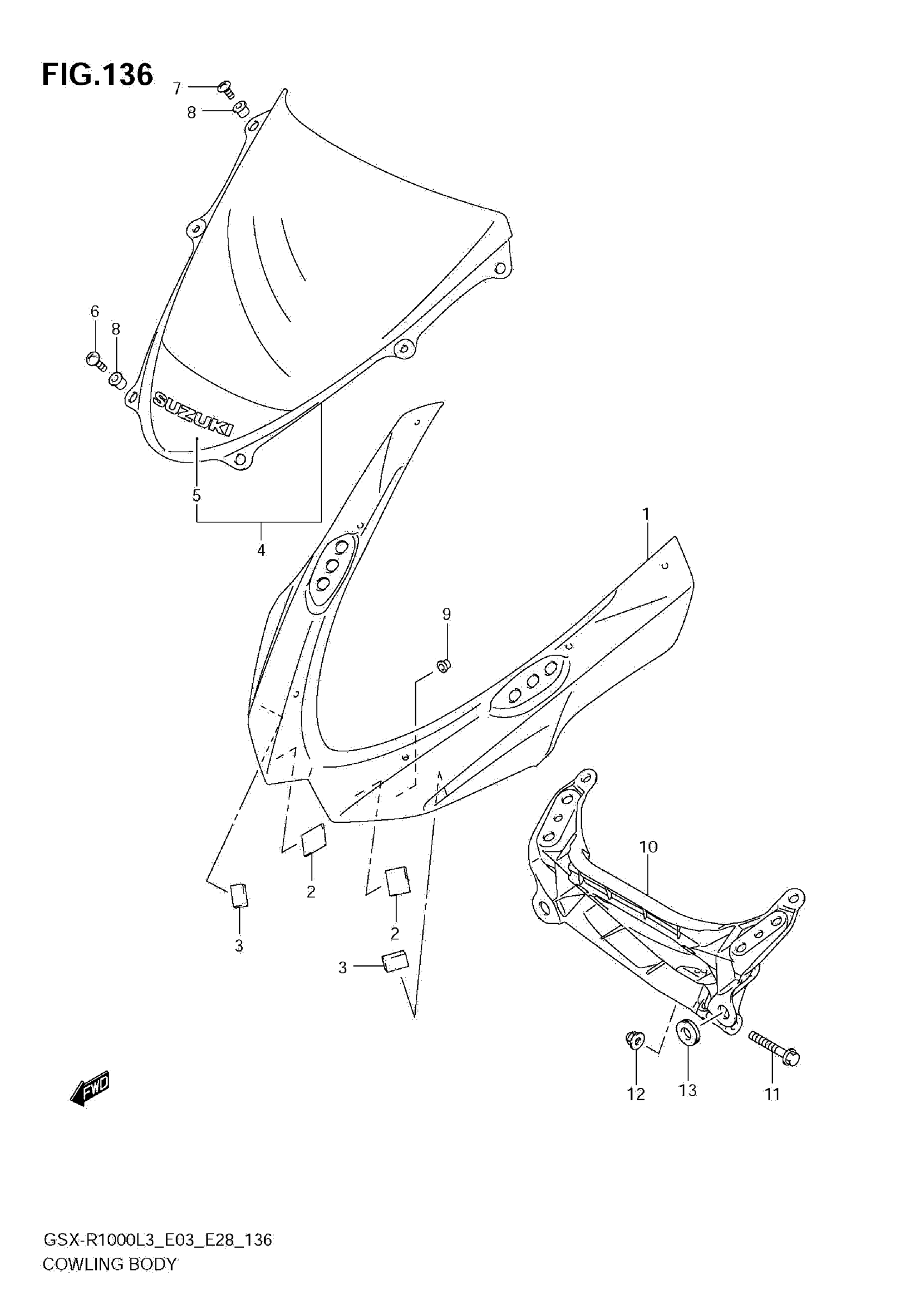

Suzuki GSX-R1000L3 (2013) COWLING BODY (GSX-R1000L3 E03) Diagram

#

Description
Price

1

BODY,COWLING | FOR GLR This part replaces 94411-47H00-YSF.

94411-47H01-YSF

$307.13

1

BODY,COWLING | FOR KGL This part replaces 94411-47H00-YVB.

94411-47H01-YVB

$325.77

2

CUSHION, FRONT

44572-02F01

$10.13

3

CUSHION, SIDE

44572-37H00

$9.01

4

WINDSCREEN

64310-47H00

$128.22

5

TAPE

68275-47H00

$47.15

6

SCREW (5X18)

09125-05133

$2.20

7

SCREW (5X15)

09125-05134

$2.27

8

NUT

09159-05019

$6.44

9

CUSHION This part replaces 09320-05018.

09320-05022

$2.45

10

BRACE, COWLING

94511-47H00

$417.23

11

BOLT

01550-0845A

$2.88

12

NUT

08313-2008A

$2.50

13

CUSHION

09320-08028

$2.80
