2012 Suzuki GSX-R1000L2 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2012 Suzuki GSX-R1000L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

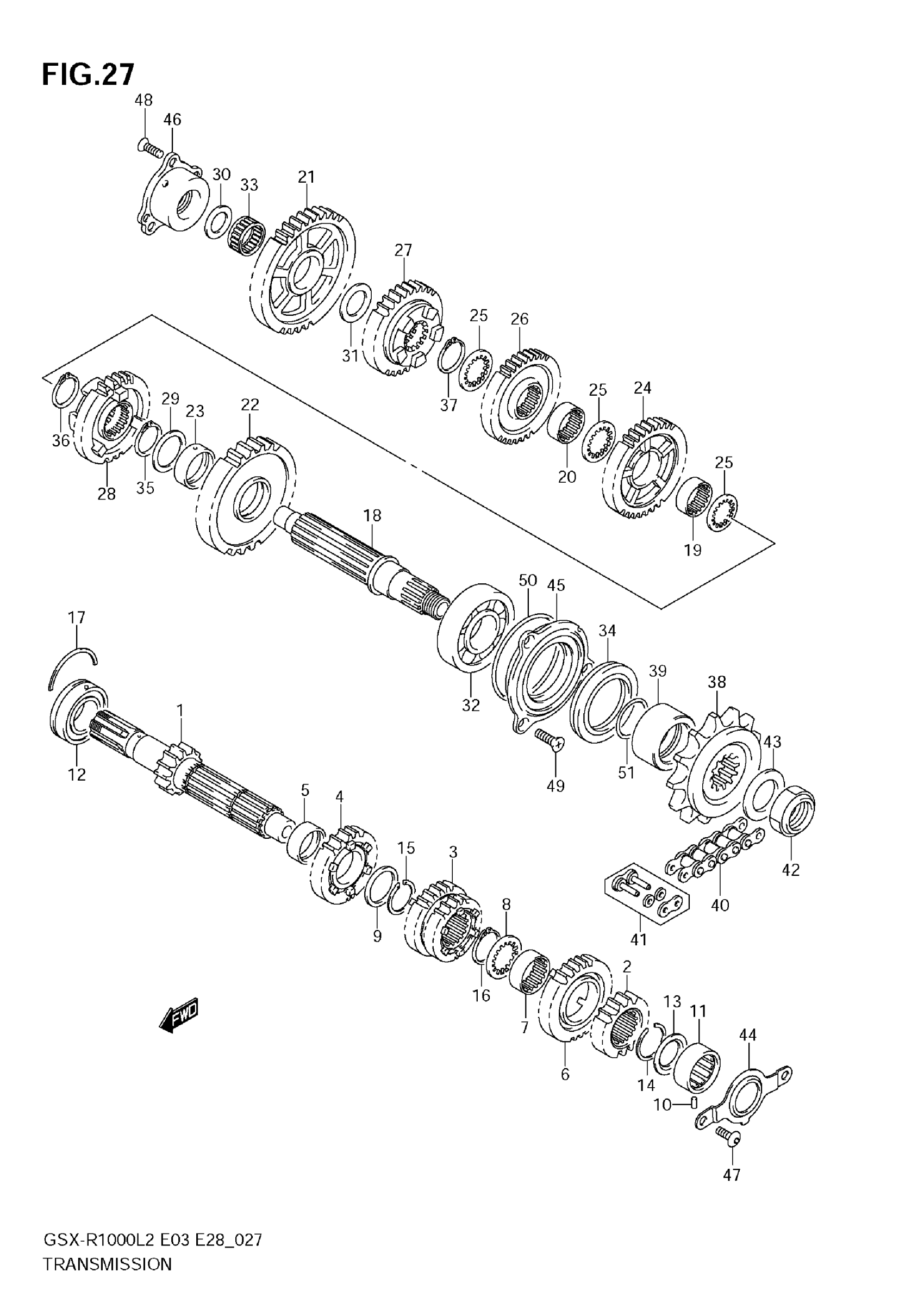

2012 Suzuki GSX-R1000L2 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, CNTR (NT:16) This part replaces 24120-47H10.

24120-47H11

1
Out of stock

2

GEAR,2ND DRIVE (NT:19)

24221-40F30

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE (NT:21/24)

24231-47H00

1
Out of stock

4

GEAR, 5TH DRIVE (NT:25)

24251-47H00

1
Out of stock

5

BUSH, 5TH DRIVE GEAR

24252-24F10

1
Out of stock

6

GEAR, 6TH DRIVE (NT:26)

24261-47H00

1
Out of stock

7

BUSH,6TH DRIVE GEAR

24262-24F20

1
Out of stock

8

LOCK WASHER

09167-27001

1
Out of stock

9

WASHER (27X36X1)

09160-27008

1
Out of stock

10

PIN

04221-07129

1
Out of stock

11

BEARING (20X34X16) | LH

09263-20103

1
Out of stock

12

BEARING (25X52X20.6) | RH

09267-25013

1
Out of stock

13

OIL SEAL (20X31.2X2.7)

09285-20006

1
Out of stock

14

CIRCLIP

09380-27004

1
Out of stock

15

CIRCLIP

09380-27006

1
Out of stock

16

CIRCLIP

09380-27006

1
Out of stock

17

C RING

09390-58001

1
Out of stock

18

SHAFT, DRIVE This part replaces 24131-47H00.

24131-47H01

1
Out of stock

19

BUSH, 3RD DRIVEN GEAR

24332-24F20

1
Out of stock

20

BUSH, 4TH DRIVEN GEAR

24332-24F20

1
Out of stock

21

GEAR,1ST DRIVEN (NT:41)

24311-47H00

1
Out of stock

22

GEAR, 2ND DRIVEN (NT:39)

24321-47H00

1
Out of stock

23

BUSH, 2ND DRIVEN GEAR

24322-24F20

1
Out of stock

24

GEAR, 3RD DRIVEN (NT:36)

24331-47H10

1
Out of stock

25

WASHER, 3RD & 4TH DRIVE

24333-47H00

3
Out of stock

26

GEAR,4TH DRIVEN (NT:36)

24341-47H10

1
Out of stock

27

GEAR,5TH DRIVEN (NT:34)

24351-47H00

1
Out of stock

28

GEAR,6TH DRIVEN (NT:33) This part replaces 24361-47H00.

24361-17K00

1
Out of stock

29

SHIM (30X40X1)

09181-30167

1
Out of stock

30

SHIM (22X34X1) | RH

09181-22223

1
Out of stock

31

SHIM (24X34X1) | LH

09181-24005

1
Out of stock

32

BEARING (30X62X23.8) | LH

09267-30014

1
Out of stock

33

BEARING (24X28X13)

09263-24030

1
Out of stock

34

OIL SEAL (38X56X7)

09283-38027

1
Out of stock

35

CIRCLIP

09380-30009

1
Out of stock

36

CIRCLIP

09380-30009

1
Out of stock

37

CIRCLIP

09380-30009

1
Out of stock

38

SPROCKET, ENGINE

27510-15H10

1
Out of stock

39

SPACER, ENGINE SPROCKET

27531-47H00

1
Out of stock

40

CHAIN ASSY, DRIVE (DID50VAZ)

27600-40F20-114

1
Out of stock

41

JOINT SET,DRIVE | OPT This part replaces 27620-40F20.

27620-40F21

1
Out of stock

42

NUT

09159-22008

1
Out of stock

43

SHIM (27X42X1.5)

09181-27016

1
Out of stock

44

RETAINER,CL PUSH ROD OIL SEAL

24741-01H00

1
Out of stock

45

RETAINER, DRIVE SHAFT BRG, L

24751-47H00

1
Out of stock

46

HOUSING, DRIVE SHAFT SET

24771-01820

1
Out of stock

47

SCREW (6X13)

09139-06153

2
Out of stock

48

SCREW (6X20)

09139-06159

3
Out of stock

49

SCREW (6X20)

09139-06159

3
Out of stock

50

O RING (D:1.9,ID:61.5)

09280-62004

1
Out of stock

51

O RING (D:2.4,ID:26.2)

09280-26005

1
Out of stock
