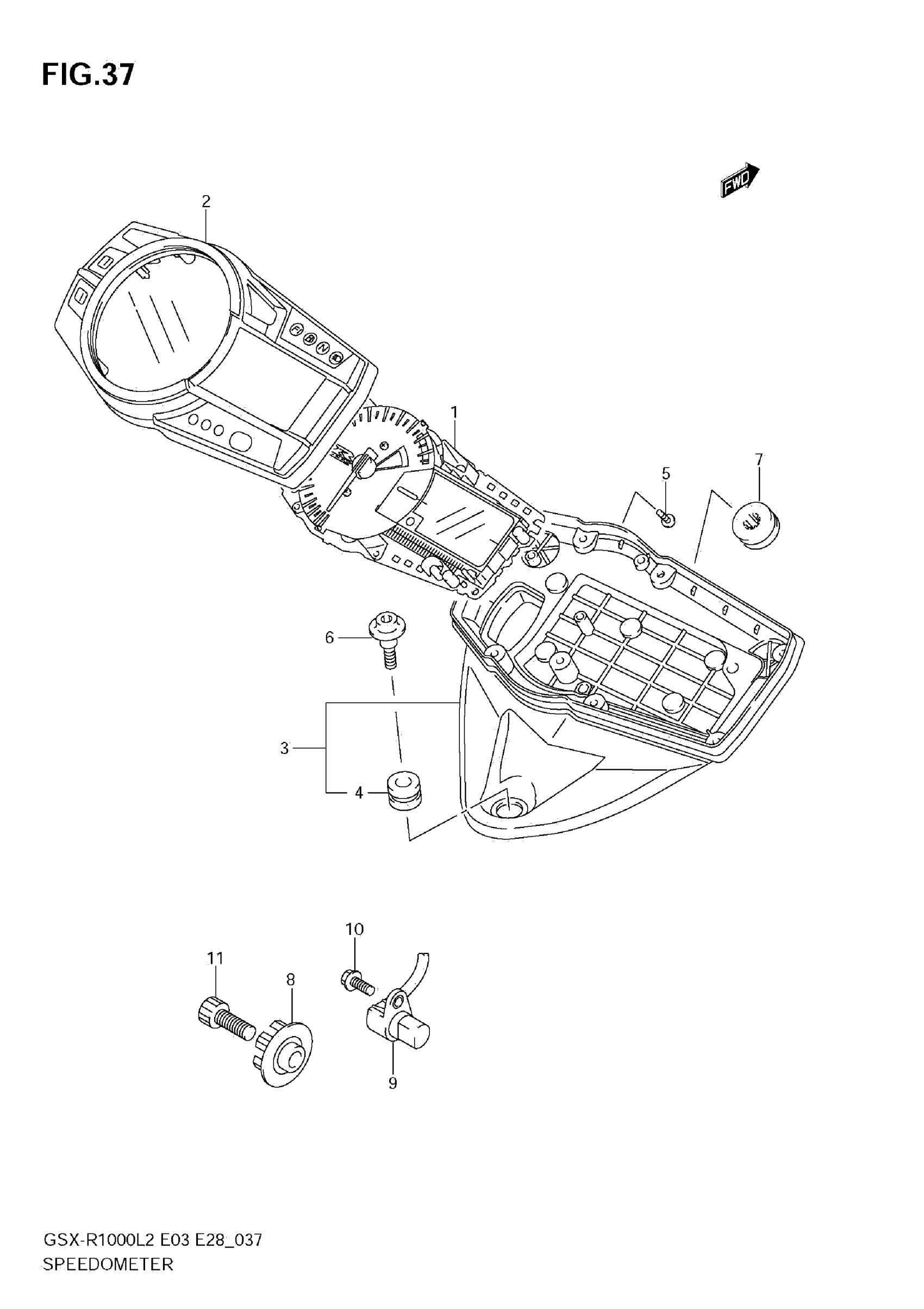

Suzuki GSX-R1000L2 (2012) SPEEDOMETER (GSX-R1000 L2 E28) Diagram

#

Description
Price

1

COMBINATION METER

34120-47H60

Unavailable

2

CASE ASSY,UPR

34150-47H00

$189.55

3

CASE ASSY, LOWER

34111-47H00

$106.10

4

CUSHION, RUBBER

34955-33E00

$3.26

5

SCREW (3X16)

09132-03008

$1.55

6

SCREW, SPEEDOMETER

34149-18G00

$2.71

7

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

8

ROTOR, SPEED

34981-47H01

$20.16

9

SENSOR, SPEED

34990-35F00

$120.25

10

BOLT

07120-0512B

$2.61

11

BOLT

07130-0825B

$3.04
