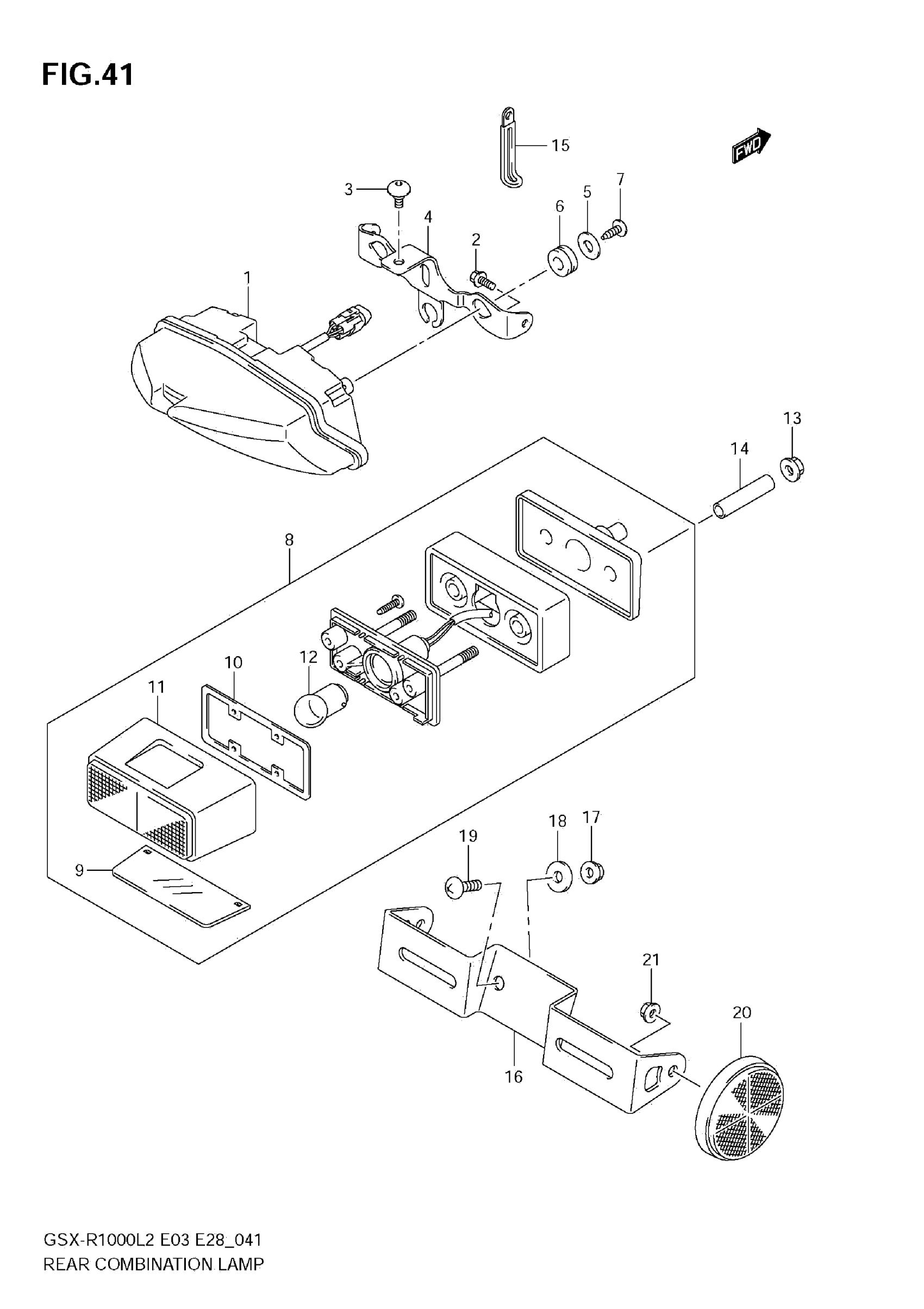

Suzuki GSX-R1000L2 (2012) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB This part replaces 35710-14JA0.

35710-14JC0

$141.45

2

BOLT (5X12)

09106-05031

$2.80

3

SCREW (6X12)

09139-06152

$5.54

4

BRACKET, REARCOMBINATION LAMP

35726-47H00

$22.10

5

WASHER (5.5X20X1.2)

09160-05501

$1.94

6

CUSHION

09320-10049

$2.46

7

SCREW

03541-0516A

$1.41

8

LAMP ASSY,LICENSE This part replaces 35910-41G31.

35910-41G32

$99.83

9

LENS, LICENSE

35912-41G01

$14.98

10

GASKET

35913-41G00

$16.07

11

COVER, LICENSE LAMP

35917-41G00

$39.85

12

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

13

NUT

09159-06096

$3.42

14

SPACER (6.5X9X34)

09180-06356

$5.10

15

CLAMP (L:45)

09404-06429

$1.88

16

BRACKET, LICENSE PLATE

35927-41G30

$17.12

17

NUT

08316-1006A

$2.25

18

WASHER (6.5X20X1.2)

09160-06077

$1.97

19

SCREW

02142-0616A

$1.41

20

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.87

21

NUT

08316-1005A

$2.25
