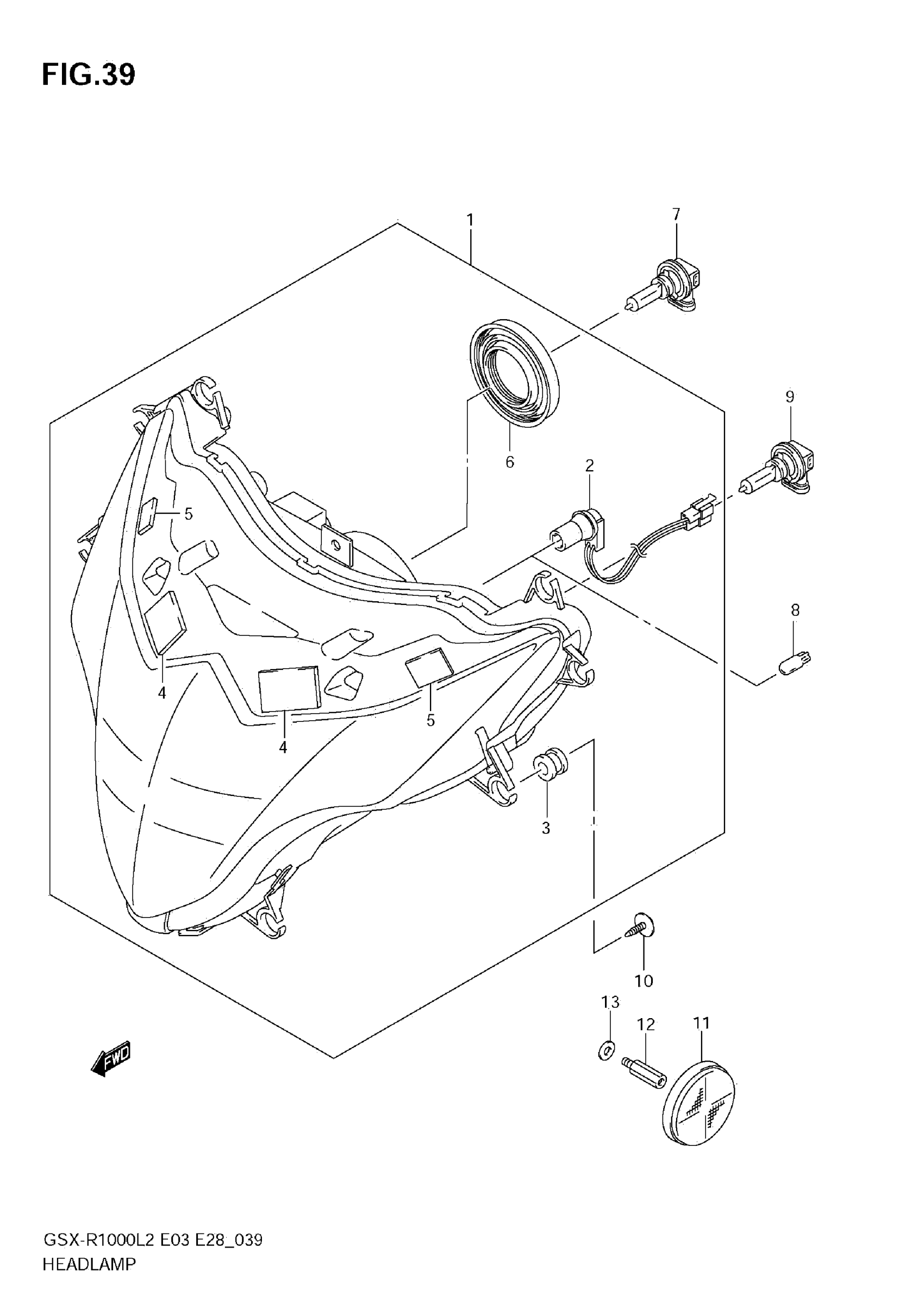

Suzuki GSX-R1000L2 (2012) HEADLAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 35100-47H31-999.

35100-47H32-999

$612.70

2

CORD ASSY

36118-29G51

$17.28

3

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$2.95

4

FASTENER, HEADLAMP LENS

44572-02F01

$10.13

5

FASTENER, HEADLAMP LENS

44572-37H00

$9.01

6

COVER, SOCKET

35179-76F10

$14.00

7

BULB (12V55W)

09471-12210

$60.78

8

.BULB (12V5W)

09471-12216

$4.84

9

BULB (12V65W)

09471-12222

$89.48

10

SCREW (5X15)

09136-05062

$2.19

11

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

12

BOLT

09119-06109

$14.43

13

WASHER (8.5X18X1)

09160-08043

$1.81
