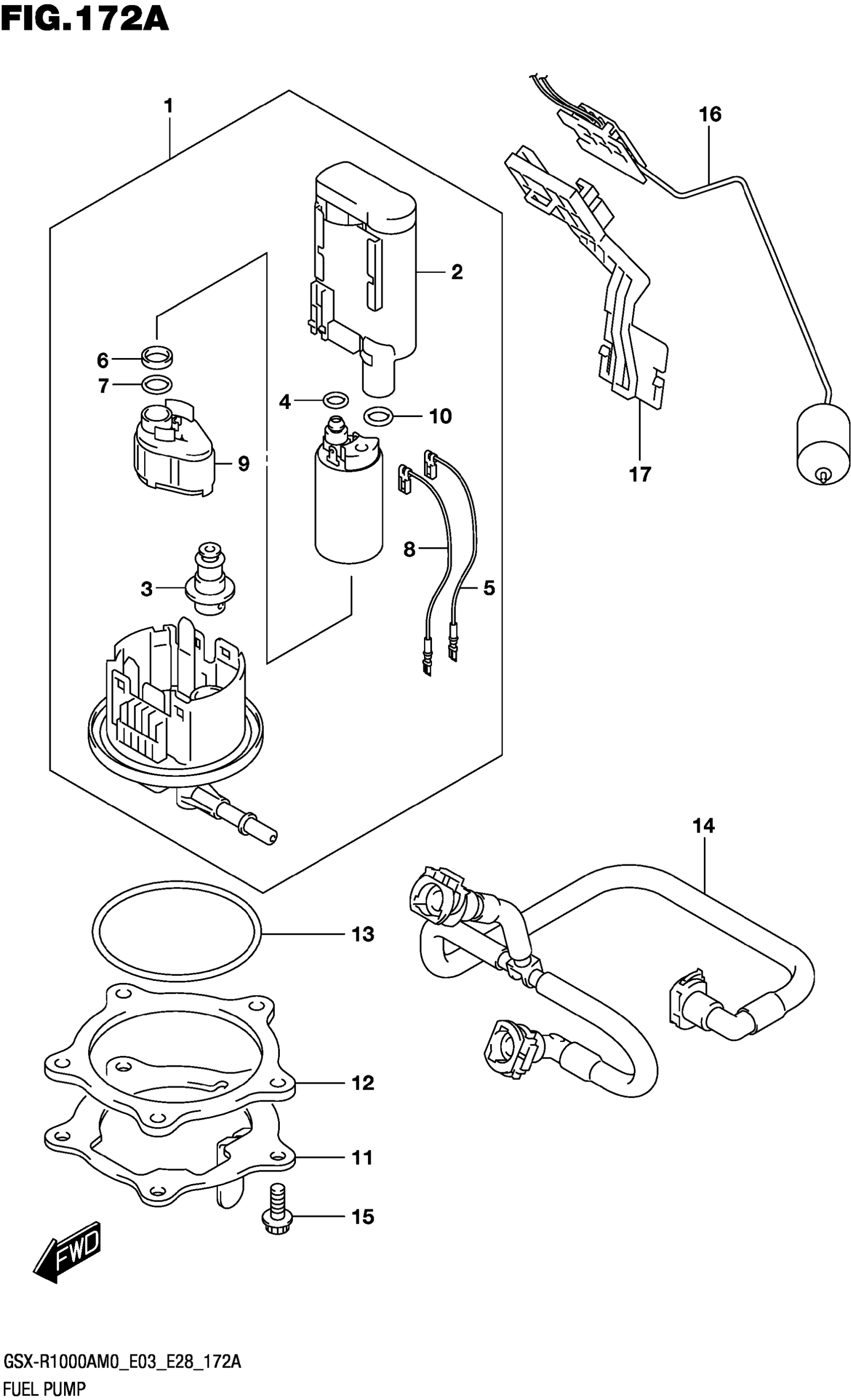

Suzuki GSX-R1000AM0 (2020) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-17K50

$475.67

2

.FILTER

15310-17K00

$74.75

3

.REGULATOR

15610-17K50

$172.38

4

.O-RING

15113-05H00

$19.66

5

.WIRE,EARTH

15114-17K00

$45.18

6

.COLLAR

15116-17K00

$20.62

7

.O-RING

15113-17K00

$35.95

8

.WIRE,LEAD

15115-17K00

$45.18

9

.STRAINER

15420-17K00

$97.36

10

.O-RING

15113-35F00

$8.52

11

PLATE,FUEL PUMP OUTER

15120-17K00

$16.15

12

PLATE,FUEL PUMP INNER

15122-17K00

$49.37

13

O-RING,FUEL PUMP

15201-07L00

$20.08

14

HOSE,FUEL

15810-17K00

$126.22

15

BOLT

07120-0616A

$2.64

16

GAUGE ASSY,FUEL LEVEL SENDER

34810-17K10

$174.22

17

ATTACHMENT,FUEL LEVEL GAUGE

34815-17K10

$16.00
