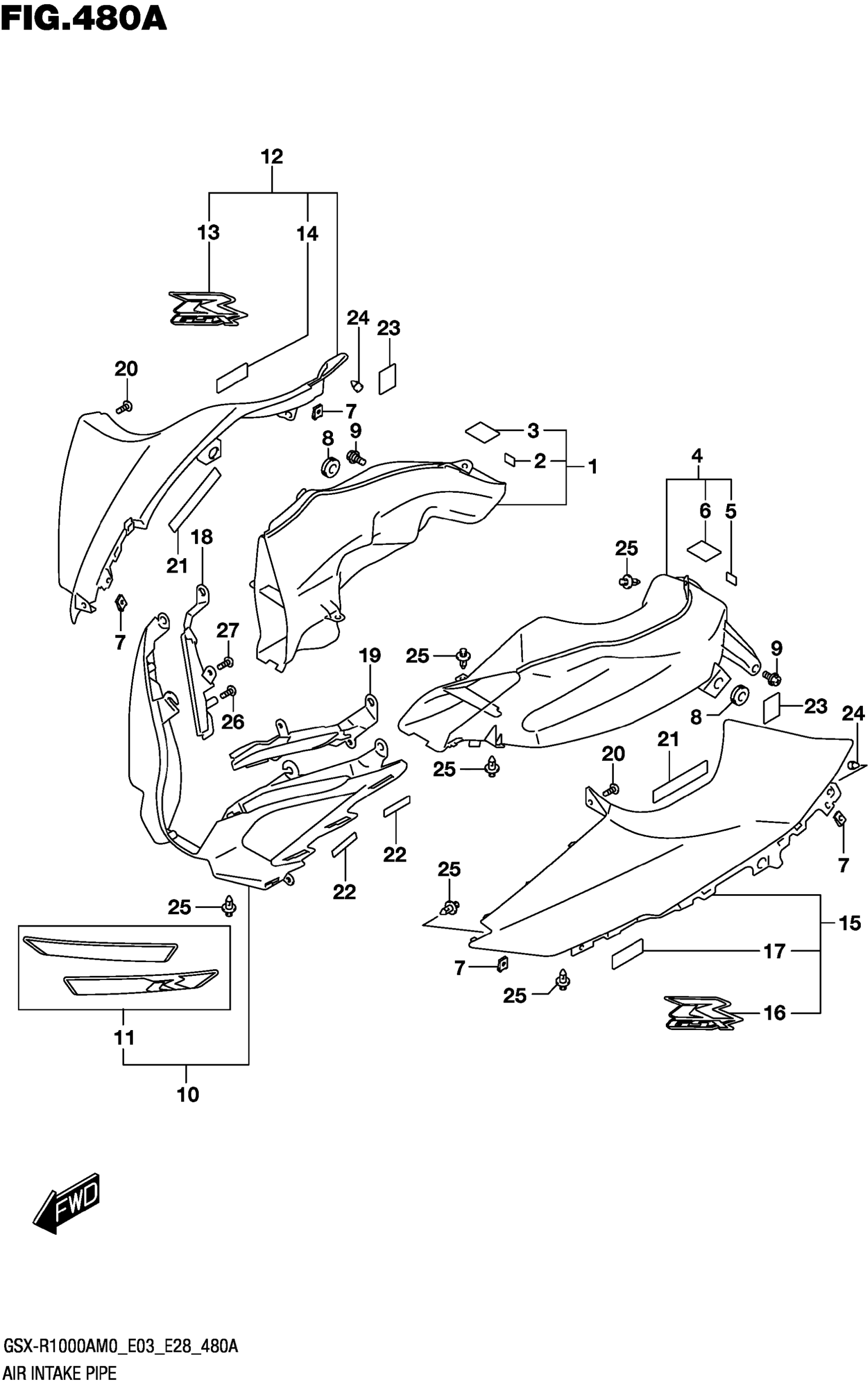

Suzuki GSX-R1000AM0 (2020) AIR INTAKE PIPE (GSX-R1000A) Diagram

#

Description
Price

1

PIPE,AIR INTAKE,R

94420-17K00

$57.70

2

CUSHION (10X10X1) | 1)

63115-37H00

$3.42

3

.COVER (30X45X2)

36930-60A10

$2.80

4

PIPE,AIR INTAKE,L

94430-17K00

$81.37

5

CUSHION (10X10X1) | 1)

63115-37H00

$3.42

6

.COVER (30X45X2)

36930-60A10

$2.80

7

NUT (M5)

09148-05052

$3.04

8

CUSHION (8X26X7)

09320-08028

$2.80

9

BOLT (6X12)

09111-06106

$2.28

10

COVER,INTAKE (BLACK)

94600-17K20-YVB

$136.55

11

.TAPE SET,INTAKE COVER (RED,B | ACK)

68270-17K40-BV8

Unavailable

12

COVER,INTAKE,R (BLACK)

94670-17K40-YVB

$209.95

13

.EMBLEM,GSXR (RED,BLACK)

68275-17K70-BV8

$30.72

14

PAD (8X20X2)

73415-70A00

$1.50

15

COVER,INTAKE,LH (BLACK)

94680-17K40-YVB

$198.07

16

.EMBLEM,GSXR (RED,BLACK)

68275-17K70-BV8

$30.72

17

PAD (8X20X2)

73415-70A00

$1.50

18

COVER,INTAKE UPPER,R

94414-17K00

$10.57

19

COVER,INTAKE UPPER,L

94415-17K00

$10.57

20

SCREW (5X12)

09132-05050

$1.89

21

COVER (30X100X2)

36930-82010

$4.05

22

CUSHION,UNDER COWLING NO.1 | CUT AS REQUIRED

94476-38C00

Unavailable

23

CUSHION (16X30X3.5)

94633-31J00

$2.43

24

CUSHION

09321-06036

$1.52

25

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

26

SCREW

03541-0412B

$1.55

27

SCREW

03541-0512B

$1.77
