Partiron

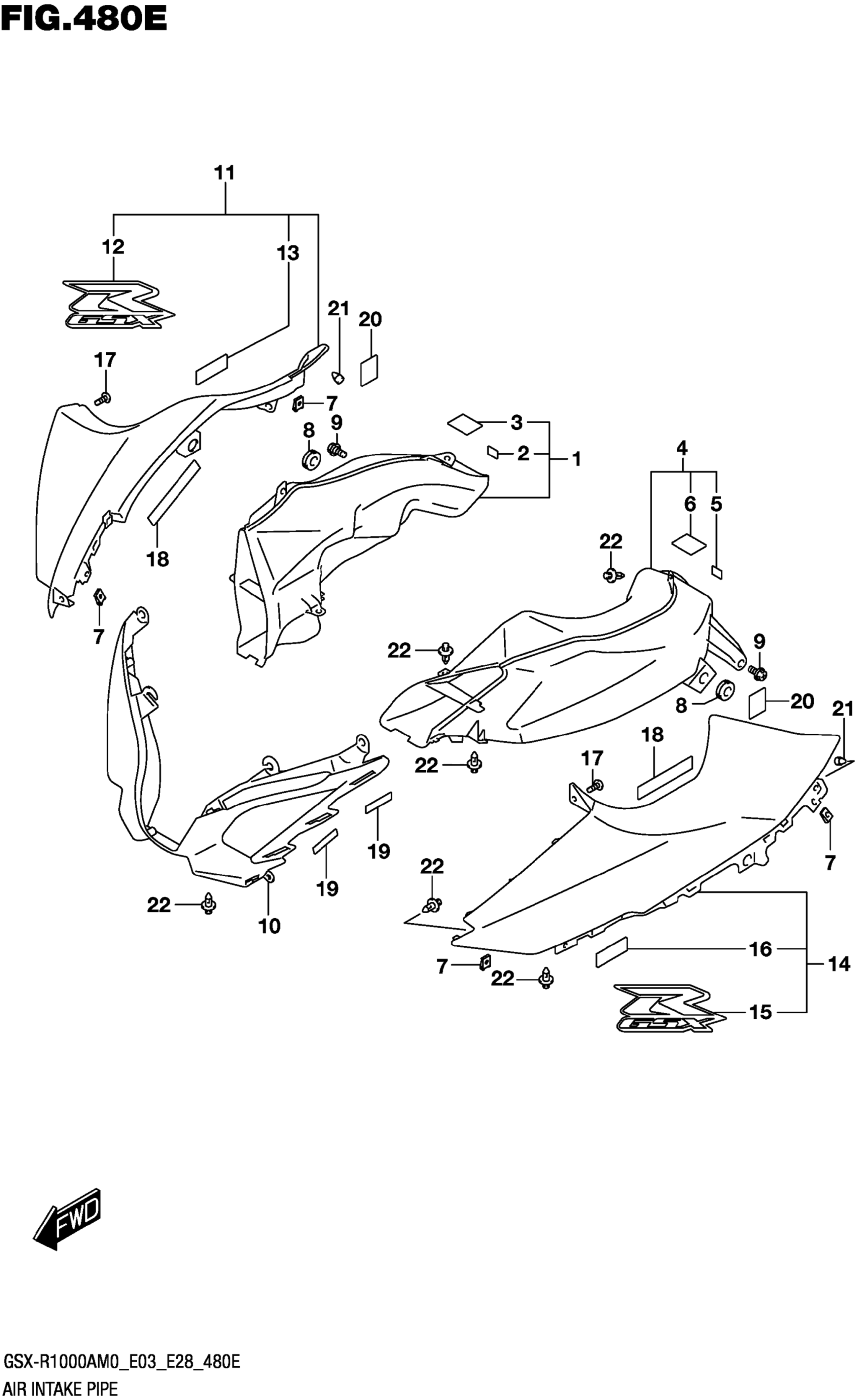

Suzuki GSX-R1000AM0 (2020) AIR INTAKE PIPE (GSX-R1000RA)(SEE NOTE 1) 480E Diagram

#

Description
Price

1

PIPE,AIR INTAKE,R | RH

94420-17K00

$57.70

2

CUSHION (10X10X1) | 1)

63115-37H00

$3.42

3

.COVER (30X45X2)

36930-60A10

$2.80

4

PIPE,AIR INTAKE,L | LH

94430-17K00

$81.37

5

CUSHION (10X10X1) | 1)

63115-37H00

$3.42

6

.COVER (30X45X2)

36930-60A10

$2.80

7

NUT (M5)

09148-05052

$3.04

8

CUSHION (8X26X7)

09320-08028

$2.80

9

BOLT (6X12)

09111-06106

$2.28

10

COVER,INTAKE (RED)

94671-17K00-YVZ

$102.30

11

COVER,INTAKE,RH (BLACK)

94670-17K40-6UX

$217.93

12

.EMBLEM,GSXR (ORANGE,SILVER,B | ACK)

68275-17K70-BW2

$25.73

13

PAD (8X20X2)

73415-70A00

$1.50

14

COVER,INTAKE,LH (BLACK)

94680-17K40-6UX

$209.95

15

.EMBLEM,GSXR (ORANGE,SILVER,B | ACK)

68275-17K70-BW2

$25.73

16

PAD (8X20X2)

73415-70A00

$1.50

17

SCREW (5X12)

09132-05050

$1.89

18

COVER (30X100X2)

36930-82010

$4.05

19

CUSHION,UNDER COWLING NO.1 | CUT AS REQUIRED

94476-38C00

Unavailable

20

CUSHION (16X30X3.5)

94633-31J00

$2.43

21

CUSHION

09321-06036

$1.52

22

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

23

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | NOTE 1: FOR JSP

SPECIAL NOTE

Unavailable
