2017 Suzuki GSX-R1000AL Radiator Diagram

← All diagrams

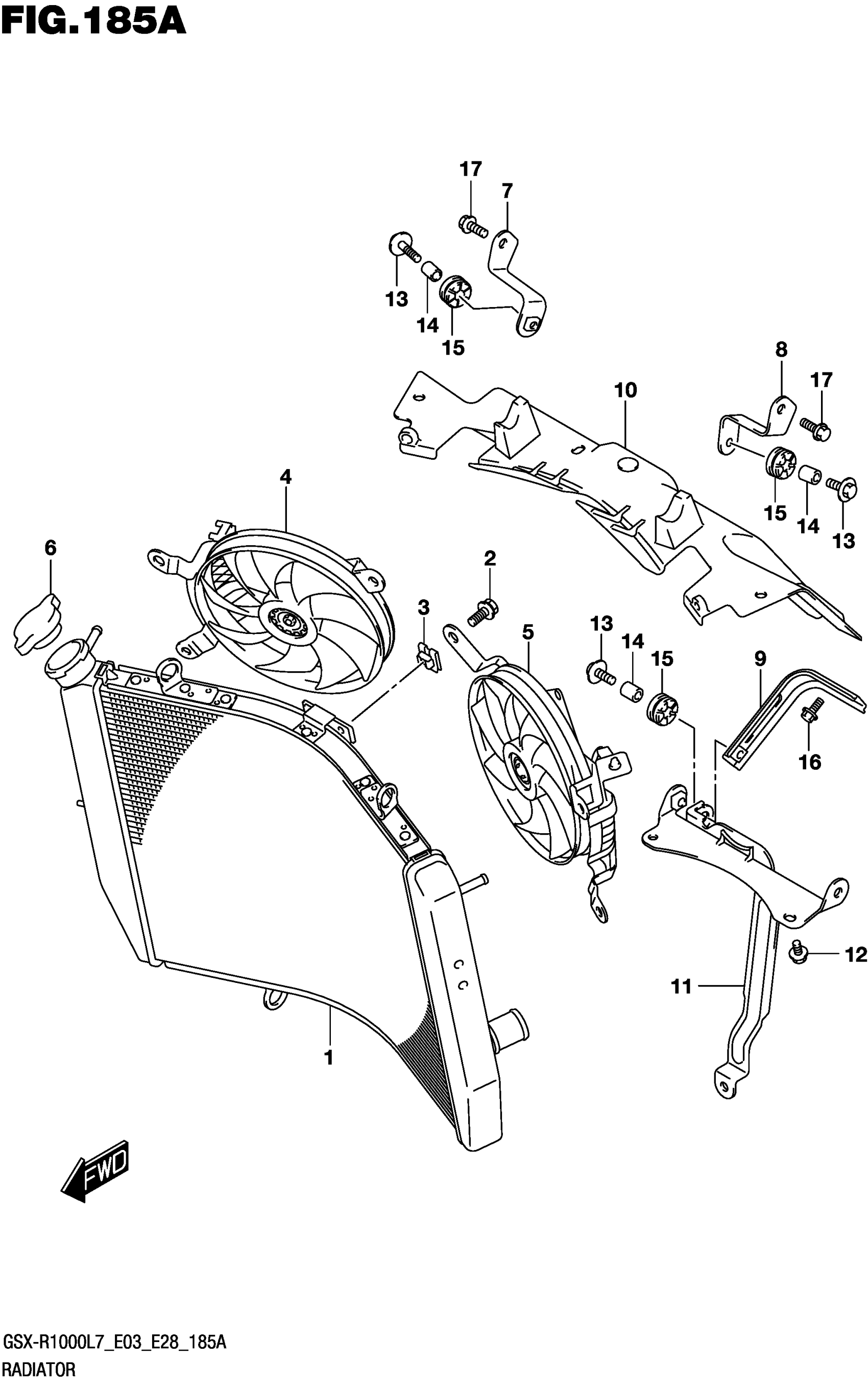

Find the part on the Radiator diagram for your 2017 Suzuki GSX-R1000AL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-R1000AL Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR ASSY,WATER This part replaces 17710-17K00.

17710-17K01

1
Out of stock

2

BOLT, FAN ASSY

17711-08J00

6
Out of stock

3

NUT, FAN ASSY

17712-40F00

2
Out of stock

4

FAN ASSY,RADIATOR,R

17810-17K00

1
Out of stock

5

FAN ASSY,RADIATOR,L

17820-17K00

1
Out of stock

6

CAP

17730-08J00

1
Out of stock

7

BRACKET,RADIATOR UPPER,R

17741-17K00

1
Out of stock

8

BRACKET,RADIATOR UPPER,L

17742-17K00

1
Out of stock

9

BRACKET,RADIATOR LOWER,R

17750-17K00

1
Out of stock

10

SHIELD,RADIATOR HEAT

17771-17K00

1
Out of stock

11

BRACKET,RDTR SUPPORT

17790-17K00

1
Out of stock

12

BOLT (6X10)

09103-06307

2

$3.57

In stock

13

BOLT (6X25)

09118-06097

3
Out of stock

14

SPACER (6.5X10X12)

09180-06290

3
Out of stock

15

CUSHION

09320-10051

3
Out of stock

16

BOLT

01550-0612A

1
Out of stock

17

BOLT

01550-0616A

2
Out of stock
