2017 Suzuki GSX-R1000AL Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2017 Suzuki GSX-R1000AL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

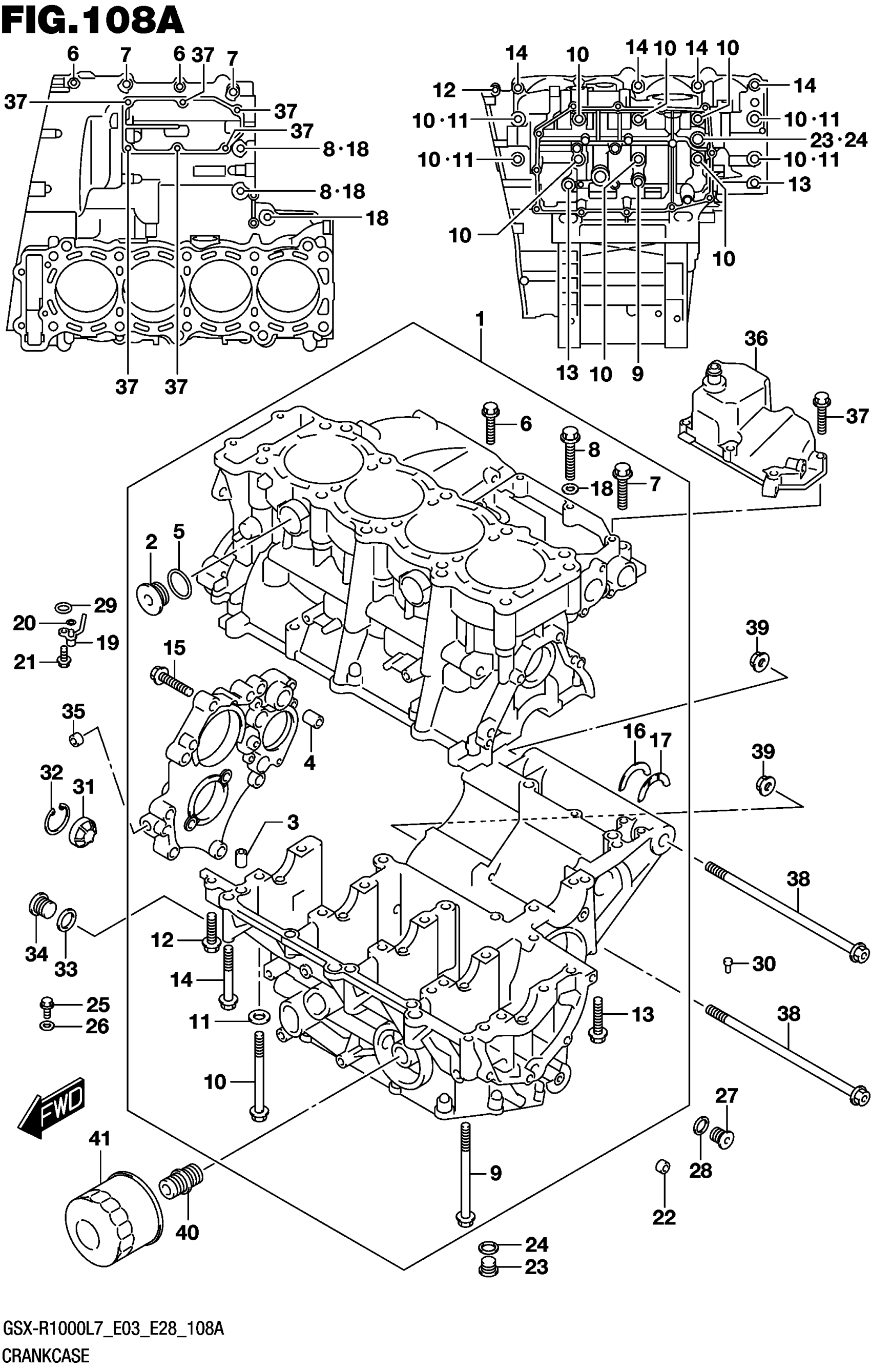

2017 Suzuki GSX-R1000AL Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-17810

1
Out of stock

2

.PLUG, WATER JACKET

11318-35F00

3
Out of stock

3

PIN,CRANKCASE

11319-33E50

3
Out of stock

4

PIN,CRANKCASE

11319-33E50

2
Out of stock

5

.O-RING (D:3.1,ID:19.4)

09280-20002

3
Out of stock

6

.BOLT

01547-0635A

2
Out of stock

7

.BOLT

01550-0840A

2
Out of stock

8

.BOLT

01550-0850A

4
Out of stock

9

.BOLT (8X110)

09103-08134

1
Out of stock

10

.BOLT (9X95)

09103-09012

10
Out of stock

11

.GASKET (10.2X20X2.3)

09168-10031

4
Out of stock

12

.BOLT

01547-0635A

1
Out of stock

13

.BOLT

01550-0840A

2
Out of stock

14

.BOLT

01550-0865A

4
Out of stock

15

.BOLT

07120-0835A

8
Out of stock

16

.BEARING, THRUST RH (GREEN)

12228-48B00-0E0

1
Out of stock

17-1

.BEARING, THRUST LH (BROWN)

12228-48B00-0B0

1
Out of stock

17-2

.BEARING, THRUST LH (RED)

12228-48B00-0C0

1
Out of stock

17-3

.BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

1
Out of stock

17-4

.BEARING, THRUST LH (GREEN)

12228-48B00-0E0

1
Out of stock

17-5

.BEARING, THRUST LH (BLUE)

12228-48B00-0F0

1
Out of stock

17-6

.BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

1
Out of stock

17-7

.BEARING, THRUST LH (BLACK)

12228-48B00-0H0

1
Out of stock

18

GASKET (8.2X14X1)

09168-08016

2
Out of stock

19

JET,PISTON COOLING

11390-17K00

4
Out of stock

20

O RING (D:1.2,ID:4)

09280-04004

4
Out of stock

21

BOLT (6X12)

09106-06075

4
Out of stock

22

PLUG This part replaces 09246-05006.

09246-04009

1
Out of stock

23

PLUG (L:12)

09248-12004

1
Out of stock

24

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

25

BOLT

01547-0612A

1
Out of stock

26

GASKET (6.2X13X1.2)

09168-06018

1
Out of stock

27

PLUG (10X10)

09248-10010

2
Out of stock

28

GASKET (10X14X3.6)

09168-10002

2
Out of stock

29

O RING (D:1.9,ID:7.8)

09280-08012

1
Out of stock

30

JET (140)

09493-28012

1
Out of stock

31

LENS, OIL LEVEL

11971-33210

1
Out of stock

32

.CIRCLIP

08331-4130A

1
Out of stock

33

GASKET (16X22X2)

09168-16002

2
Out of stock

34

PLUG (16X12)

09248-16013

2
Out of stock

35

PLUG This part replaces 09246-05006.

09246-04009

1
Out of stock

36

COVER,BREATHER

11380-17K00

1
Out of stock

37

BOLT

01547-0630A

6
Out of stock

38

BOLT (12X275)

09103-12078

2
Out of stock

39

NUT

09159-12081

2
Out of stock

40

UNION,OIL STAND

16591-06B01

1
Out of stock

41

FILTER ASSY, ENGINE OIL

16510-07J00

1
Out of stock
