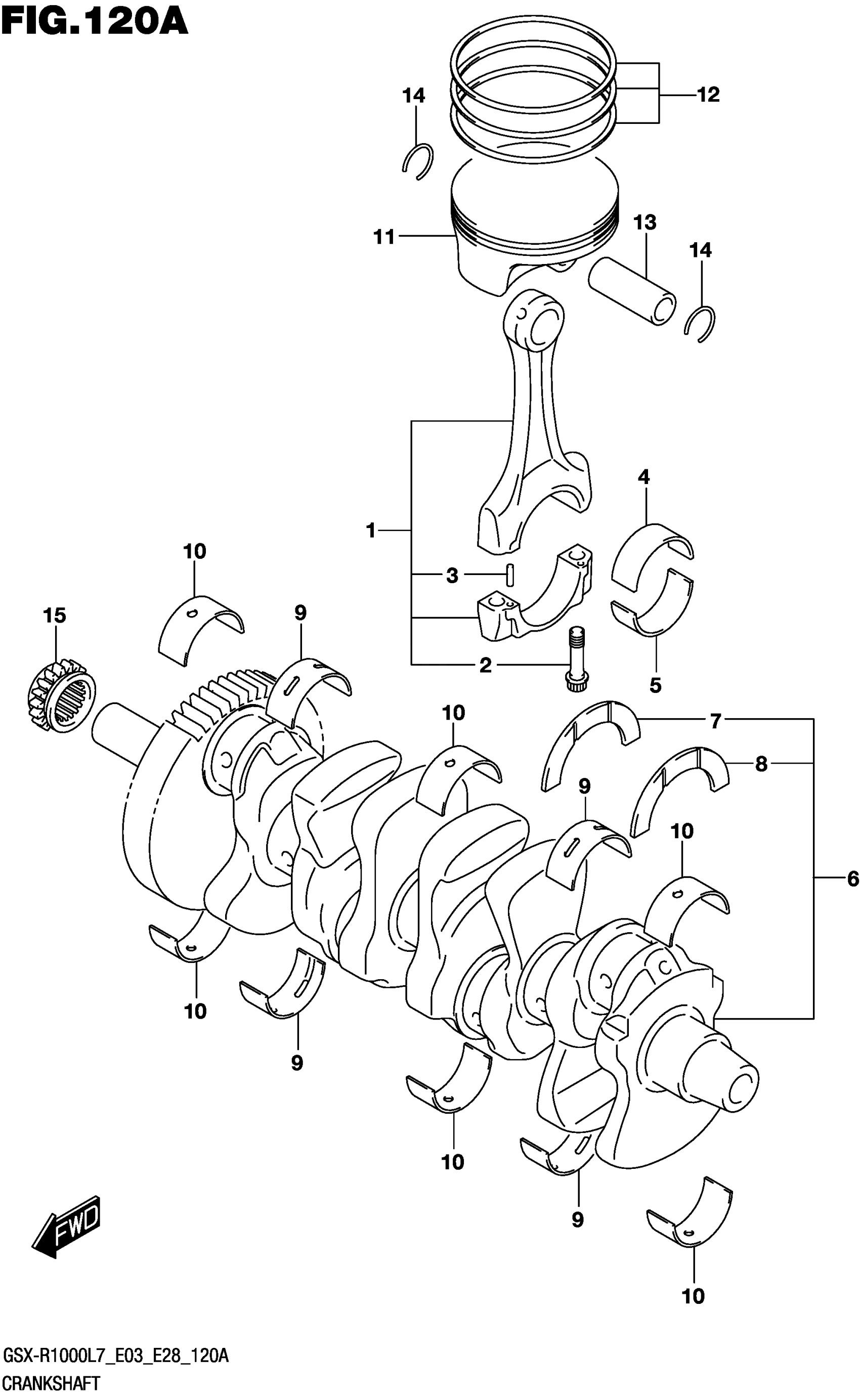

Suzuki GSX-R1000AL (2017) CRANKSHAFT Diagram

#

Description
Price

1

CONNROD ASSY

12160-17K00

$212.77

2

.BOLT,CONNROD

12163-17K00

$12.30

3

.PIN

04221-03059

$1.87

4-1

BEARING, CRANK PIN UPPER

12164-17K00-0A0

$17.39

4-1

(GREEN)

12164-17K00-0A0

$17.39

4-2

BEARING, CRANK PIN UPPER

12164-17K00-0B0

$16.99

4-2

(BLACK)

12164-17K00-0B0

$16.99

4-3

BEARING, CRANK PIN UPPER

12164-17K00-0C0

$16.76

4-3

(BROWN)

12164-17K00-0C0

$16.76

4-4

BEARING, CRANK PIN UPPER

12164-17K00-0D0

Unavailable

4-4

(YELLOW)

12164-17K00-0D0

Unavailable

5-1

BEARING, CRANK PIN LOWER

12164-17K10-0A0

$23.02

5-1

(GREEN)

12164-17K10-0A0

$23.02

5-2

BEARING, CRANK PIN LOWER

12164-17K10-0B0

$17.30

5-2

(BLACK)

12164-17K10-0B0

$17.30

5-3

BEARING, CRANK PIN LOWER

12164-17K10-0C0

$17.30

5-3

(BROWN)

12164-17K10-0C0

$17.30

5-4

BEARING, CRANK PIN LOWER

12164-17K10-0D0

Unavailable

5-4

(YELLOW)

12164-17K10-0D0

Unavailable

6

CRANKSHAFT SET This part replaces 12000-17860.

12000-17880

$1,531.95

7

.BEARING, THRUST RH (GREEN)

12228-48B00-0E0

$9.20

8-1

.BEARING, THRUST LH (BROWN)

12228-48B00-0B0

$9.68

8-2

.BEARING, THRUST LH (RED)

12228-48B00-0C0

$11.10

8-3

.BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

$9.85

8-4

.BEARING, THRUST LH (GREEN)

12228-48B00-0E0

$9.20

8-5

.BEARING, THRUST LH (BLUE)

12228-48B00-0F0

$13.30

8-6

.BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

$13.30

8-7

.BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.50

9-1

BEARING,CRANKSHAFT

12229-17K00-0A0

$25.35

9-2

BEARING,CRANKSHAFT

12229-17K00-0B0

$25.35

9-3

BEARING,CRANKSHAFT

12229-17K00-0C0

$18.27

9-4

BEARING,CRANKSHAFT

12229-17K00-0D0

$18.19

9-5

BEARING,CRANKSHAFT

12229-17K00-0E0

$25.35

10-1

BEARING,CRANKSHAFT

12229-17K10-0A0

$24.98

10-2

BEARING,CRANKSHAFT

12229-17K10-0B0

$25.23

10-3

BEARING,CRANKSHAFT

12229-17K10-0C0

$24.65

10-4

BEARING,CRANKSHAFT

12229-17K10-0D0

$18.19

10-5

BEARING,CRANKSHAFT

12229-17K10-0E0

$25.35

11

PISTON This part replaces 12111-17K00-0F0.

12111-17K02-0F0

$164.22

12

RING SET,PISTON

12140-17K00

$67.72

13

PIN,PISTON

12151-17K00

$43.80

14

CIRCLIP,PISTON PIN This part replaces 12152-17K00.

12152-17K02

$8.02

15

SPROCKET, CAM CHAIN (NT:17)

12731-47H00

$129.13
