2017 Suzuki GSX-R1000AL Handlebar Diagram

← All diagrams

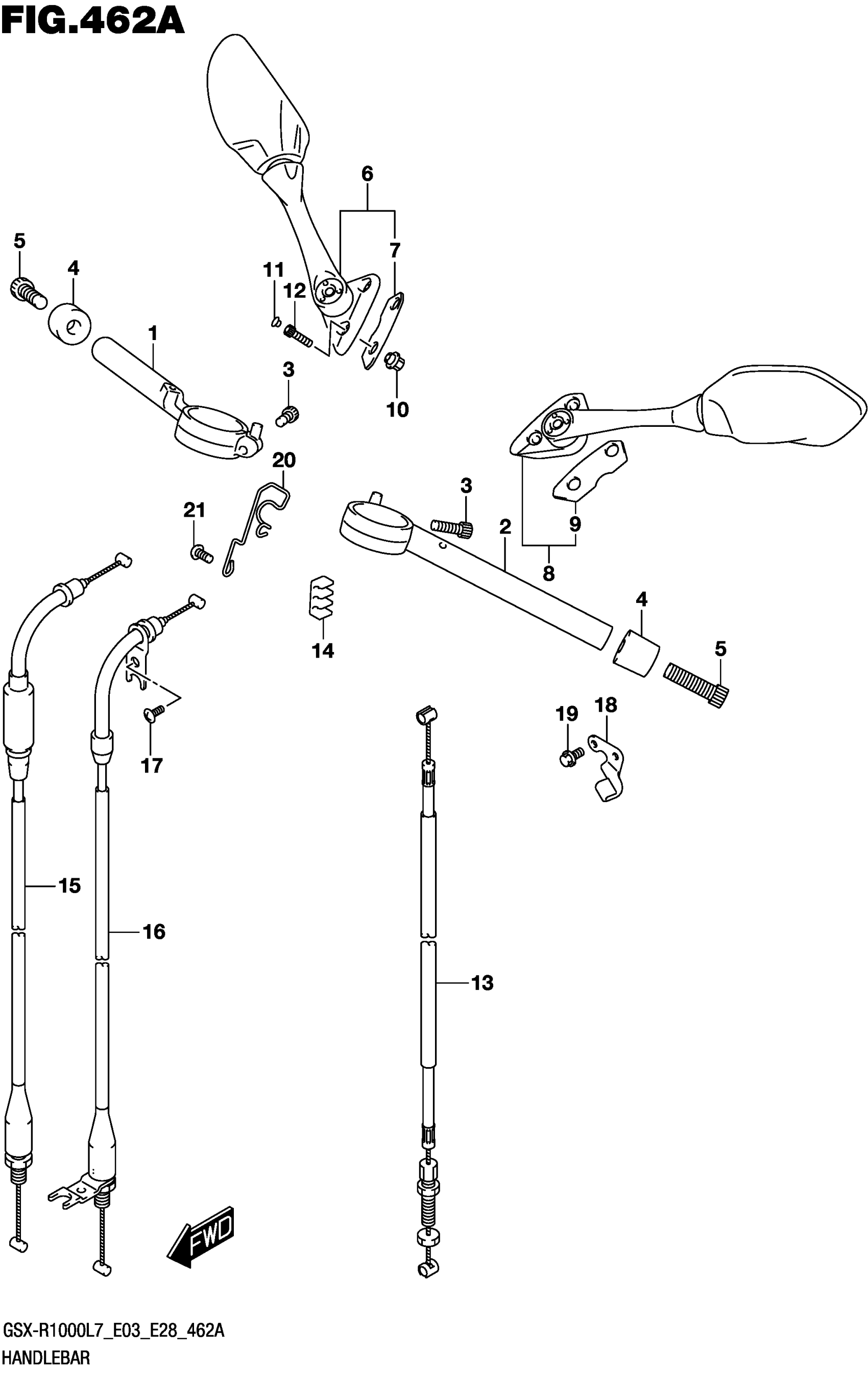

Find the part on the Handlebar diagram for your 2017 Suzuki GSX-R1000AL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-R1000AL Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$98.71

In stock

2

1

$122.77

In stock

3

BOLT (8X32)

09106-08185

2

$2.92

In stock

4

BALANCER,HANDLEBAR

56278-17K00

2

$26.83

In stock

5

BOLT (12X45)

09106-12001

2

$5.62

In stock

6

1

$155.05

In stock

7

.CUSHION,MIRROR

56525-17K00

1

$7.82

In stock

8

1

$148.58

In stock

9

.CUSHION,MIRROR

56525-17K00

1

$7.82

In stock

10

NUT,RR VIEW MIRROR

56619-41G01

4

$9.29

In stock

11

CAP (OD:10)

09250-05009

4
Out of stock

12

BOLT

07130-0620B

4

$3.00

In stock

13

1

$37.48

In stock

14

CLAMP

58285-17K00

1

$4.12

In stock

17

SCREW (5X10)

09125-05042

2
Out of stock

18

STOPPER,CLUTCH CABLE

58635-17K00

1

$13.39

In stock

19

BOLT

01550-0616A

2
Out of stock

20

GUIDE, CABLE

58621-17K00

1

$16.70

In stock

21

SCREW (6X16)

09139-06109

2

$2.92

In stock
