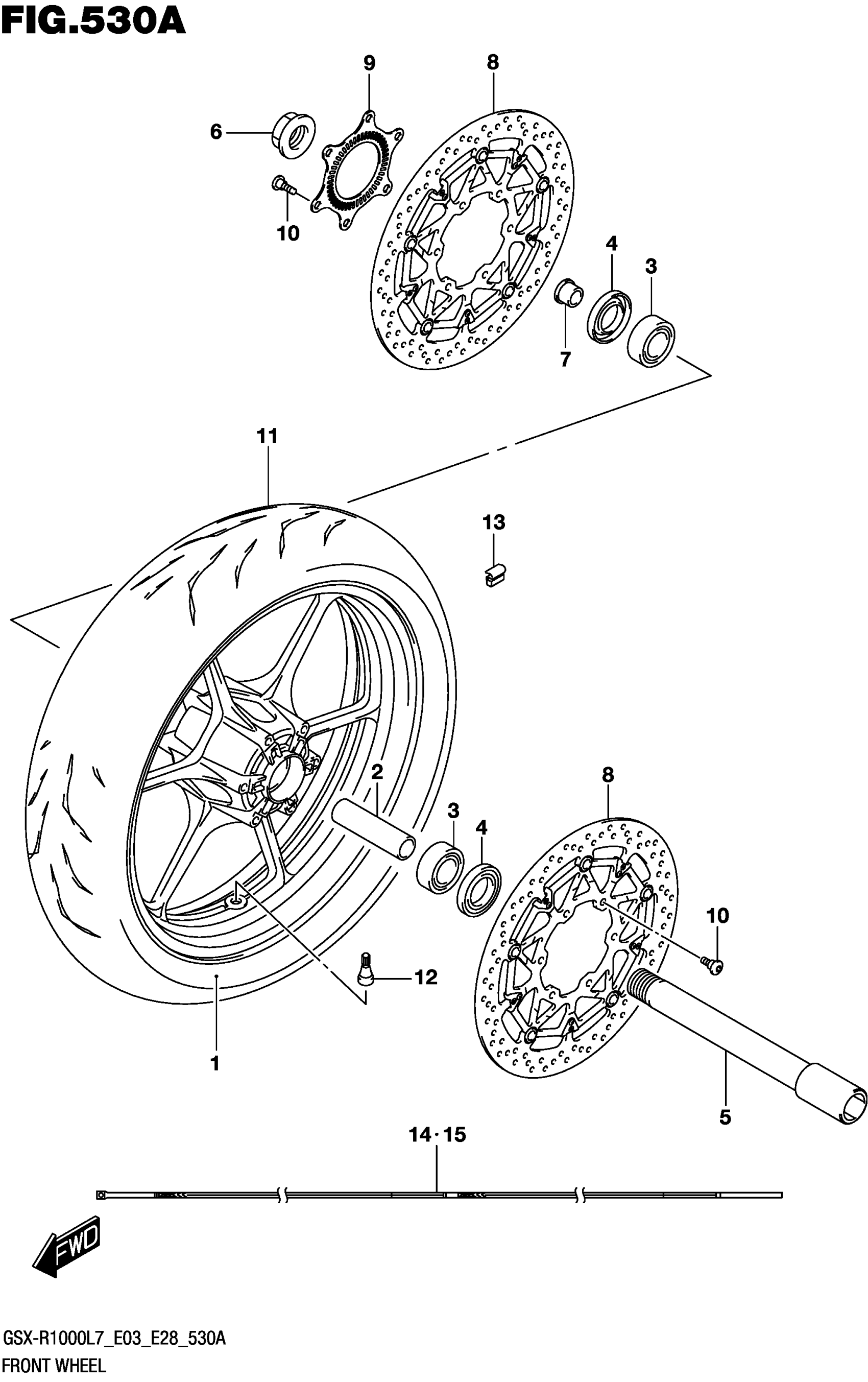

Find the part on the Front Wheel diagram for your 2017 Suzuki GSX-R1000AL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-R1000AL Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

WHEEL, FRONT (17M/CXMT3.50) | FOR YKV

54111-17K00-QGY

1
Out of stock

1-1

(RED)

54111-17K00-QGY

1
Out of stock

1-2

WHEEL, FRONT (17M/CXMT3.50) | FOR YSF,YVZ

54111-17K00-019

1
Out of stock

1-2

(BLACK)

54111-17K00-019

1
Out of stock

2

SPACER,FR HUB BEARING

54731-35F10

1
Out of stock

3

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

2
Out of stock

4

.SEAL,OIL (32X52X7)

09285-32004

2
Out of stock

5

AXLE,FR

54711-47H00

1
Out of stock

6

NUT, FRONT AXLE

54712-47H00

1
Out of stock

7

SPACER, FRONT AXLE, RH

54751-41G10

1
Out of stock

8

DISC,FRONT BRAKE This part replaces 59210-17K00.

59210-17K01

2
Out of stock

9

RING,SPEED SENSOR FR (48T)

54162-47H00

1
Out of stock

10

BOLT (6X23)

09106-06134

12
Out of stock

11

1

$322.72

In stock

11

(58W) | BRIDGESTONE

55110-17K00

1

$322.72

In stock

12

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

13-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

1
Out of stock

13-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

1
Out of stock

13-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

1
Out of stock

14-1

1

$65.53

In stock

14-2

1

$68.50

In stock

15-1

1

$65.53

In stock

15-2

1

$68.50

In stock
