2009 Suzuki GSX-R1000 Intake Pipe Diagram

← All diagrams

Find the part on the Intake Pipe diagram for your 2009 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

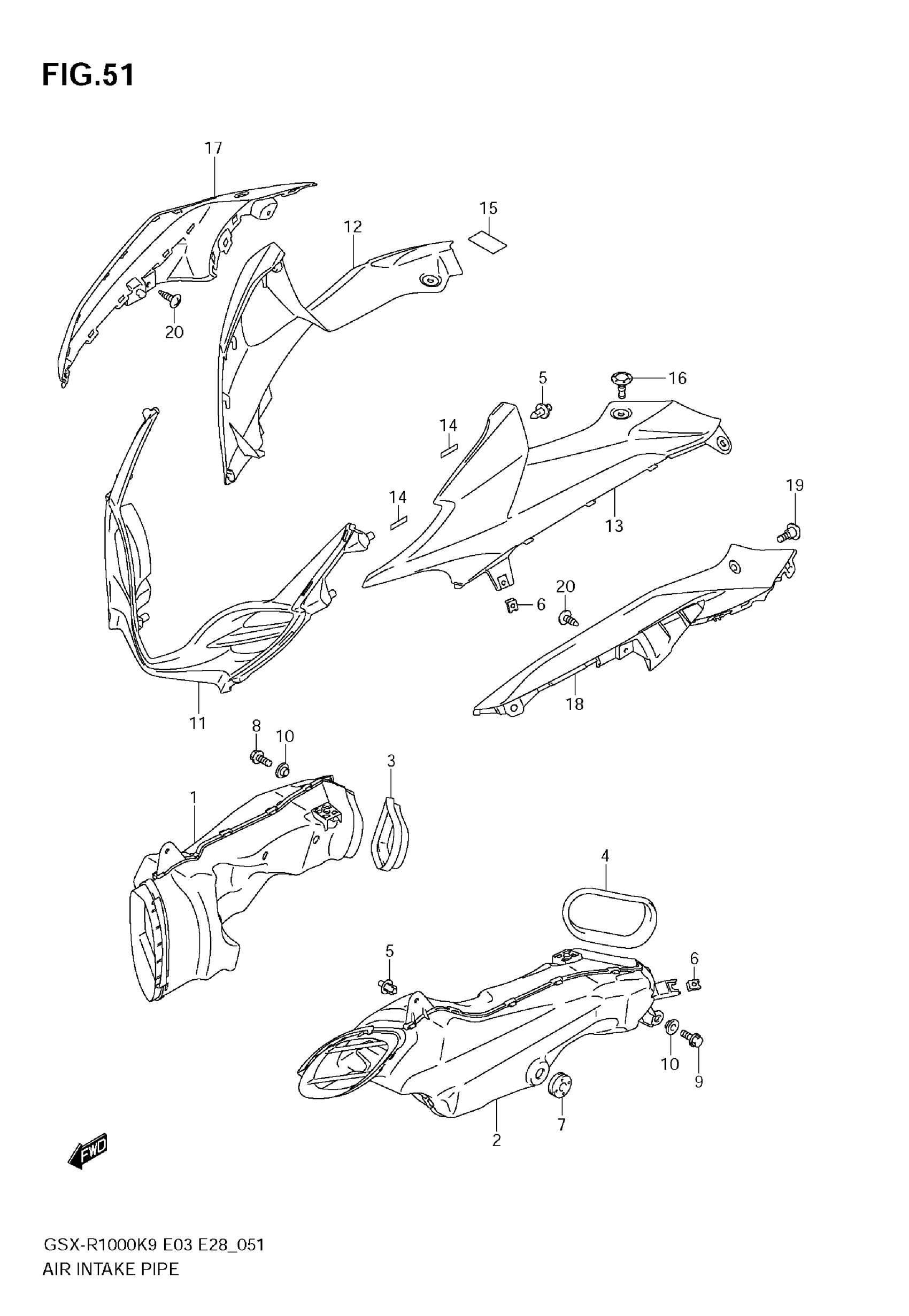

2009 Suzuki GSX-R1000 Intake Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, AIR INTAKE RH

94420-47H00

1
Out of stock

2

PIPE, AIR INTAKE LH

94430-47H00

1
Out of stock

3

MOLDING, RH

94423-47H00

1
Out of stock

4

MOLDING, LH

94433-47H00

1
Out of stock

5

CLIP (BLACK)

09409-06314-5PK

4
Out of stock

6

NUT

09148-05052

4
Out of stock

7

CUSHION

09320-08028

2
Out of stock

8

BOLT, RH

01550-0620A

1
Out of stock

9

BOLT, LH

01550-0616A

1
Out of stock

10

WASHER

09169-06082

2
Out of stock

11

COVER, INTAKE FRONT (SILVER) This part replaces 94671-47H00-YKV.

94671-47H10-YKV

1
Out of stock

12

COVER, INTAKE RH (BLACK) | FOR CRU This part replaces 94672-47H00-YKV.

94672-47H10-YKV

1
Out of stock

12

COVER, INTAKE RH (SILVER) | FOR FGF

94672-47H00-YMD

—
Out of stock

12

COVER, INTAKE RH (WHITE) | FOR GLR This part replaces 94672-47H00-YBD.

94672-47H10-YBD

1
Out of stock

12

COVER,INTAKE,R( | FOR GRD This part replaces 94672-47H00-YMK.

94672-47H10-YMK

1
Out of stock

13

COVER, INTAKE LH (BLACK) | FOR CRU This part replaces 94682-47H00-YKV.

94682-47H10-YKV

1
Out of stock

13

COVER, INTAKE LH (SILVER) | FOR FGF

94682-47H00-YMD

—
Out of stock

13

COVER, INTAKE LH (WHITE) | FOR GLR This part replaces 94682-47H00-YBD.

94682-47H10-YBD

1
Out of stock

13

COVER,INTK,L(UN | FOR GRD This part replaces 94682-47H00-YMK.

94682-47H10-13L

1
Out of stock

14

TAPE

94443-06G00

4
Out of stock

15

CUSHION

33652-29F00

2
Out of stock

16

CLIP

94479-35F00

2
Out of stock

17

COWL, SIDE UPPER RH (SILVER)

94473-47H00-YUS

1
Out of stock

18

COWL, SIDE UPPER LH (SILVER)

94483-47H00-YUS

1
Out of stock

19

SCREW, UPPER

09139-05077

2
Out of stock

20

SCREW

03541-0516A

4
Out of stock
