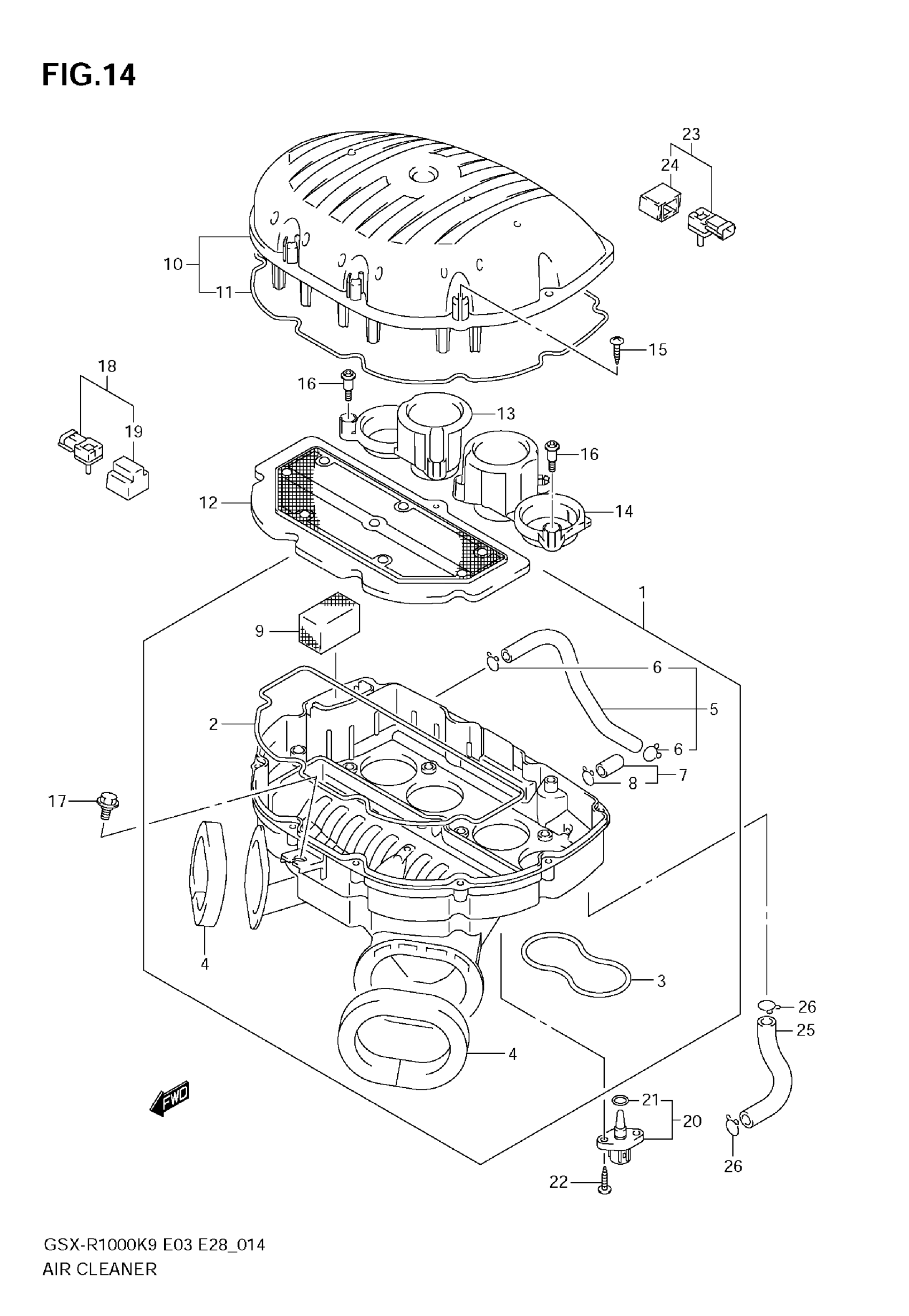

Suzuki GSX-R1000 (2009) AIR CLEANER Diagram

#

Description
Price

1

CASE,AIR CLEANE | Includes Item(s) 2 - 9 This part replaces 13720-47H00.

13720-47H02

$166.58

2

GASKET, CASE

13756-47H00

$6.83

3

GASKET, CASE

13757-47H00

$4.82

4

CUSHION, DUCT

13736-01H00

$8.95

5

TUBE,BREATHER This part replaces 13850-47H00.

13850-47H01

$26.42

6

CLIP

09401-14101

$2.37

7

PLUG ASSY, DRAIN

13856-19B03

$12.35

8

CLIP

09401-14101

$2.37

9

FILTER, BREATHER

13788-47H00

$5.32

10

CAP, AIR CLEANER | Includes Item(s) 11

13740-47H00

Unavailable

11

GASKET, CAP

13746-47H00

$9.17

12

FILTER ASSY

13780-47H00

$54.30

13

FUNNEL, OUTLET RH

13881-47H00

Unavailable

14

FUNNEL, OUTLET LH

13882-47H00

Unavailable

15

SCREW

03541-0525B

$2.34

16

BOLT

13831-47H00

$7.73

17

BOLT

09111-06089

$2.61

18

SENSOR, BOOST | Includes Item(s) 19

15630-29G20

$315.90

19

COVER

15625-29G10

Unavailable

20

SENSOR, AIR TEMP | Includes Item(s) 21 This part replaces 13650-14G11.

13650-14G10

$47.66

21

O RING

13655-14G10

$11.18

22

BOLT

03511-0516A

$1.88

23

SENSOR, AIR PRESSURE | Includes Item(s) 24

15630-29G10

$304.30

24

COVER

15625-29G00

$14.00

25

HOSE, ISC VALVE

13697-47H00

Unavailable

26

CLIP

09401-15101

$2.28
