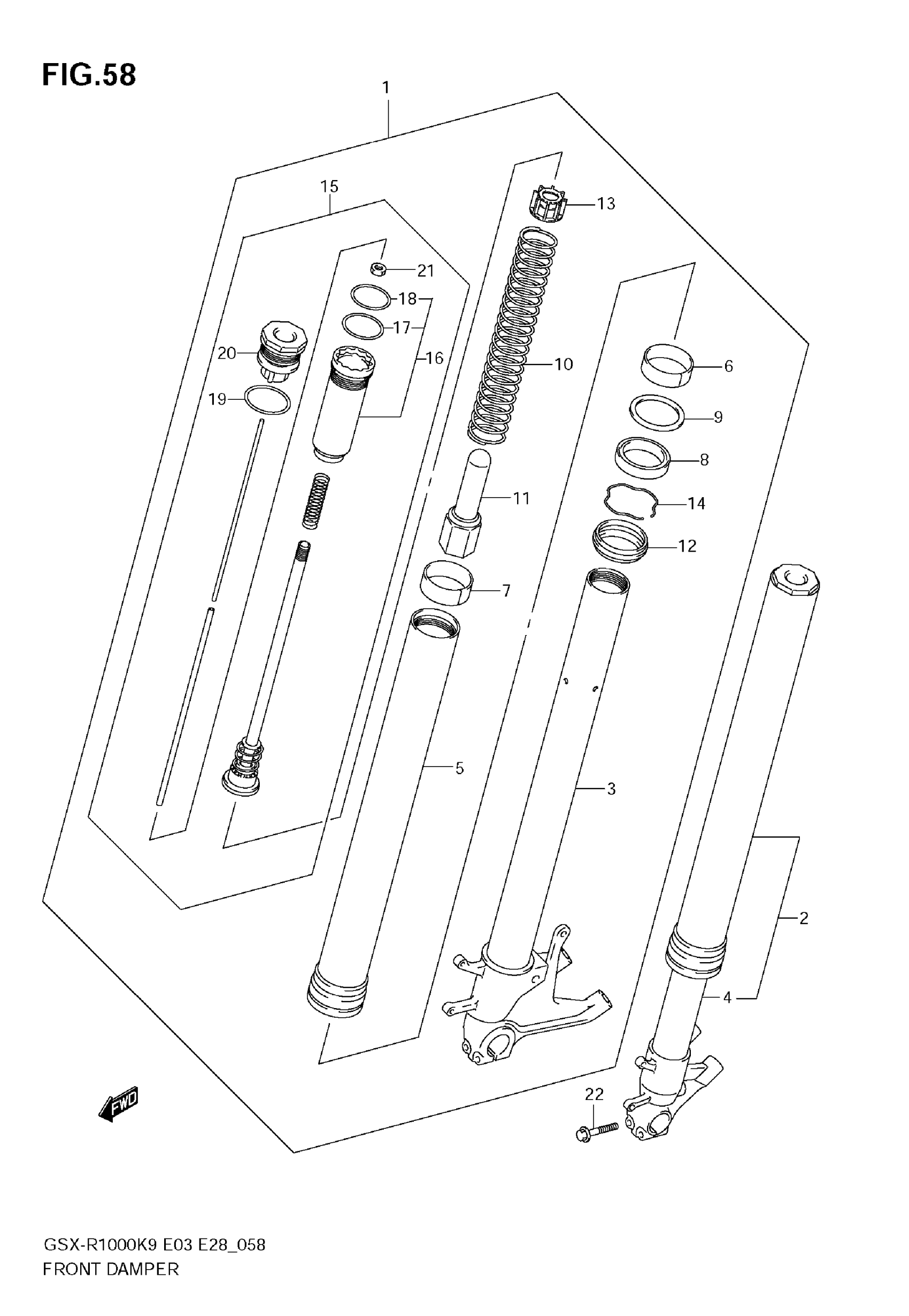

Find the part on the Front Damper diagram for your 2009 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX-R1000 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-47H00

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 21

51104-47H00

1
Out of stock

3

TUBE, INNER RH

51110-47H00

1

$867.68

In stock

4

TUBE, INNER LH

51120-47H00

1
Out of stock

5

TUBE, OUTER

51131-47H00

2
Out of stock

6

.BUSH, GUIDE

51152-47H00

2
Out of stock

7

BUSH, SLIDE

51152-47H10

2
Out of stock

8

SEAL, OIL

51153-47H00

2
Out of stock

9

SPACER, SEAL

51168-29G00

2
Out of stock

10

SPRING

51171-47H00

2
Out of stock

11

COLLAR, SPRING

51172-47H00

2
Out of stock

12

.SEAL, DUST

51173-27G00

2
Out of stock

13

COLLAR, SPRING

51175-47H00

2
Out of stock

14

RING, STOPPER

51556-38B00

2
Out of stock

15

ROD, PISTON

52110-47H00

2

$837.78

In stock

16

CASE, ROD GUIDE

51174-47H00

2

$212.47

In stock

17

RING, PISTON

51118-47H00

2
Out of stock

18

O-RING

51187-47H10

2
Out of stock

19

..O-RING

51187-47H00

2
Out of stock

20

BOLT

51189-47H00

2
Out of stock

21

NUT

51827-29G00

2
Out of stock

22

BOLT

51321-36F00

4
Out of stock
