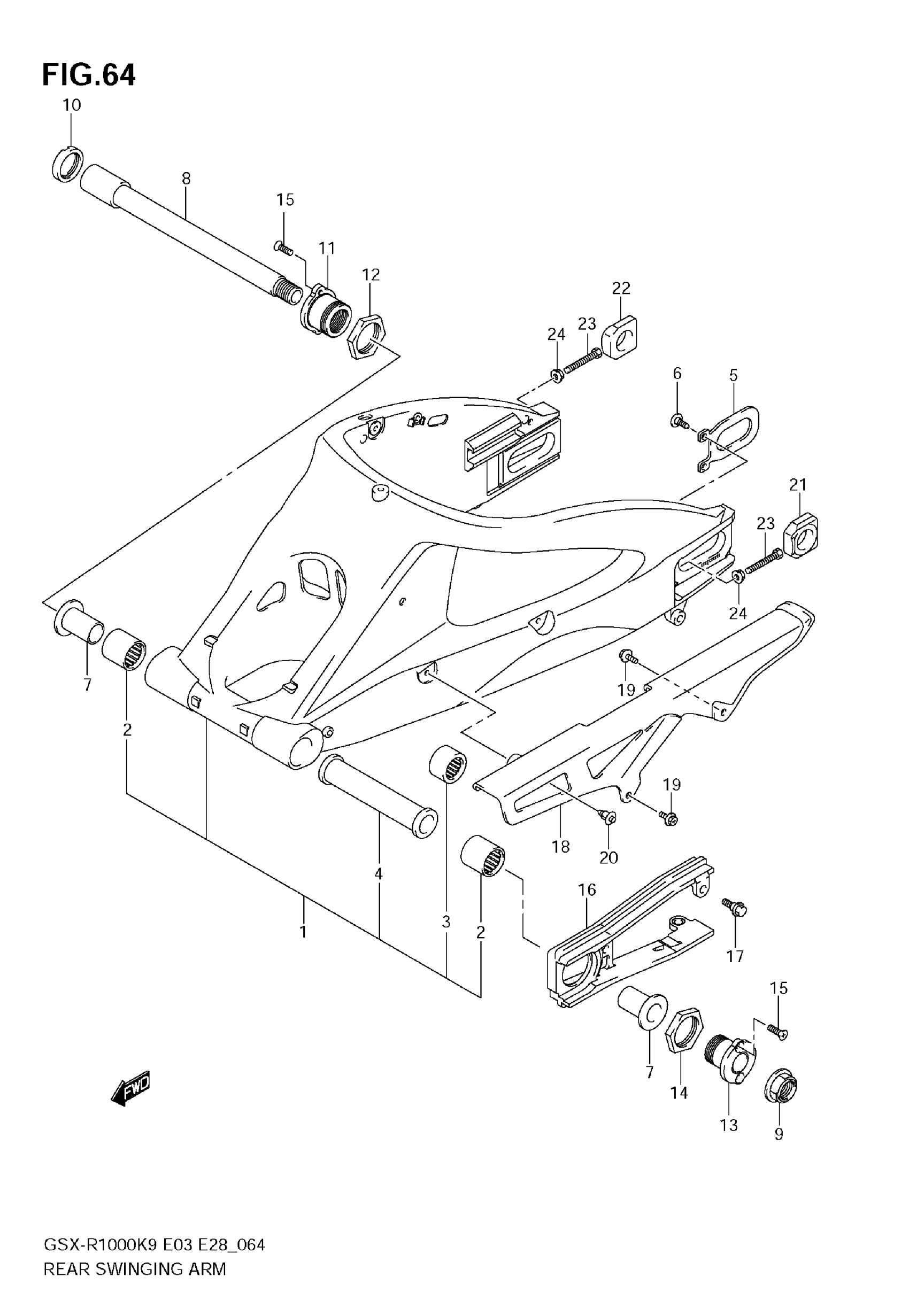

Suzuki GSX-R1000 (2009) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGINGARM ASS | Includes Item(s) 2 - 4 This part replaces 61000-47H00-YAP.

61000-47H11-YAP

$2,488.25

2

.BEARING (27X35X35) This part replaces 09263-27013.

09263-27015

$24.86

3

BEARING, CUSHION ROD

09263-20070

$41.00

4

SPACER, CENTER

61281-41G00

$62.83

5

PLATE,RR SWGARM BRKT

61124-41G00

$9.87

6

SCREW

09125-06060

$1.95

7

SPACER, BEARING

61251-41G00

$36.12

8

SHAFT, PIVOT

61211-47H00

Unavailable

9

NUT

09159-20006

$34.67

10

NUT, PIVOT This part replaces 61214-42E00.

61214-42E10

$48.00

11

BOSS, RR SWGARM PIVOT, R

61212-47H00

Unavailable

12

NUT, RR SWGARM PIVOT BOSS, R

61213-41G00

$29.01

13

BOSS, RR SWGARM PIVOT, L

61214-47H00

Unavailable

14

NUT, RR SWGARM PIVOT BOSS, L

61215-41G00

$37.23

15

SCREW, BOSS

02122-0512B

$0.89

16

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-47H00.

61273-47H01

$26.81

17

SCREW

09111-06072

$2.01

18

CASE, CHAIN NO.1

61311-21H00

$71.75

19

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

20

CLIP

09409-08308-5ES

$1.97

21

ADJUSTER, CHAIN, R This part replaces 61445-40F20.

61445-40F00

$43.20

22

ADJUSTER, CHAIN, L This part replaces 61446-40F10.

61446-40F00

$43.20

23

BOLT (8X50)

09100-08305

$3.19

24

NUT

08316-1008A

$2.47
