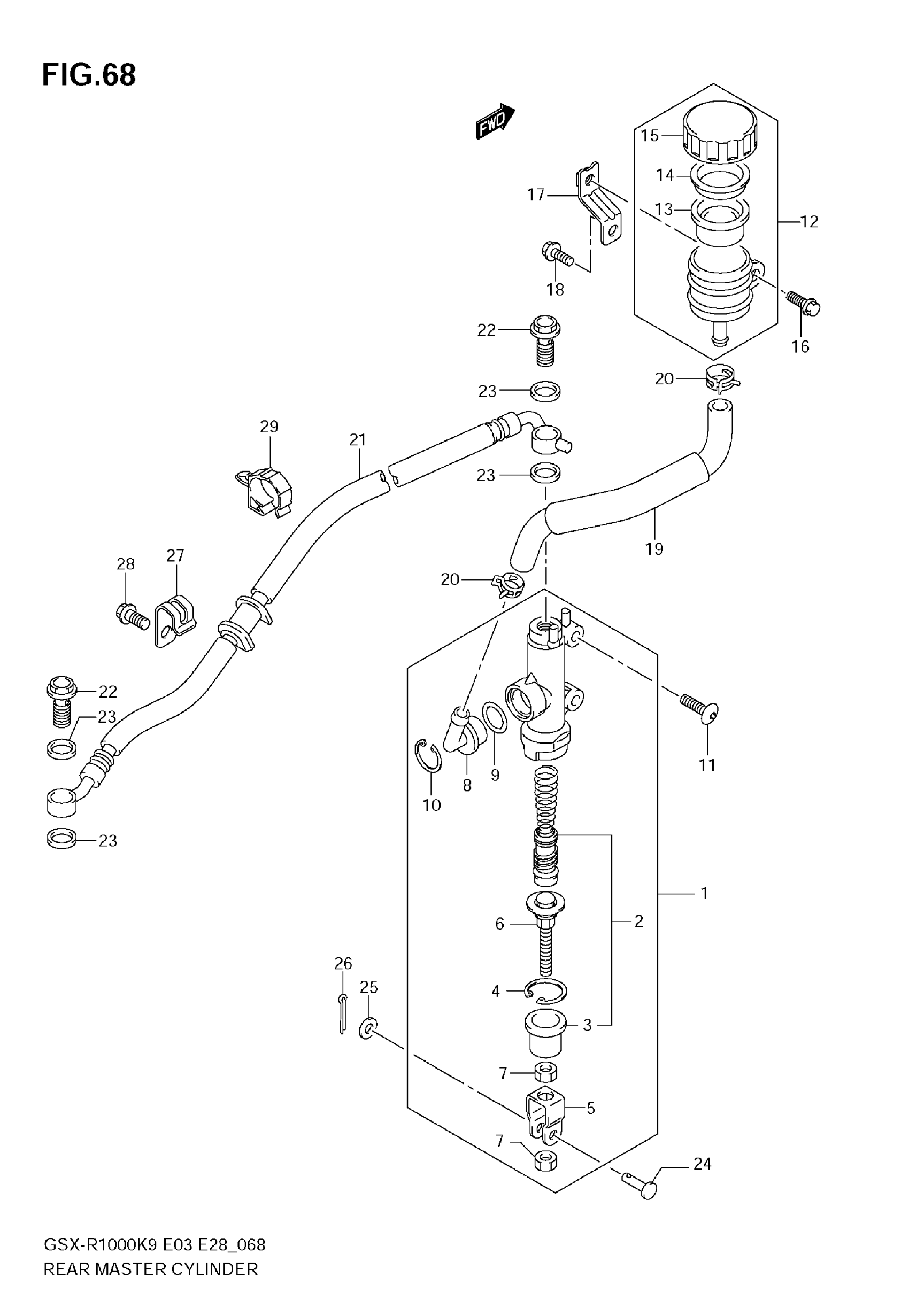

Suzuki GSX-R1000 (2009) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 10

69600-47H00

$348.28

2

PISTON / CAP SET

69600-34810

$63.75

3

.BOOT

69691-00A00

$5.00

4

CIRCLIP

69665-47H00

$5.65

5

YOKE

69692-27A30

$13.02

6

ROD, PUSH

69670-48B00

$35.80

7

NUT

69693-05A00

$1.86

8

CONNECTOR

69672-00B20

$6.42

9

O RING

69686-34200

$2.80

10

CIRCLIP

69674-00B20

$3.73

11

BOLT

09139-06125

$2.80

12

TANK ASSY,RR RESERVOIR | Includes Item(s) 13 - 15

69740-47H00

$90.32

13

DIAPHRAGM

69667-00B20

$20.82

14

PLATE, DIAPHRAGM

69668-00B20

$8.65

15

CAP

69669-47H00

$9.70

16

BOLT

01547-0616A

$2.01

17

BRACKET, RR RESERVOIR TANK

69750-47H00

$14.73

18

BOLT

01547-0612A

$2.01

19

HOSE, RESERVOIR TANK

69730-47H00

Unavailable

20

CLAMP

09401-12404

$2.37

21

HOSE,RR BRAKE This part replaces 69480-47H00.

69480-47H01

$110.15

22

BOLT (10X1.25X22)

09360-10065

$9.70

23

WASHER (10X15X1.5)

09161-10009

$1.83

24

PIN

09200-06068

$3.71

25

WASHER

08322-0106A

$1.83

26

PIN, COTTER

04111-2015A

$1.22

27

CLAMP,RR BRAKE HOSE

69268-21H00

$8.73

28

BOLT

01547-0612A

$2.01

29

GUIDE, RR BRAKE HOSE NO.2

09403-17306

$2.64
