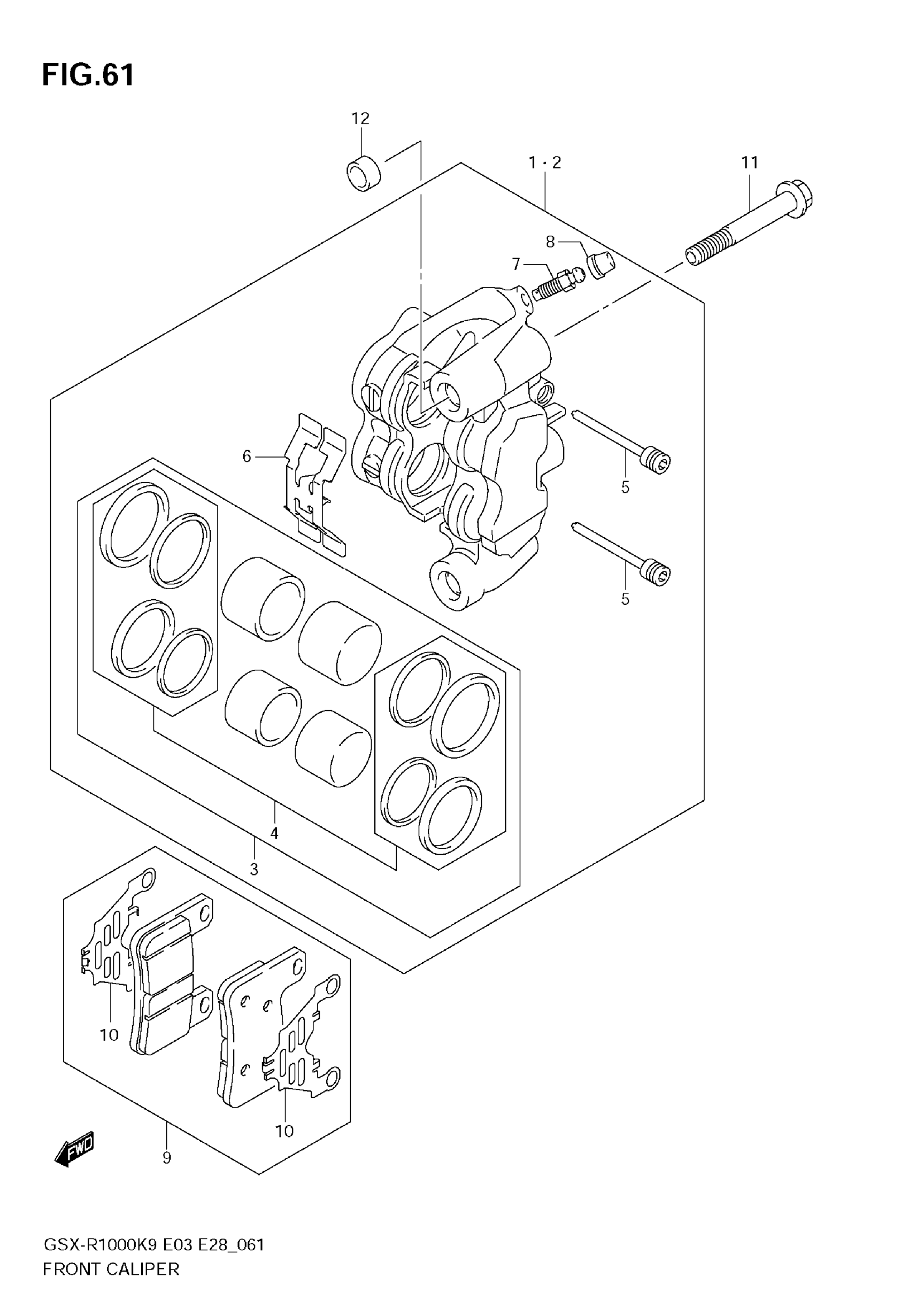

Suzuki GSX-R1000 (2009) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-47H00-999

$641.33

2

CALIPER ASSY, FRONT LH | Includes Item(s) 3 - 8

59300-47H00-999

Unavailable

3

PISTON SET

59100-47880

$289.17

4

SEAL SET, PISTON

59101-47810

$106.00

5

.PIN This part replaces 59141-41G00.

59141-41G10

$24.71

6

SPRING, PAD

59151-29G00

$11.75

7

BLEEDER

59121-18410

$7.99

8

CAP

55156-66310

$4.73

9

PAD & SHIM SET | Includes Item(s) 10

59100-47890

$66.27

10

SHIM

59171-47H00

Unavailable

11

BOLT

09103-10429

$13.88

12

PIN, CALIPER

59151-41G00

$10.96
