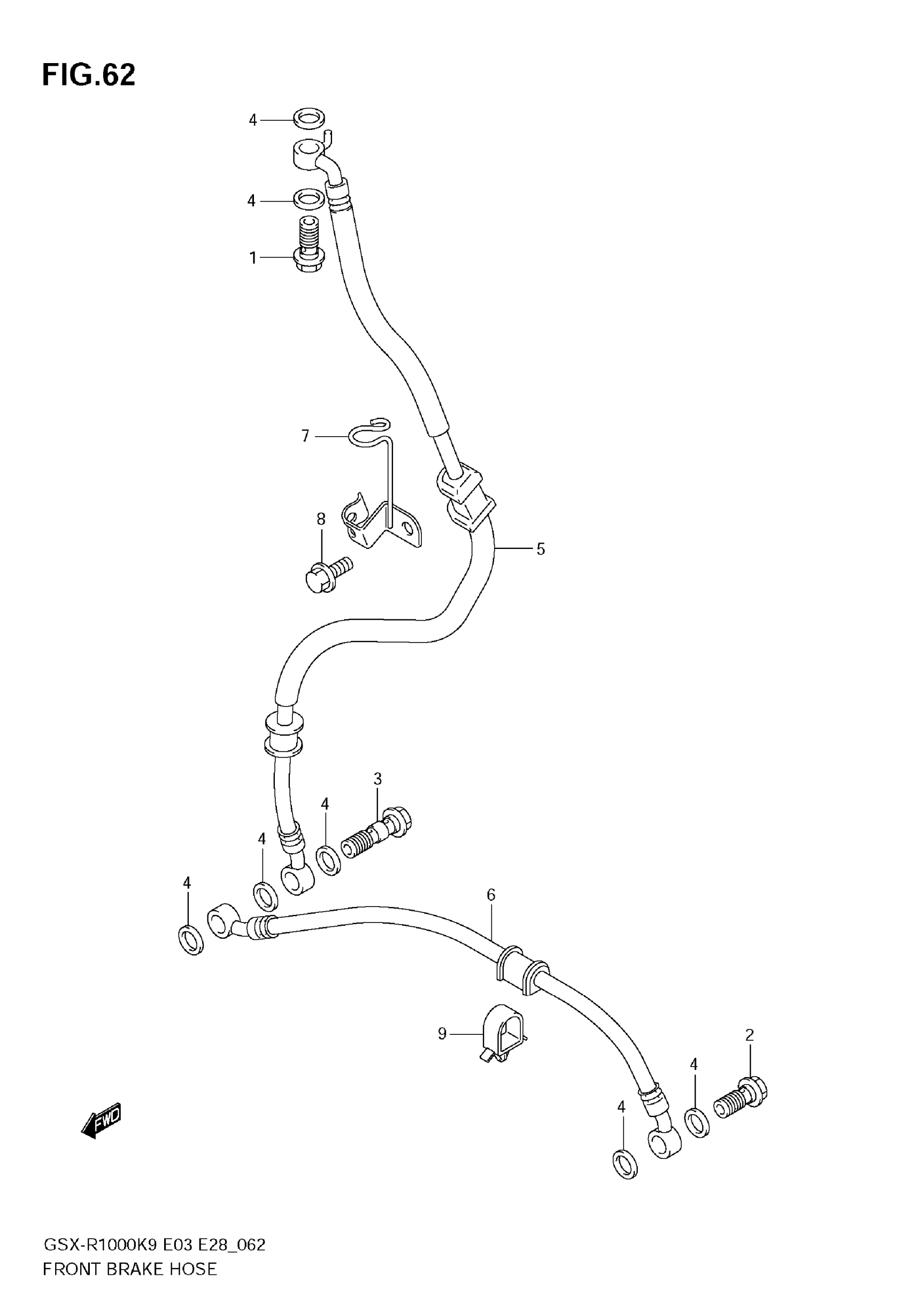

Suzuki GSX-R1000 (2009) FRONT BRAKE HOSE Diagram

#

Description

Price

1

BOLT, UPPER (10X1.25X22)

09360-10065

$9.70

2

BOLT, LH (10X1.25X22)

09360-10062

$5.81

3

BOLT, RH (10X1.25X36)

09360-10064

$5.81

4

WASHER (10X15X1.5)

09161-10009

$1.83

5

HOSE This part replaces 59480-47H00.

59480-47H01

$124.47

6

HOSE This part replaces 59240-47H00.

59240-47H01

$92.77

7

CLAMP,FR BK HOSE NO.1

59260-47H00

$30.62

8

BOLT

01547-0612A

$2.01

9

CLAMP, BRAKE HOSE NO.2

09403-16413

$4.53
