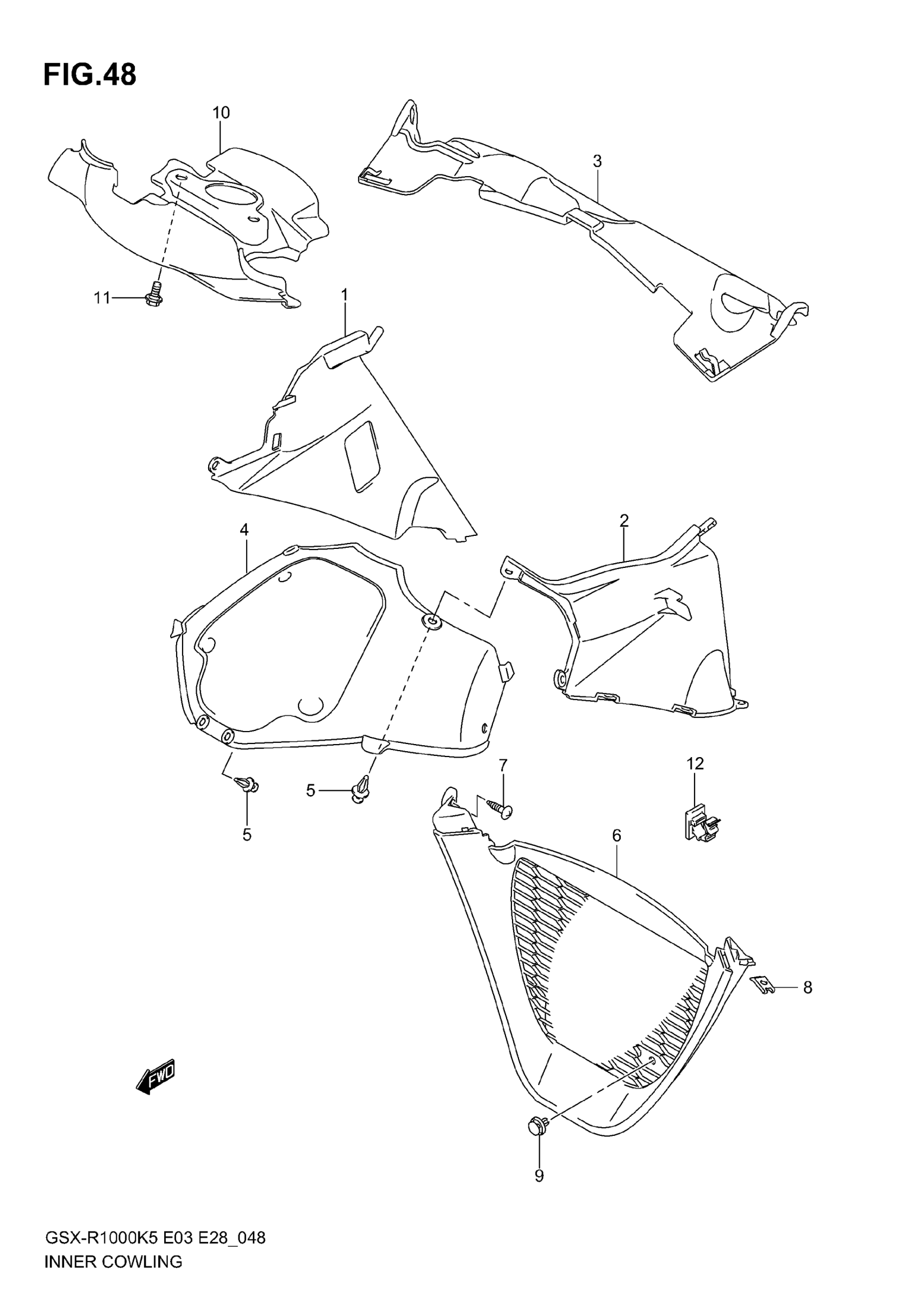

Suzuki GSX-R1000 (2006) INNER COWLING Diagram

#

Description
Price

1

COWL, UNDER INNER RH

94461-41G00

Unavailable

2

COWL, UNDER INNER LH

94462-41G00

Unavailable

3

COVER, FRONT LOWER

94457-41G00

$66.42

4

COVER, BODY COWL

94419-41G00

Unavailable

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

COWL, UNDER CENTER

94498-41G00

$67.97

7

SCREW This part replaces 03541-05203.

03541-0520A

$1.88

8

NUT, LH

09148-05038

$2.01

9

CLIP

94479-35F00

$5.38

10

COVER, LOWER BRACKET

94458-41G00

Unavailable

11

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

12

CLAMP

09403-14311

$5.05
