2006 Suzuki GSX-R1000 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2006 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

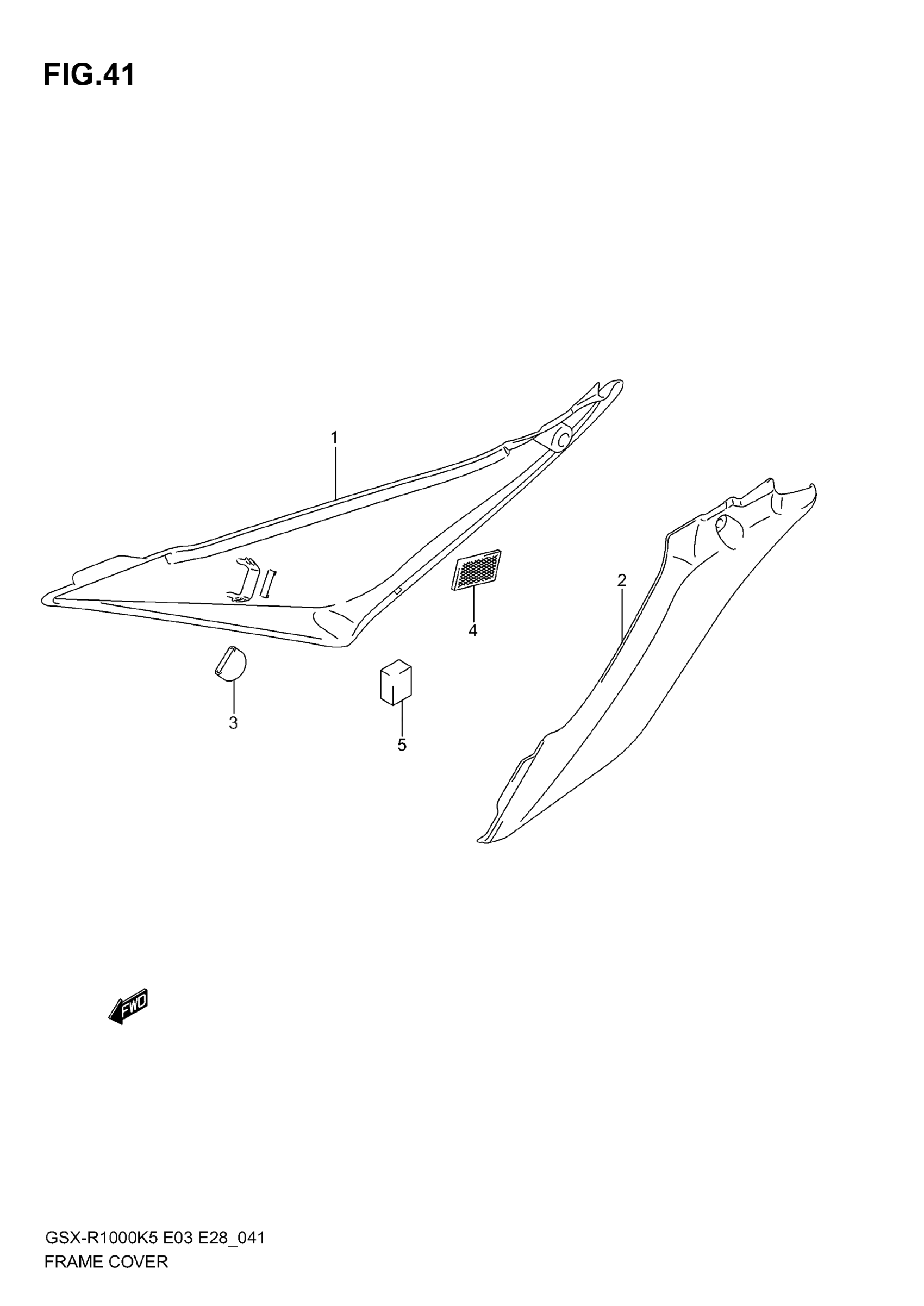

2006 Suzuki GSX-R1000 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (BLACK)

47111-41G00-291

1

$91.98

In stock

2

COVER, FRAME LH (BLACK)

47211-41G00-291

1

$91.98

In stock

3

CUSHION

44277-29G00

2

$5.24

In stock

4

FASTENER

44572-13G00

2
Out of stock

5

2

$6.65

In stock
