2006 Suzuki GSX-R1000 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2006 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

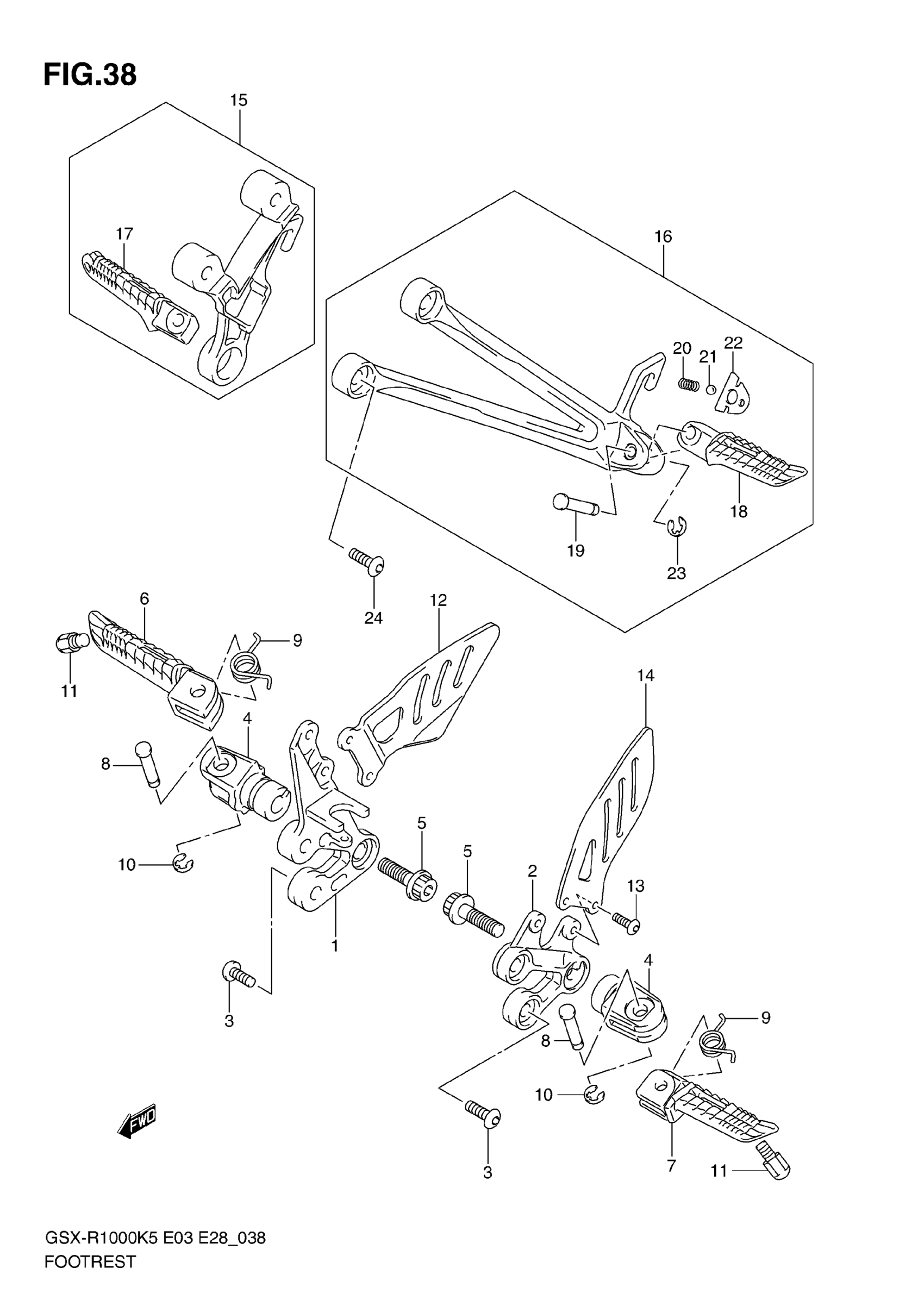

2006 Suzuki GSX-R1000 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST RH

43511-41G00

1
Out of stock

2

BRACKET, FRONT FOOTREST LH

43521-41G00

1
Out of stock

3

BOLT, BRACKET

09106-08150

4
Out of stock

4

HOLDER, FOOTREST This part replaces 43531-41G00.

43531-41G10

2
Out of stock

5

BOLT, HOLDER

09106-10064

2
Out of stock

6

BAR, FRONT FOOTREST RH

43516-41G00

1
Out of stock

7

BAR, FRONT FOOTREST LH

43526-41G00

1
Out of stock

8

PIN

09208-08010

2
Out of stock

9

SPRING

09448-14037

2
Out of stock

10

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock

11

.BOLT,BANK SENSOR

43576-07D01

2
Out of stock

12

GUARD,FRONT FOO This part replaces 43571-41G00.

43571-41G01

1
Out of stock

13

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

2
Out of stock

14

GUARD,FRONT FOO This part replaces 43576-41G00.

43576-41G01

1
Out of stock

15

FOOTREST ASSY, PILLION RH

43600-41G00

1
Out of stock

16

FOOTREST ASSY, PILLION LH | Includes Item(s) 17 - 23

43700-41G00

1
Out of stock

17

BAR, PILLION RH

43611-41G00

1
Out of stock

18

BAR, PILLION LH

43621-41G00

1
Out of stock

19

PIN

09208-08011

2
Out of stock

20

SPRING

09440-05005

2
Out of stock

21

BALL

06111-07004

2
Out of stock

22

PLATE

43816-41G00

2
Out of stock

23

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock

24

BOLT, BRACKET

09106-08150

4
Out of stock
