Description

Price

1

GASKET SET | OPT; Includes Item(s) 2 - 18 This part replaces 11403-41811.

11403-41813

$229.86

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-40F00

$85.60

3

GASKET, CYLINDER HEAD COVER NO.1 | NOT SHOWN

11173-35F00

$47.42

4

GASKET, CYLINDER HEAD COVER NO.2 | NOT SHOWN

11178-33E00

$5.93

5

COVER, 2ND AIR PASSAGE | NOT SHOWN

11182-35F00

$3.15

6

WASHER, HEAD COVER | NOT SHOWN

09161-11008

$4.17

7

.GASKET, CLUTCH COVER | NOT SHOWN This part replaces 11482-40F00.

11482-40F10

$15.01

8

GASKET, STARTER CLUTCH COVER | NOT SHOWN

11491-33E02

$8.35

9

.O-RING (D:3.1,ID:32.7) | NOT SHOWN

09280-33004

$2.31

10

GASKET, STARTER IDLE GEAR CAP | NOT SHOWN

11492-33E00

$6.91

11

GASKET, MAGNETO COVER | NOT SHOWN

11483-18G00

$10.59

12

GASKET, BREATHER COVER | NOT SHOWN

11484-35F00

$4.73

13

GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-18G00

$4.57

14

GASKET | NOT SHOWN This part replaces 14181-46E00.

14181-46E10

$6.91

15

O RING, MUFFLER FRONT | NOT SHOWN

09280-12012

$4.32

16

O RING, OIL PUMP | NOT SHOWN

16491-35F00

$5.95

17

O RING, OIL STRAINER | NOT SHOWN

09280-19008

$5.11

18

O-RING | NOT SHOWN

15201-35F00

$26.41

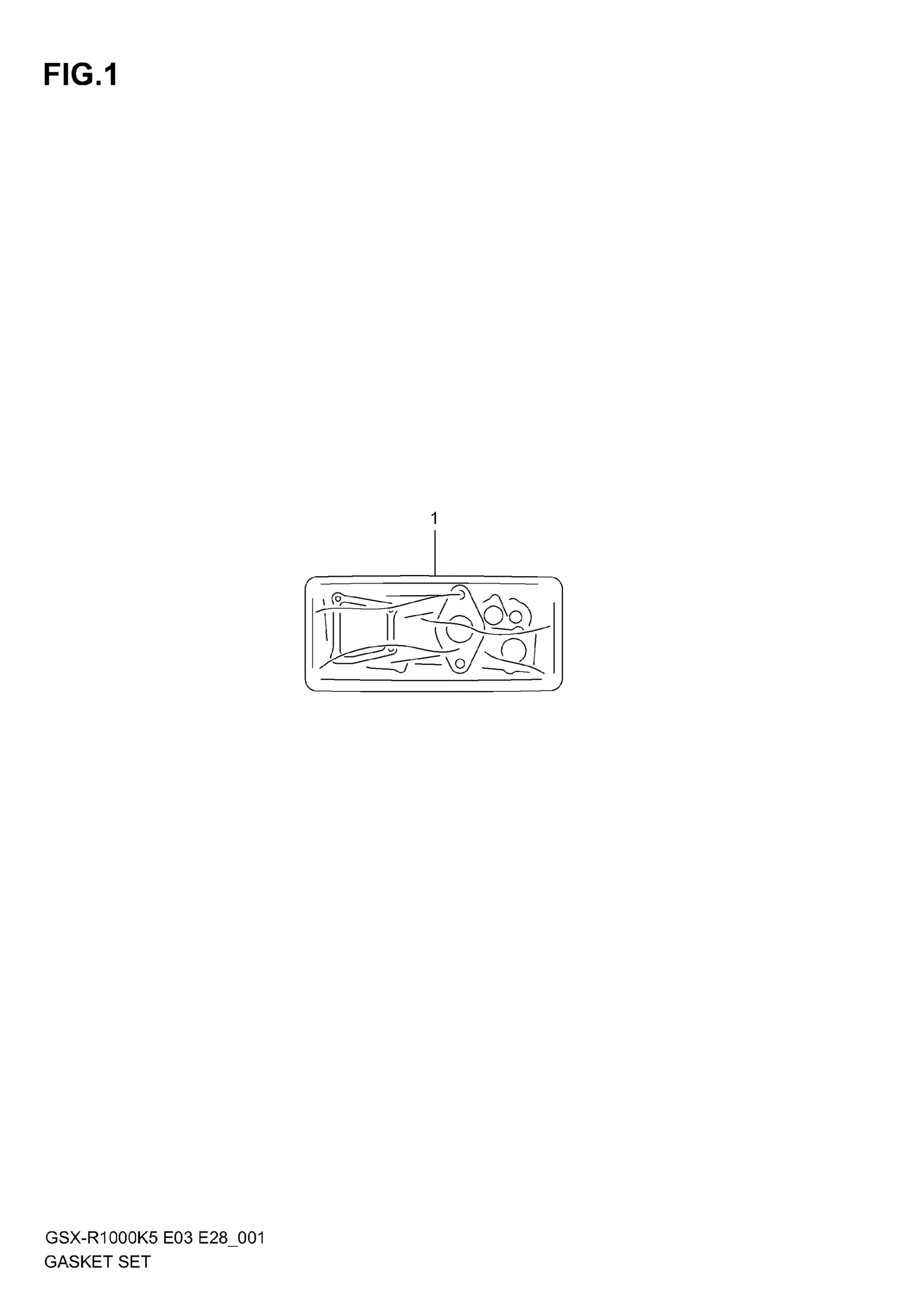

Suzuki GSX-R1000 (2006) GASKET SET Diagram
