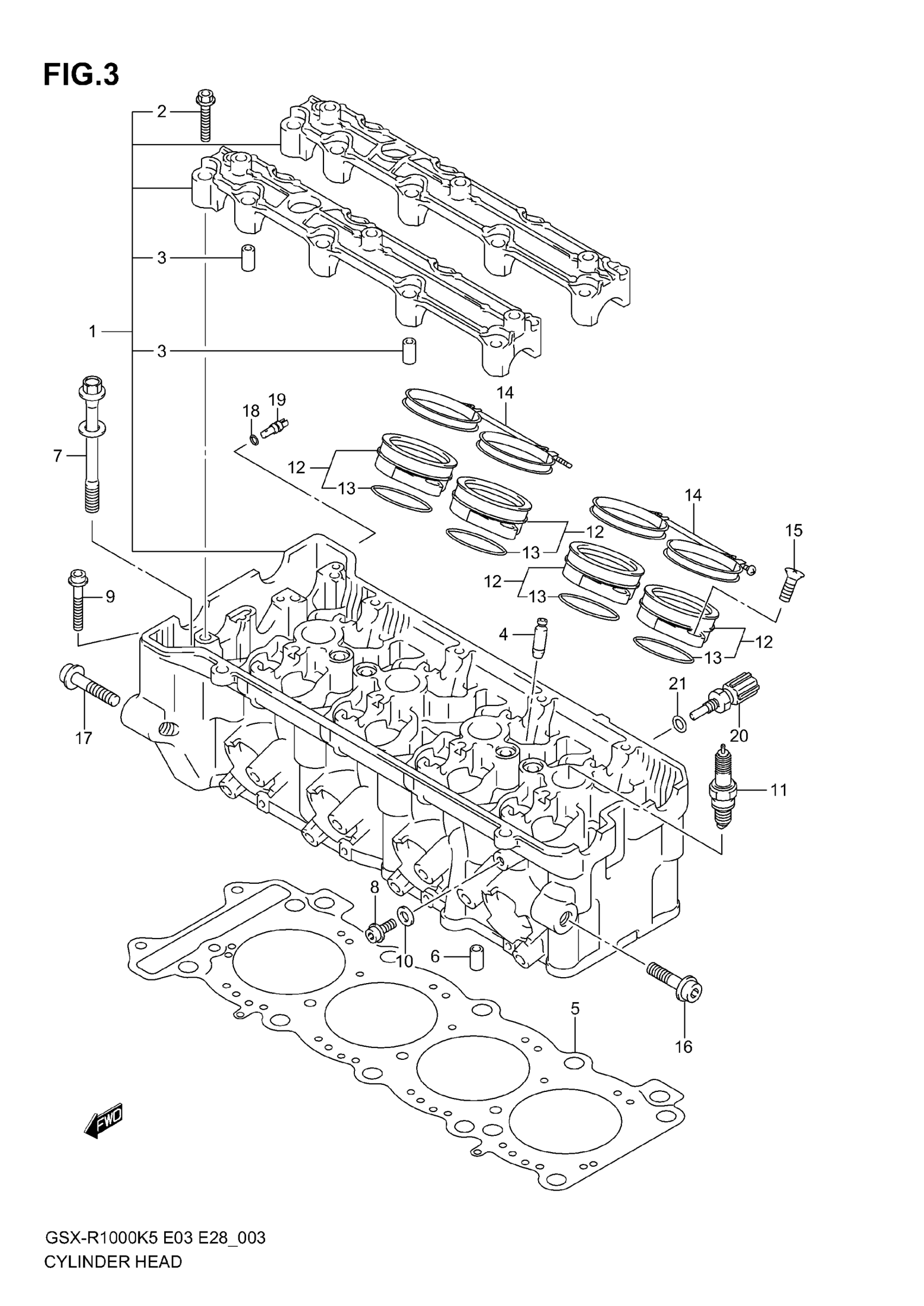

Suzuki GSX-R1000 (2006) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-41G00

Unavailable

2

BOLT

09103-06266

$2.19

3

PIN

09206-08007

$2.73

4

GUIDE, VALVE (OS 0.3) | OPT

11115-29G70

$32.35

5

GASKET, CYLINDER HEAD

11141-40F00

$85.60

6

PIN

04211-11169

$1.82

7

BOLT

11117-30G00

$8.91

8

BOLT, OIL GALLERY

09103-06222

$2.35

9

BOLT, RECTIFIER This part replaces 07120-06503.

07120-0650B

$3.32

10

GASKET

09168-06023

$2.09

11

PLUG SPARK (CR9E)

09482-00458

$5.92

11

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$5.79

11

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.17

11

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$5.92

11

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$5.79

11

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$12.00

12

PIPE, INTAKE | Includes Item(s) 13

13101-41G00

Unavailable

13

O RING

09280-48010

$9.16

14

CLAMP

13170-41G00

$33.67

15

SCREW This part replaces 02122-06163.

02122-0616A

$1.46

16

BOLT, ENG MOUNTING HEAD (10X45)

09106-10069

$3.93

17

BOLT, ENG MOUNTING HEAD (10X55)

09106-10070

$3.93

18

O RING

09280-04004

$1.76

19

JET, OIL

09493-80005

$17.57

20

SENSOR, WATER TEMPERATURE

13650-10G00

$83.45

21

GASKET

09168-12017

$2.01
