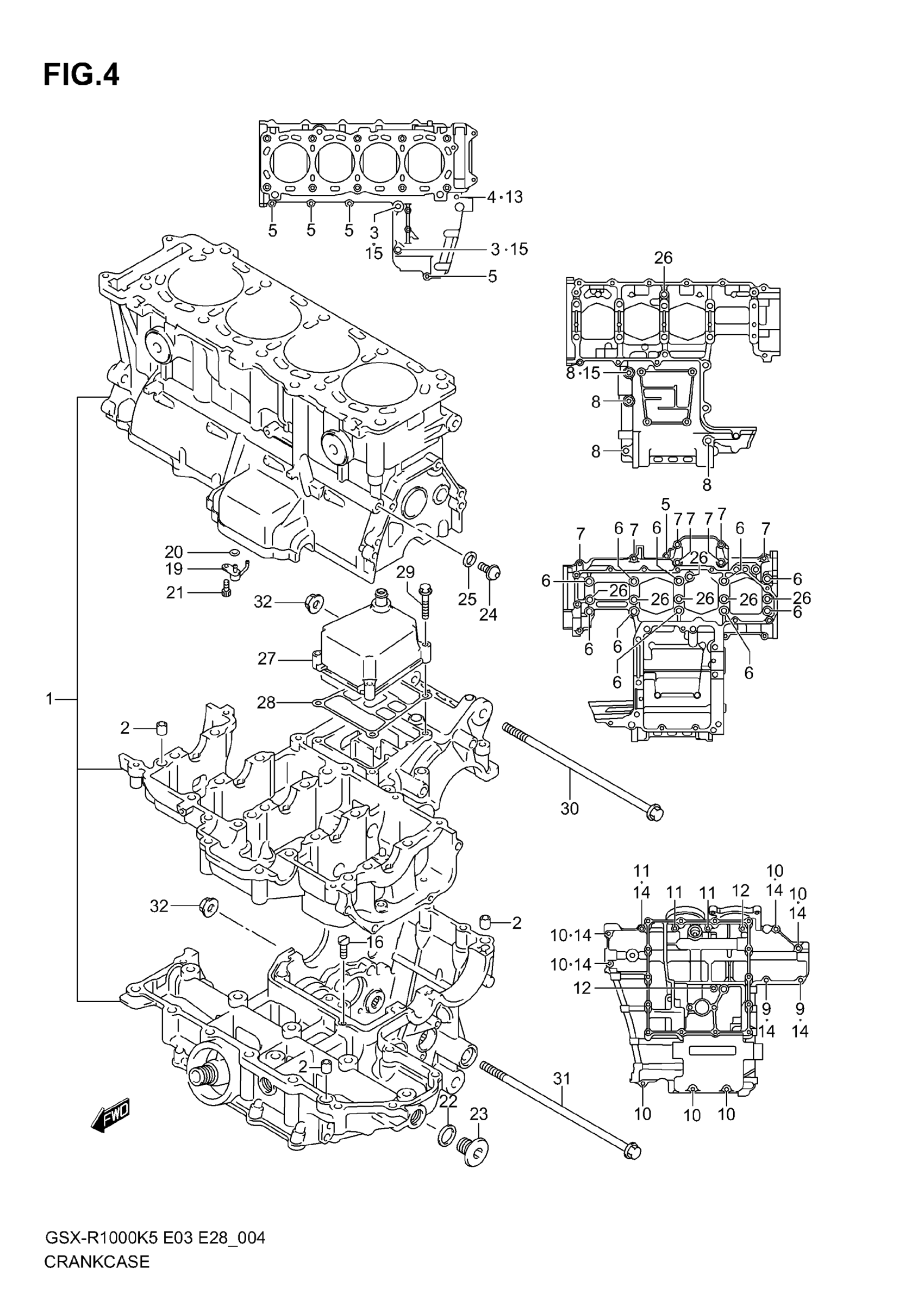

Find the part on the Crankcase diagram for your 2006 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GSX-R1000 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET | Includes Item(s) 2 - 18 This part replaces 11302-41810.

11302-41811

1
Out of stock

2

PIN,CRANKCASE

11319-33E50

6
Out of stock

3

BOLT (8X120)

09106-08139

2
Out of stock

4

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

5

BOLT This part replaces 01547-06403.

01547-0640B

5
Out of stock

6

BOLT (9X95)

09103-09012

10
Out of stock

7

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

7
Out of stock

8

BOLT This part replaces 07120-08653.

07120-0865B

4
Out of stock

9

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

2
Out of stock

10

BOLT This part replaces 01547-06403.

01547-0640B

7
Out of stock

11

BOLT This part replaces 01547-06603.

01547-0660B

3
Out of stock

12

BOLT This part replaces 01547-06703.

01547-0670B

2
Out of stock

13

BOLT This part replaces 01547-06803.

01547-0680B

1
Out of stock

14

GASKET (5.8X13X1.2)

09168-06023

7
Out of stock

15

GASKET (8.2X14X1)

09168-08016

3
Out of stock

16

JET

09493-28012

1
Out of stock

17

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.7

12228-48B00-0E0

1
Out of stock

18

BEARING, THRUST LH (BROWN) | SEE ILLUSTRATION ON FIG.7

12228-48B00-0B0

1
Out of stock

18

BEARING, THRUST LH (RED)

12228-48B00-0C0

1
Out of stock

18

BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

1
Out of stock

18

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

1
Out of stock

18

BEARING, THRUST LH (BLUE)

12228-48B00-0F0

1
Out of stock

18

BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

1
Out of stock

18

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

1
Out of stock

19

JET,PISTON COOLING

11390-35F00

4
Out of stock

20

O RING (D:1.2,ID:4.0)

09280-04004

4
Out of stock

21

BOLT, PISTON COOLING

09106-06075

4
Out of stock

22

GASKET

09168-16002

4
Out of stock

23

PLUG, OIL GALLERY

09248-16013

4
Out of stock

24

PLUG, OIL GALLERY UPPER LH

09248-10010

1
Out of stock

25

GASKET, OIL GALLERY LH

09168-10002

1
Out of stock

26

O RING (D:1.9,ID:7.8)

09280-08012

7
Out of stock

27

COVER, BREATHER

11370-35F00

1
Out of stock

28

GASKET, BREATHER COVER

11484-35F00

1
Out of stock

29

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

4
Out of stock

30

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

1
Out of stock

31

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

1
Out of stock

32

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

2
Out of stock
