2004 Suzuki GSX-R1000 Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 2004 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

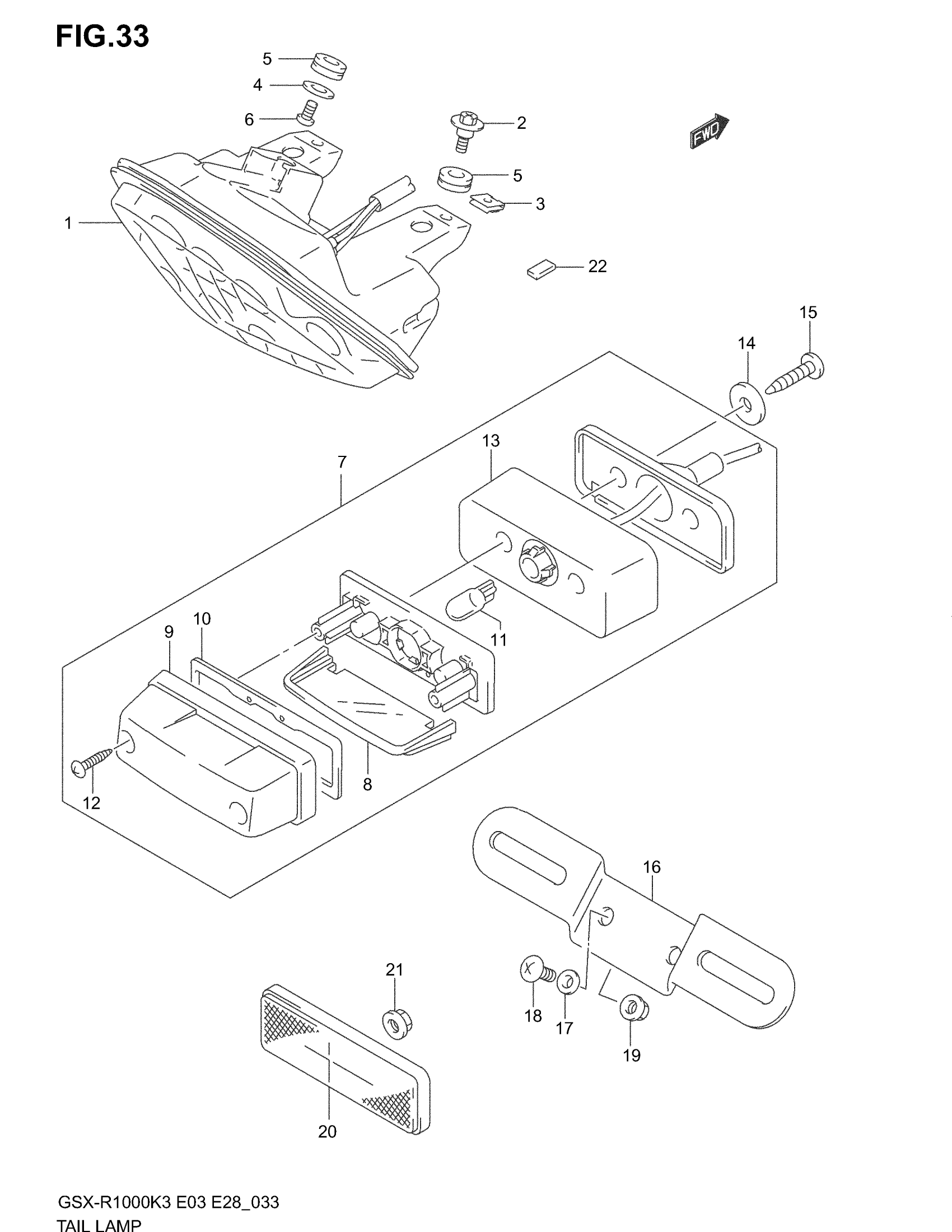

2004 Suzuki GSX-R1000 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,REAR This part replaces 35710-18G30.

35710-18G31

1
Out of stock

2

SCREW

09139-06118

2
Out of stock

3

NUT

09148-06015

2
Out of stock

4

WASHER (5.5X20X1.2)

09160-05501

1
Out of stock

5

CUSHION

09320-10049

3
Out of stock

6

1

$1.55

In stock

7

LAMP ASSY,LICENSE | Includes Item(s) 8 - 13 This part replaces 35910-16G30.

35910-16G31

1
Out of stock

8

.LENS This part replaces 35912-16G00.

35912-16G01

1
Out of stock

9

COVER

35917-16G00

1
Out of stock

10

GASKET

35913-16G00

1
Out of stock

11

.BULB (12V5W)

09471-12216

1
Out of stock

12

2

$1.54

In stock

13

SPACER

35978-16G30

1
Out of stock

14

WASHER, LICENSE LAMP

09160-05501

2
Out of stock

15

2

$3.12

In stock

16

BRACKET, LICENSE PLATE

35927-18G00

1
Out of stock

17

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

18

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

19

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

20

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

1
Out of stock

21

NUT This part replaces 08316-10053.

08316-1005A

1
Out of stock

22

CUSHION, REAR COMB

33652-18G00

1
Out of stock
