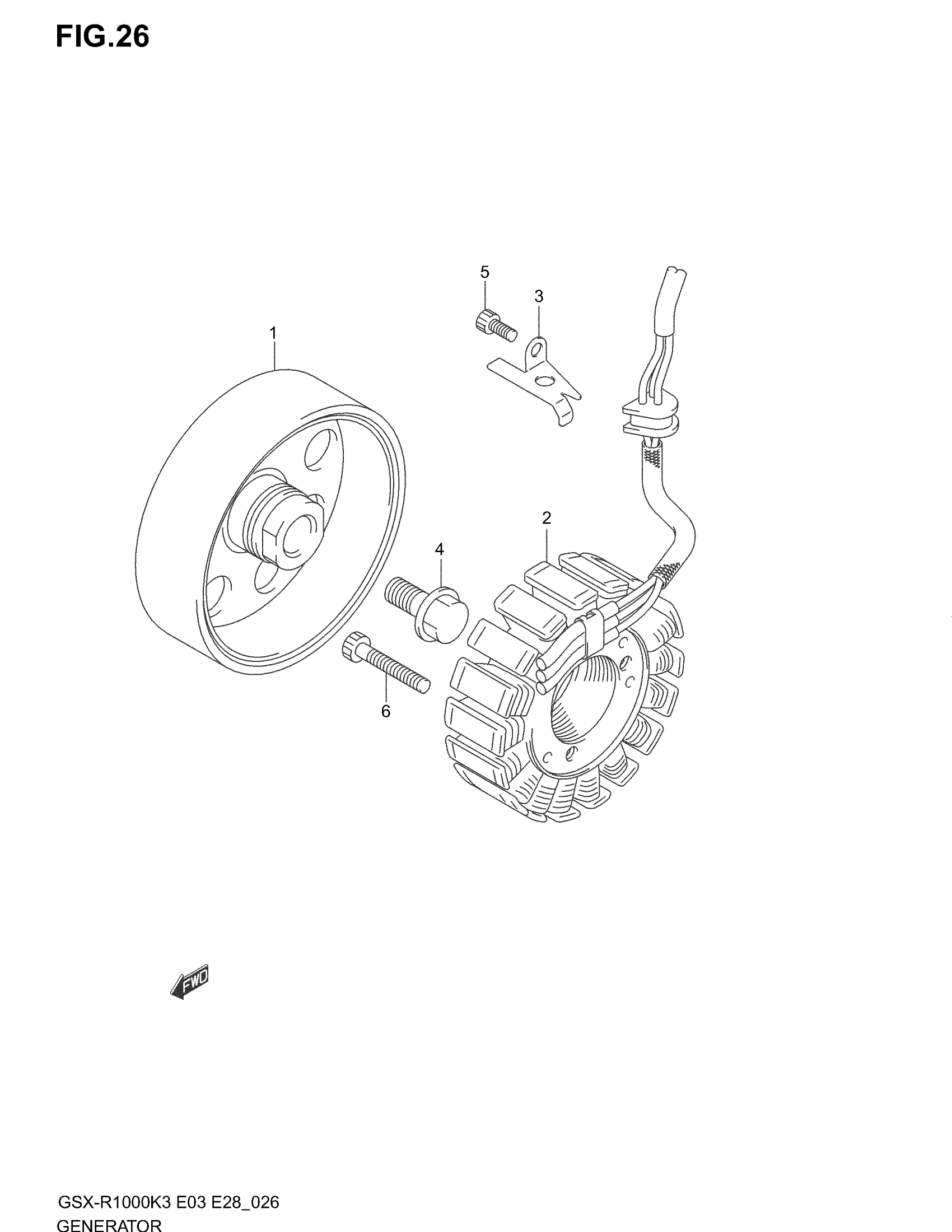

Suzuki GSX-R1000 (2004) GENERATOR Diagram

#

Description

Price

1

ROTOR ASSY

31402-40F00

Unavailable

2

STATOR ASSY

31401-18G00

$458.60

3

CLAMP, MAG LEAD

32371-33E00

$6.07

4

BOLT (12X23)

09103-12005

$7.67

5

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

6

BOLT This part replaces 07130-06353.

07130-0635B

$3.04
