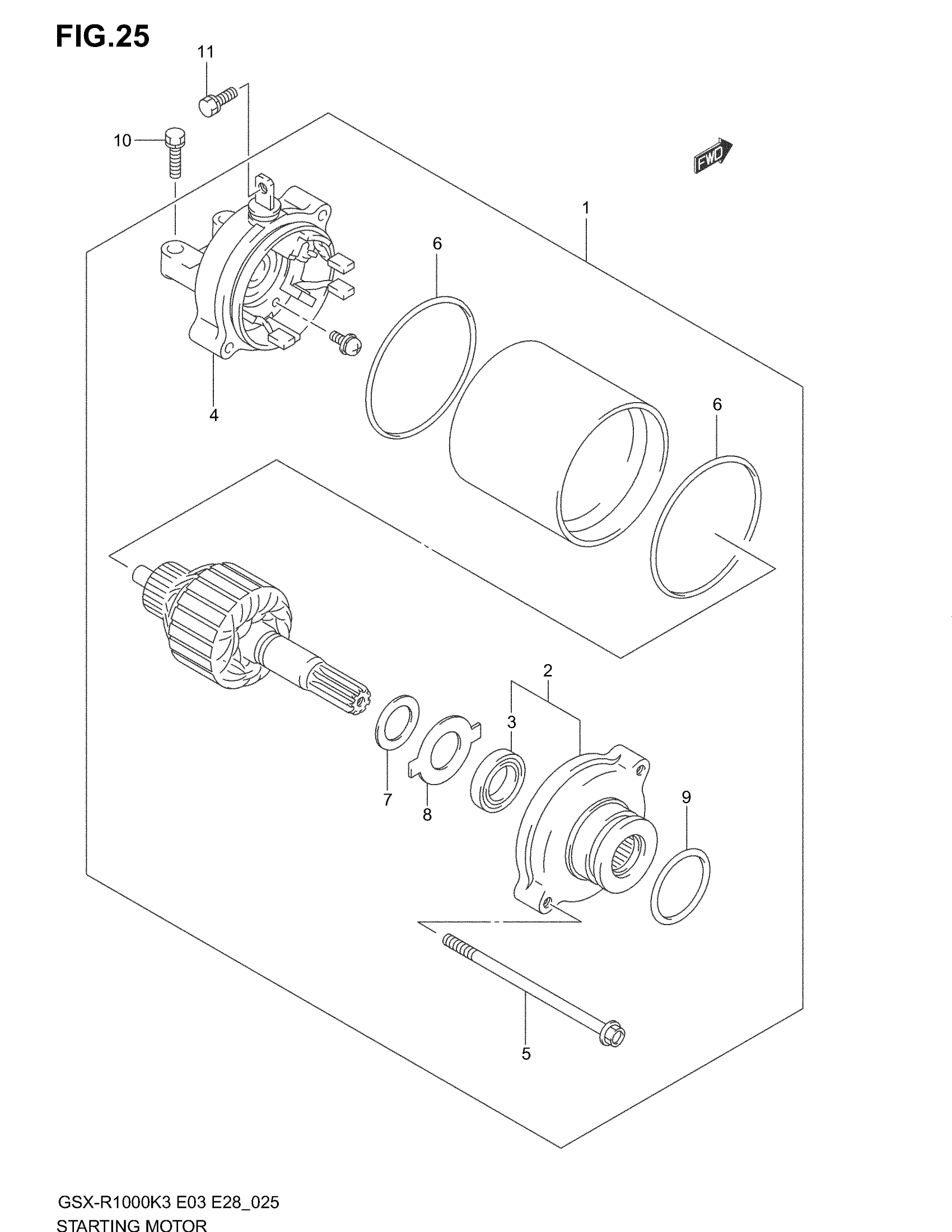

Suzuki GSX-R1000 (2004) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 9

31100-40F00

$737.37

2

HOUSING ASSY This part replaces 31150-40F00.

31150-40F01

$129.27

3

OIL SEAL

31153-49210

$27.32

4

FRAME ASSY This part replaces 31175-40F00.

31175-40F01

$169.70

5

BOLT

31281-40F00

$11.37

6

O RING

31264-32C10

$16.03

7

WASHER, PLATE

31361-38300

$2.25

8

PLATE, LOCK

31361-32C10

Unavailable

9

.O-RING (D:3,ID:24.5)

09280-24003

$1.61

10

BOLT This part replaces 09128-06006.

09128-06057

$1.70

11

SCREW (5X8)

09137-05004

$2.50
