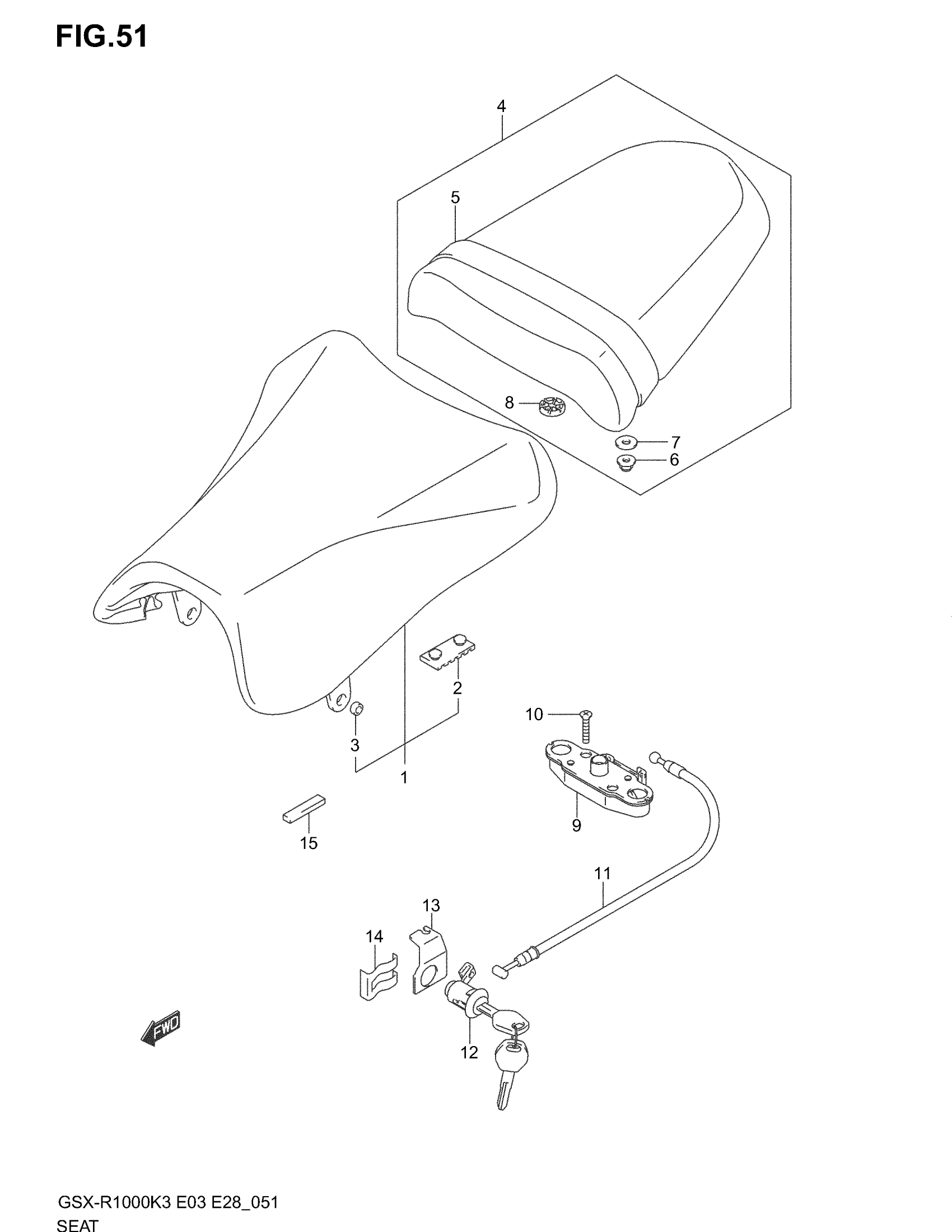

Find the part on the Seat diagram for your 2004 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki GSX-R1000 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-18G00-6BY.

45100-18G01-6BY

1
Out of stock

2

CUSHION

45149-12C00

2

$7.48

In stock

3

SPACER (6.5X10.5X6)

45112-33E00

2
Out of stock

4

SEAT ASSY,PILLI | Includes Item(s) 5 - 8 This part replaces 45300-18G00-6BY.

45300-18G01-6BY

1
Out of stock

5

BAND ASSY, SEAT (BLACK)

45180-18G00-6BY

1
Out of stock

6

NUT This part replaces 08319-31063.

08319-3106A

2
Out of stock

7

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

8

CUSHION

45213-31300

2
Out of stock

9

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

10

SCREW This part replaces 02122-06303.

02122-0630B

2
Out of stock

11

CABLE, SEAT LOCK This part replaces 45280-18G00.

45280-18G01

1
Out of stock

12

LOCK ASSY, SEAT

95700-14810

1
Out of stock

13

GUIDE, SEAT LOCK CABLE

45288-14F00

1
Out of stock

14

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock

15

CUSHION, SEAT SUPPORT

45148-18G00

2
Out of stock
