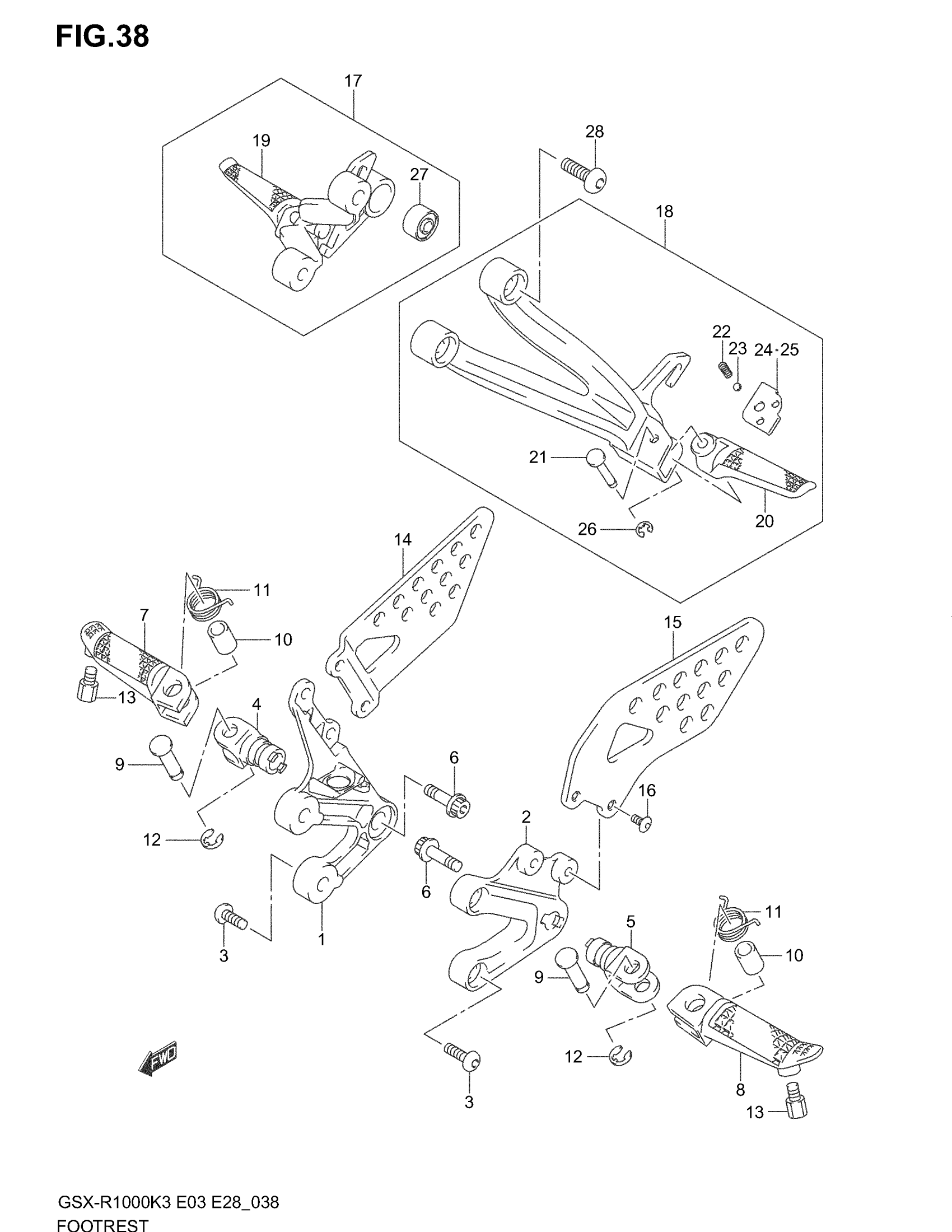

Find the part on the Footrest diagram for your 2004 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki GSX-R1000 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST RH

43511-18G00

1
Out of stock

2

BRACKET, FRONT FOOTREST LH

43521-18G00

1
Out of stock

3

BOLT, BRACKET

09106-08150

4
Out of stock

4

HOLDER, FOOTREST RH

43530-35F10

1
Out of stock

5

HOLDER, FOOTREST LH

43540-35F10

1
Out of stock

6

BOLT, HOLDER

09106-10064

2
Out of stock

7

BAR, FRONT FOOTREST RH

43516-35F00

1
Out of stock

8

BAR, FRONT FOOTREST LH

43526-35F00

1
Out of stock

9

PIN

09208-08014

2
Out of stock

10

SPACER

09180-08149

2
Out of stock

11

SPRING

09448-18022

2
Out of stock

12

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock

13

.BOLT,BANK SENSOR

43576-07D01

2
Out of stock

14

GUARD, FOOTREST RH

43571-18G00

1
Out of stock

15

GUARD, FOOTREST LH

43576-18G00

1
Out of stock

16

SCREW, GUARD LH

09139-05067

2
Out of stock

17

FOOTREST ASSY, PILLION RH

43600-18G00

1
Out of stock

18

FOOTREST ASSY, PILLION LH | Includes Item(s) 19 - 27

43700-18G00

1
Out of stock

19

BAR, PILLION RH

43611-35F01

1
Out of stock

20

BAR, PILLION LH

43621-35F01

1
Out of stock

21

PIN

87259-85510

2

$5.33

In stock

22

SPRING

09440-05005

2
Out of stock

23

BALL

06111-07004

2
Out of stock

24

PLATE, RH

43816-33E21

1
Out of stock

25

PLATE, LH

43826-33E22

1
Out of stock

26

E RING This part replaces 08332-11043.

08332-1104A

2
Out of stock

27

BUSH This part replaces 09319-08028.

09319-08052

1
Out of stock

28

BOLT, BRACKET

09106-08150

4
Out of stock
